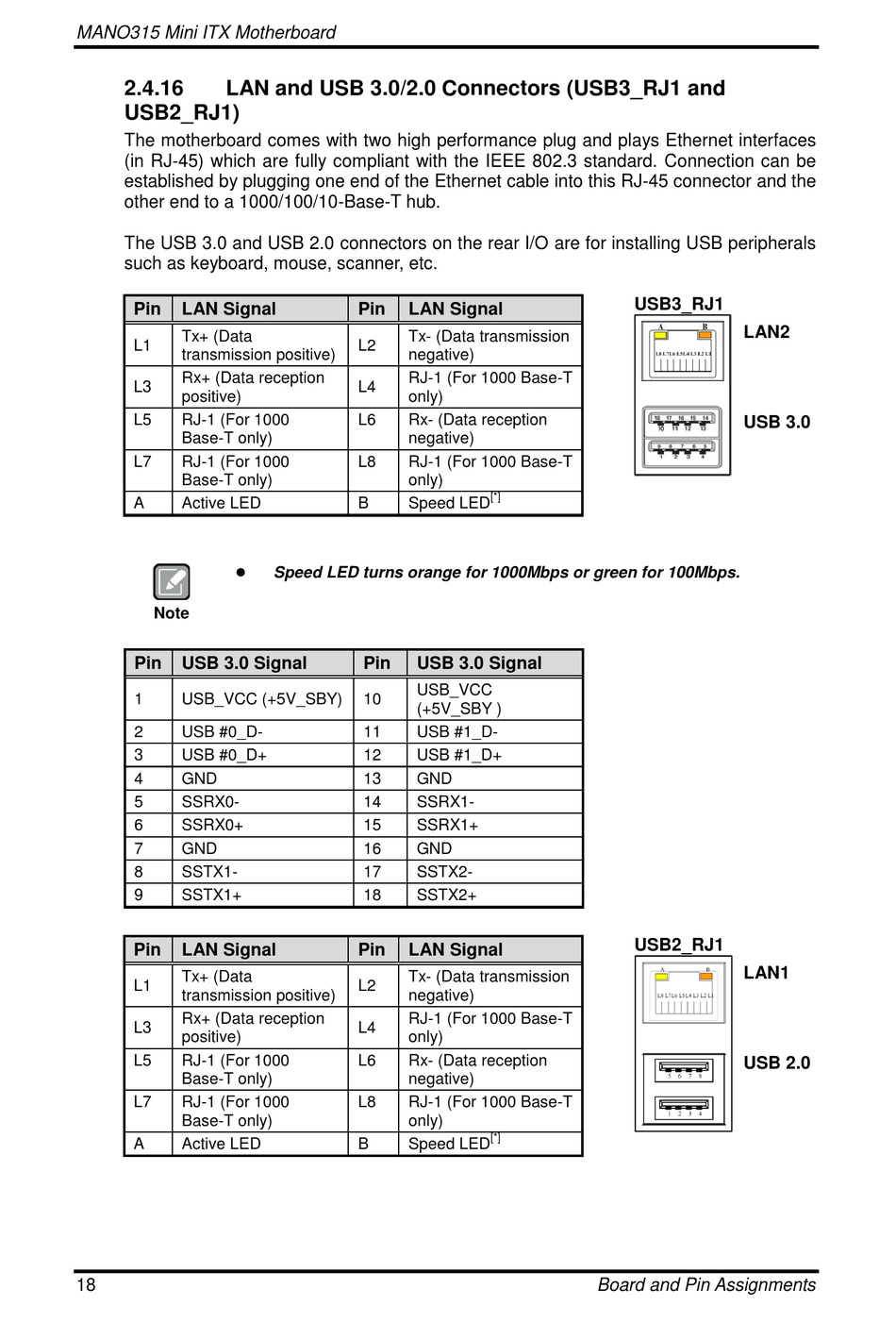

MANO315 Mini ITX Motherboard
2.4.16
LAN and USB 3.0/2.0 Connectors (USB3_RJ1 and
USB2_RJ1)
The motherboard comes with two high performance plug and plays Ethernet interfaces
(in RJ-45) which are fully compliant with the IEEE 802.3 standard. Connection can be
established by plugging one end of the Ethernet cable into this RJ-45 connector and the
other end to a 1000/100/10-Base-T hub.
The USB 3.0 and USB 2.0 connectors on the rear I/O are for installing USB peripherals
such as keyboard, mouse, scanner, etc.
Pin
LAN Signal
Tx+ (Data
L1
transmission positive)
Rx+ (Data reception
L3
positive)
L5
RJ-1 (For 1000
Base-T only)
L7
RJ-1 (For 1000
Base-T only)
A
Active LED
Note
Pin
USB 3.0 Signal
1
USB_VCC (+5V_SBY)
2
USB #0_D-
3
USB #0_D+
4
GND
5
SSRX0-
6
SSRX0+
7
GND
8
SSTX1-
9
SSTX1+
Pin
LAN Signal
Tx+ (Data
L1
transmission positive)
Rx+ (Data reception
L3
positive)
L5
RJ-1 (For 1000
Base-T only)
L7
RJ-1 (For 1000
Base-T only)
A
Active LED
18
Pin
LAN Signal
Tx- (Data transmission
L2
negative)
RJ-1 (For 1000 Base-T
L4
only)
L6
Rx- (Data reception
negative)
L8
RJ-1 (For 1000 Base-T
only)
B
Speed LED
Speed LED turns orange for 1000Mbps or green for 100Mbps.
Pin
USB 3.0 Signal
USB_VCC
10
(+5V_SBY )
11
USB #1_D-
12
USB #1_D+
13
GND
14
SSRX1-
15
SSRX1+
16
GND
17
SSTX2-
18
SSTX2+
Pin
LAN Signal
Tx- (Data transmission
L2
negative)
RJ-1 (For 1000 Base-T
L4
only)
L6
Rx- (Data reception
negative)
L8
RJ-1 (For 1000 Base-T
only)
B
Speed LED
USB3_RJ1
[*]
USB2_RJ1
[*]
Board and Pin Assignments
LAN2
USB 3.0
LAN1
USB 2.0
