MANO526 Mini ITX Motherboard
1.2

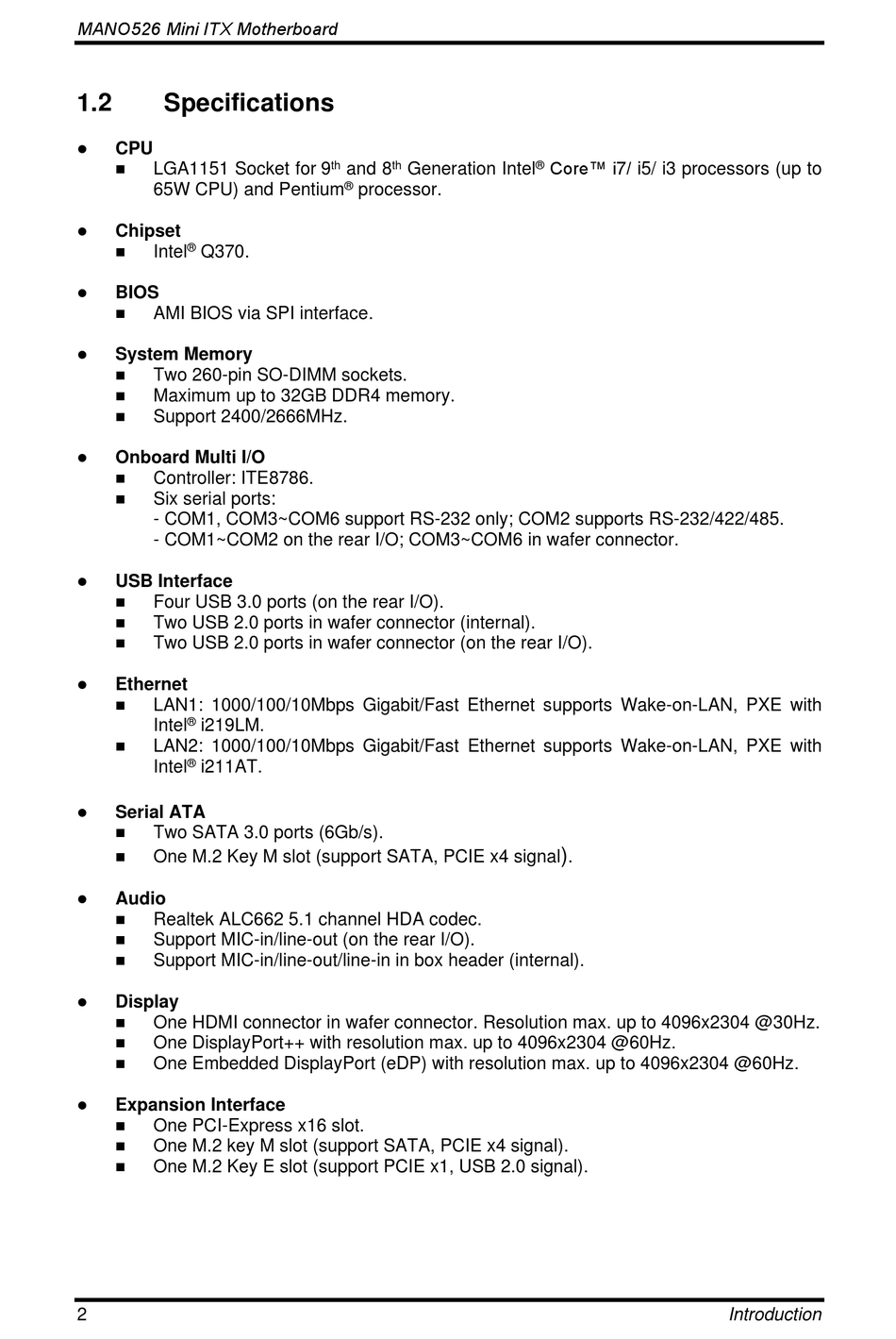

Specifications

⚫
CPU
◼ LGA1151 Socket for 9
65W CPU) and Pentium
⚫ Chipset
®
◼ Intel Q370.
⚫ BIOS
◼ AMI BIOS via SPI interface.
⚫ System Memory
◼ Two 260-pin SO-DIMM sockets.
◼ Maximum up to 32GB DDR4 memory.
◼
Support 2400/2666MHz.
⚫ Onboard Multi I/O
◼ Controller: ITE8786.
◼ Six serial ports:
- COM1, COM3~COM6 support RS-232 only; COM2 supports RS-232/422/485.
- COM1~COM2 on the rear I/O; COM3~COM6 in wafer connector.
⚫ USB Interface
◼ Four USB 3.0 ports (on the rear I/O).
◼ Two USB 2.0 ports in wafer connector (internal).
◼ Two USB 2.0 ports in wafer connector (on the rear I/O).
⚫
Ethernet
◼ LAN1: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with
®
Intel i219LM.
◼ LAN2: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with
®
Intel i211AT.
⚫ Serial ATA
◼ Two SATA 3.0 ports (6Gb/s).
◼ One M.2 Key M slot (support SATA, PCIE x4 signal
⚫ Audio
◼
Realtek ALC662 5.1 channel HDA codec.
◼ Support MIC-in/line-out (on the rear I/O).
◼ Support MIC-in/line-out/line-in in box header (internal).
⚫ Display
◼ One HDMI connector in wafer connector. Resolution max. up to 4096x2304 @30Hz.
◼
One DisplayPort++ with resolution max. up to 4096x2304 @60Hz.
◼
One Embedded DisplayPort (eDP) with resolution max. up to 4096x2304 @60Hz.
⚫ Expansion Interface
◼ One PCI-Express x16 slot.
◼ One M.2 key M slot (support SATA, PCIE x4 signal).
◼ One M.2 Key E slot (support PCIE x1, USB 2.0 signal).
2
th th
and 8 Generation Intel
®
processor.
Core™ i7/ i5/ i3 processors (up to
®
)
.
Introduction
