  • Page 1 MANO310 Series ® ® ® Intel Pentium N4200/ Celeron N3350 Processor Mini ITX Motherboard User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

    It discharges static electricity from your body.  Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® ® Intel and Celeron are trademarks of Intel Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ...................... ii ESD Precautions ..................... iii Chapter 1 Introduction ..........1 Features ....................1 Specifications ..................2 Utilities Supported ................. 3 Block Diagram ..................4 Chapter 2 Board and Pin Assignments ....5 Board Layout ..................5 Rear I/O ....................
  • Page 5 2.4.19 LVDS Connector (CN27) ................22 2.4.20 LVDS Backlight Control Connector (CN28)..........23 2.4.21 VGA Connector (CN30) ................23 2.4.22 DC Jack Power Input Connector (CN31) ..........23 2.4.23 SATA 3.0 Connector (CN32) ..............24 2.4.24 SATA Power Connector (CN33) ..............24 2.4.25 eDP Connector (CN35) (Optional) ............
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

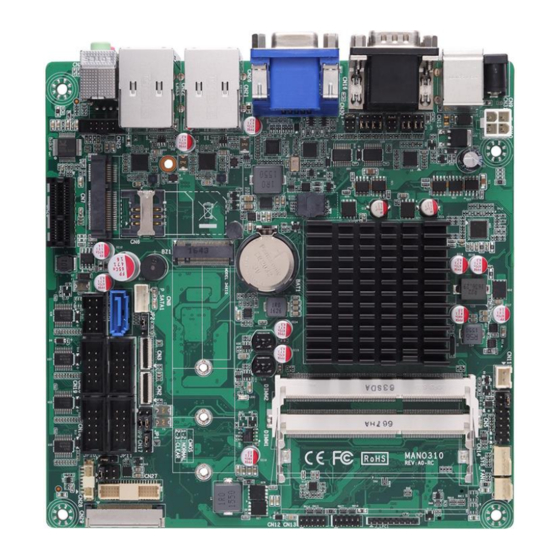

    MANO310 Mini ITX Motherboard Chapter 1 Introduction ® ® ® The MANO310 is a Mini ITX board based on Intel Pentium N4200/ Celeron N3350 processor. It delivers outstanding system performance through high-bandwidth interfaces, multiple I/O functions for interactive applications and various embedded computing solutions. There are two 204-pin DDR3L SO-DIMM sockets for DDR3L 1866MHz memory with maximum capacity up to 8GB.

  • Page 8: Specifications

    MANO310 Mini ITX Motherboard Specifications  ® ®  Intel Pentium quad core N4200 1.1GHz up to 2.5GHz. ® ®  Intel Celeron dual core N3350 1.1GHz up to 2.4GHz.  Chipset  SoC integrated.  BIOS  AMI BIOS. ...

  • Page 9: Utilities Supported

    MANO310 Mini ITX Motherboard  Expansion Interface  One PCI-Express x1 slot.  One PCI-Express Mini Card.  One SIM card slot.   One SD card slot.  Power Input  One 12V~24V 4-pin ATX power input connector.  One 12V~24V DC jack power input connector.

  • Page 10: Block Diagram

    MANO310 Mini ITX Motherboard Block Diagram Introduction...

  • Page 11: Board And Pin Assignments

    MANO310 Mini ITX Motherboard Chapter 2 Board and Pin Assignments Board Layout Top View Board and Pin Assignments...
  • Page 12 MANO310 Mini ITX Motherboard Bottom View Board and Pin Assignments...

  • Page 13: Rear I/O

    MANO310 Mini ITX Motherboard Rear I/O Front Audio Connector (CN25) PCI-Express Mini Card Connector (CN7) AT/ATX Power Mode Select Jumper PCI-Express x1 Slot (CN23) (JP2) SATA Power Connector (CN33) SATA 3.0 Connector (CN32) Internal USB 2.0 Connector (CN1) eDP Connector (CN35) (Optional) Internal COM3~COM6 Connectors DDR3L SO-DIMM Connectors (CN17~CN20)
  • Page 14 MANO310 Mini ITX Motherboard To identify the first pin of a header or jumper, please refer to the following information:  Usually, there is a thick line or a triangle near the header or jumper pin 1. Note  Square pad, which you can find on the back of the motherboard, is usually used for pin 1.

  • Page 15: Jumper Settings

    And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper. Before applying power to MANO310 Series, please make sure all of the jumpers are in factory default position. Below you can find a summary table of all jumpers and onboard default settings.

  • Page 16: Clear Cmos (Jp1)

    MANO310 Mini ITX Motherboard 2.3.1 Clear CMOS (JP1) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which includes system setup information such as system passwords.

  • Page 17: Com2 Rs-232/422/485 Mode Select (Jp6, Jp7, Jp8)

    MANO310 Mini ITX Motherboard 2.3.4 COM2 RS-232/422/485 Mode Select (JP6, JP7, JP8) Use these jumpers (3x2-pin pitch=2.54mm) to set COM2 port to operate as RS-232, RS-422 or RS-485 communication mode. Function Setting JP6 1-2 close RS-232 mode JP7 3-5, 4-6 close (Default) JP8 3-5, 4-6 close JP6 3-4 close...

  • Page 18: Connectors

    MANO310 Mini ITX Motherboard Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, please make sure all connectors are properly and firmly connected. Here is a summary table showing connectors on the hardware. Connector Description Internal USB 2.0 Connector...

  • Page 19: Internal Usb 2.0 Connector (Cn1)

    MANO310 Mini ITX Motherboard 2.4.1 Internal USB 2.0 Connector (CN1) This is a 5x2-pin (pitch=2.54mm) connector for USB 2.0 interface. Signal Signal USB1- USB2- USB1+ USB2+ 2.4.2 Micro SD Card Slot (CN4) The micro Secure Digital (SD) is a flash memory card format used in portable device including notebook and digital camera.

  • Page 20: Front Panel Connector (Cn5)

    MANO310 Mini ITX Motherboard 2.4.3 Front Panel Connector (CN5) This is a 7x2-pin (pitch=2.54mm) connector for front panel interface. Signal Power LED+ SPK- BUZZER Power LED- SPK+ PWR- PWR+ RESET- RESET+ HD LED- HD LED+ Power LED Pin 1 connects anode(+) of LED and pin 5 connects cathode(-) of LED. The power LED lights up when the system is powered on.

  • Page 21: Sim Card Socket (Cn6)

    MANO310 Mini ITX Motherboard 2.4.4 SIM Card Socket (CN6) The motherboard has CN6 socket for inserting SIM Card. In order to work properly, the SIM Card must be used together with 3G module which is inserted to CN7. It is mainly used in 3G wireless network application.

  • Page 22: Key B Slot (Cn8)

    MANO310 Mini ITX Motherboard 2.4.6 M.2 Key B Slot (CN8) The motherboard comes with one M.2 Key B slot suitable for mounting SATA storage card. Signal Signal Signal +3.3V UIM_VPP +3.3V UIM_RST USB_D+ UIM_CLK USB_D- UIM_DAT UIM_PWR SATA_RX_D- SATA_RX_D- OC_PE/ GND_SATA +3.3V GND_WAN/...

  • Page 23: Dc Power Input Connector (Cn10)

    MANO310 Mini ITX Motherboard 2.4.7 DC Power Input Connector (CN10) This is a 4-pin ATX connector for DC-IN power input. External power supply plug fits into this connector in only one orientation. Properly press down power supply plug until it completely and firmly fits into this connector.

  • Page 24: Fan Connectors (Cn14 And Cn34)

    MANO310 Mini ITX Motherboard CN13 Signal Signal SIO_GPI87 (0xA07, Bit0, L) SIO_GPO83 SIO_GPI86 (0xA07, Bit4, L) (0xA07, Bit1, L) SIO_GPO82 SIO_GPI85 (0xA07, Bit5, L) (0xA07, Bit2, L) SIO_GPO81 SIO_GPI84 (0xA07, Bit6, L) (0xA07, Bit3, L) SIO_GPO80 (0xA07, Bit7, L) : “H” or “L” means the default voltage is High or Low level, and GPIO output is 5V.

  • Page 25: Ps/2 Keyboard And Mouse Connector (Cn15)

    MANO310 Mini ITX Motherboard 2.4.11 PS/2 Keyboard and Mouse Connector (CN15) The motherboard has two 6-pin mini-DIN PS/2 connectors; green for mouse and purple for keyboard. Signal Signal K/B Data M/S Data K/B CLK M/S CLK 2.4.12 COM Connector (CN16) The CN16 is a double-deck 9-pin D-Sub connector for COM1 and COM2 port interfaces.

  • Page 26: Lan And Usb 3.0 Connectors (Cn21 And Cn22)

    MANO310 Mini ITX Motherboard 2.4.14 LAN and USB 3.0 Connectors (CN21 and CN22) The motherboard comes with two high performance plug and play Ethernet interfaces (RJ-45) which are fully compliant with the IEEE 802.3 standard. Connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end to a 1000/100/10-Base-T hub.

  • Page 27: Pci-Express X1 Slot (Cn23)

    MANO310 Mini ITX Motherboard 2.4.15 PCI-Express x1 Slot (CN23) This motherboard has one PCI-Express x1 slot. Signal Signal +12V PRSNT1# +12V +12V RSVD +12V SMCLK SMDAT +3.3V +3.3V 3.3Vaux +3.3V WAKE# PERST# REFCLK+ HSOP0 REFCLK- HSON0 HSIP0 HSIN0 2.4.16 Audio Jack (CN24) The motherboard provides HD audio jack on the rear I/O.

  • Page 28: Hdmi Connector (Cn26)

    MANO310 Mini ITX Motherboard 2.4.18 HDMI Connector (CN26) The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of transmitting high-definition video and high-resolution audio over a single cable. Signal Signal HDMI OUT_DATA2+ HDMI OUT_DATA2- HDMI OUT_DATA1+ HDMI OUT_DATA1- HDMI OUT_DATA0+ HDMI OUT_DATA0-...

  • Page 29: Lvds Backlight Control Connector (Cn28)

    MANO310 Mini ITX Motherboard 2.4.20 LVDS Backlight Control Connector (CN28) This is an 8-pin (pitch=1.25mm) connector which is compliant with Hirose DF13-8P-1.25V for inverter. We strongly recommend you to use the matching connector, DF13-8S-1.25C, to avoid malfunction. Pin 8 can be set control mode by setting JP10 (see section 2.3.6).

  • Page 30: Sata 3.0 Connector (Cn32)

    MANO310 Mini ITX Motherboard 2.4.23 SATA 3.0 Connector (CN32) This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus interface for connecting to devices such as hard disk drive. Signal SATA_TX+ SATA_TX-...

  • Page 31: Edp Connector (Cn35) (Optional)

    MANO310 Mini ITX Motherboard 2.4.25 eDP Connector (CN35) (Optional) The embedded DisplayPort (eDP) interface is available through 40-pin connector (CN35), which is compliant with IPEX-20143. The eDP is a design to replace internal digital LVDS links in computer monitor panels and TV panels. Signal Signal EMB_HPD...
  • Page 32 MANO310 Mini ITX Motherboard This page is intentionally left blank. Board and Pin Assignments...

  • Page 33: Chapter 3 Hardware Description

    MANO310 Mini ITX Motherboard Chapter 3 Hardware Description Microprocessors ® ® ® The MANO310 supports Intel Pentium N4200/ Celeron N3350 processors, which enable ® ® ® your system to operate under Windows 7, Windows 8.1, Windows 10 and Linux environments. The system performance depends on the microprocessor. Make sure all correct settings are arranged for your installed microprocessor to prevent the CPU from damages.
  • Page 34 MANO310 Mini ITX Motherboard This page is intentionally left blank. Hardware Description...

  • Page 35: Ami Bios Setup Utility

    MANO310 Mini ITX Motherboard Chapter 4 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.
  • Page 36 MANO310 Mini ITX Motherboard Hot Keys Description  Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or sub  Up/Down screen. The <Enter>...

  • Page 37: Main Menu

    MANO310 Mini ITX Motherboard Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 38: Advanced Menu

    MANO310 Mini ITX Motherboard Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 39 MANO310 Mini ITX Motherboard  Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 40 MANO310 Mini ITX Motherboard  Serial Port 1~6 Configuration Serial Port Enable or disable serial port 1~6. The optimal settings for base I/O address and for interrupt request address are: Serial port 1: 3F8h, IRQ4 Serial port 2: 2F8h, IRQ5 Serial port 3: 3E8h, IRQ6 Serial port 4: 2E8h, IRQ7 Serial port 5: 2F0h, IRQ10...
  • Page 41 MANO310 Mini ITX Motherboard  Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (+5V standby, +3.3V, +12V, +5V, and +3.3V standby). AMI BIOS Setup Utility...
  • Page 42 MANO310 Mini ITX Motherboard  Smart Fan Function This screen allows you to select CPU fan and system fan mode. CPU_Fan\System Fan Mode This item allows you to select CPU fan\System fan mode: Full On, Automatic Mode or Manual Mode. Full On: The fan always runs at full speed.
  • Page 43 MANO310 Mini ITX Motherboard  ACPI Settings You can use this screen to select options for the ACPI configuration. ACPI Sleep State Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration options are Suspend Disabled and S3 (Suspend to RAM). The default setting is S3 (Suspend to RAM);...
  • Page 44 MANO310 Mini ITX Motherboard  CPU Configuration This screen shows the CPU information, and you can change the value of the selected option. Intel Virtualization Technology Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine Mode) can utilize the additional hardware capabilities. It allows a platform to run multiple operating systems and applications independently, hence enabling a computer system to work as several virtual systems.
  • Page 45 MANO310 Mini ITX Motherboard  SATA Configuration During system boot up, BIOS automatically detects the presence of SATA devices. In SATA Configuration menu, you can see the current installed hardware in SATA ports. Chipset SATA Enable or disable Chipset SATA Controller. The default is Enable. SATA Mode Selection The SATA mode is AHCI.
  • Page 46 MANO310 Mini ITX Motherboard  USB Configuration USB Devices Display all detected USB devices. Mass Storage Devices Mass storage device emulation type. Auto option enumerates devices according to their media format. Optical drives are emulated as CDROM, drives with no media will be emulated according to a drive type.
  • Page 47 MANO310 Mini ITX Motherboard  Utility Configuration BIOS Flash Utility BIOS flash utility configuration. For more detailed information, please refer to Appendix C. AMI BIOS Setup Utility...

  • Page 48: Chipset Menu

    MANO310 Mini ITX Motherboard Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► North Bridge ►...
  • Page 49 MANO310 Mini ITX Motherboard  North Bridge This screen allows users to configure parameters of North Bridge chipset. LCD Control This item allows you to select LCD panel control options. Please press <Enter> to go to the sub menus. Memory Information Display system memory information.
  • Page 50 MANO310 Mini ITX Motherboard LVDS Panel Type Select LVDS panel resolution. AMI BIOS Setup Utility...
  • Page 51 MANO310 Mini ITX Motherboard  South Bridge This screen allows users to configure parameters of South Bridge chipset. Wake on LAN Enable or disable integrated LAN to wake the system. AMI BIOS Setup Utility...

  • Page 52: Security Menu

    MANO310 Mini ITX Motherboard Security Menu The Security menu allows users to change the security settings for the system.  Setup Administrator Password Set setup administrator password.  User Password Set user password. AMI BIOS Setup Utility...

  • Page 53: Boot Menu

    MANO310 Mini ITX Motherboard Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock. ...
  • Page 54 MANO310 Mini ITX Motherboard  Boot Mode Use this option for boot mode settings. UEFI Boot: Select support to boot any UEFI-capable OS. Legacy Boot: Select support to boot non UEFI-capable OS that expects a legacy BIOS interface. AMI BIOS Setup Utility...
  • Page 55 MANO310 Mini ITX Motherboard Note that the following Primary and Secondary IGFX Boot Display options appear only if Legacy Mode is selected, see images below. AMI BIOS Setup Utility...

  • Page 56: Save & Exit Menu

    MANO310 Mini ITX Motherboard Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 57 MANO310 Mini ITX Motherboard  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes.  Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this option.
  • Page 58 MANO310 Mini ITX Motherboard This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 59: Appendix A Watchdog Timer

    MANO310 Mini ITX Motherboard Appendix A Watchdog Timer A.1 About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 60 MANO310 Mini ITX Motherboard This page is intentionally left blank. Watchdog Timer...

  • Page 61: Appendix B Digital I/O

    MANO310 Mini ITX Motherboard Appendix B Digital I/O B.1 About Digital I/O The onboard GPIO or digital I/O has 16 bits (DIO1~16). Each bit can be set to function as input or output by software programming. In default, all pins are pulled high with +5V level (according to main power).
  • Page 62 MANO310 Mini ITX Motherboard This page is intentionally left blank. Digital I/O...

  • Page 63: Appendix Cbios Flash Utility

    Please read and follow the instructions below carefully. In your USB flash drive, create a new folder and name it “Axiomtek”, see figure below. Copy BIOS ROM file (e.g. MANO310.005) to “Axiomtek” folder.
  • Page 64 Select the USB drive containing BIOS ROM file you want to update using the <> or <> key. Then press <Enter> to get into “Axiomtek” folder. Now you can see the BIOS ROM file on the screen, press <Enter> to select.
  • Page 65 MANO310 Mini ITX Motherboard Please wait while BIOS completes the entire flash update process: erase data, write new data and verify data. 10. When you see the following figure, press <Enter> to finish the update process. After that the system will shut down and restart immediately. BIOS Flash Utility...
