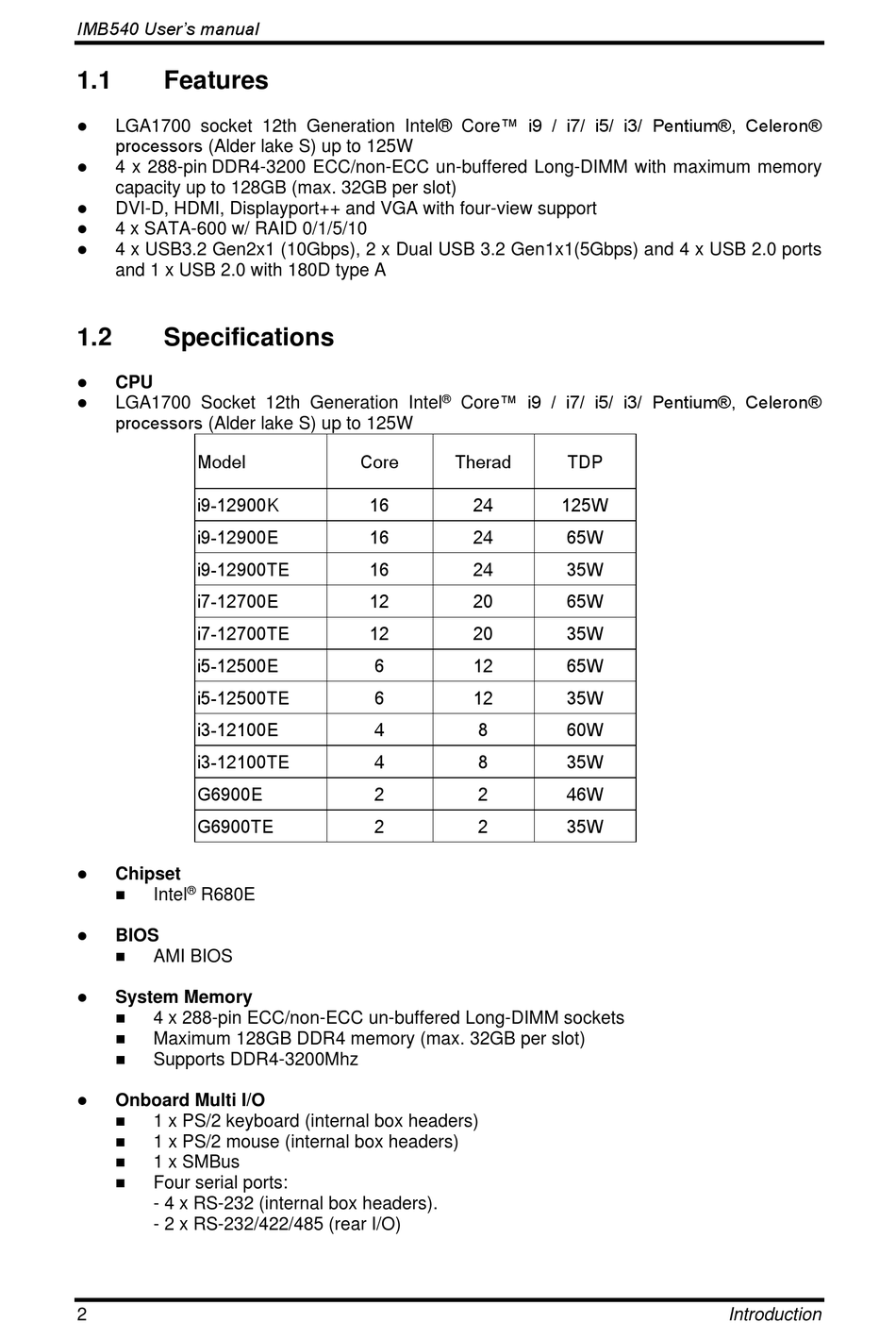

1.1

Features

LGA1700 socket 12th Generation Intel® Core™ i9 / i7/ i5/ i3/ Pentium®, Celeron®
⚫
processors (Alder lake S) up to 125W
⚫ 4 x 288-pin DDR4-3200 ECC/non-ECC un-buffered Long-DIMM with maximum memory
capacity up to 128GB (max. 32GB per slot)
⚫ DVI-D, HDMI, Displayport++ and VGA with four-view support
⚫ 4 x SATA-600 w/ RAID 0/1/5/10
⚫ 4 x USB3.2 Gen2x1 (10Gbps), 2 x Dual USB 3.2 Gen1x1(5Gbps) and 4 x USB 2.0 ports
and 1 x USB 2.0 with 180D type A
1.2

Specifications

⚫ CPU
⚫ LGA1700 Socket 12th Generation Intel
processors (Alder lake S) up to 125W
Model
i9-12900K
i9-12900E
i9-12900TE
i7-12700E
i7-12700TE
i5-12500E
i5-12500TE
i3-12100E
i3-12100TE
G6900E
G6900TE
⚫ Chipset
®
◼ Intel R680E
⚫ BIOS
◼ AMI BIOS
⚫
System Memory
◼ 4 x 288-pin ECC/non-ECC un-buffered Long-DIMM sockets
◼ Maximum 128GB DDR4 memory (max. 32GB per slot)
◼ Supports DDR4-3200Mhz
⚫ Onboard Multi I/O
◼ 1 x PS/2 keyboard (internal box headers)
◼
1 x PS/2 mouse (internal box headers)
◼ 1 x SMBus
◼ Four serial ports:
- 4 x RS-232 (internal box headers).
- 2 x RS-232/422/485 (rear I/O)
2
Core™ i9 / i7/ i5/ i3/ Pentium®, Celeron®
®
Core Therad
16 24
16 24
16 24
12 20
12 20
6 12
6 12
4 8
4 8
2 2
2 2
TDP
125W
65W
35W
65W
35W
65W
35W
60W
35W
46W
35W
