Full-Size Msata Connector (M_Sata1) - AXIOMTEK MANO315 Series User Manual

MANO315 Mini ITX Motherboard
2.4.12

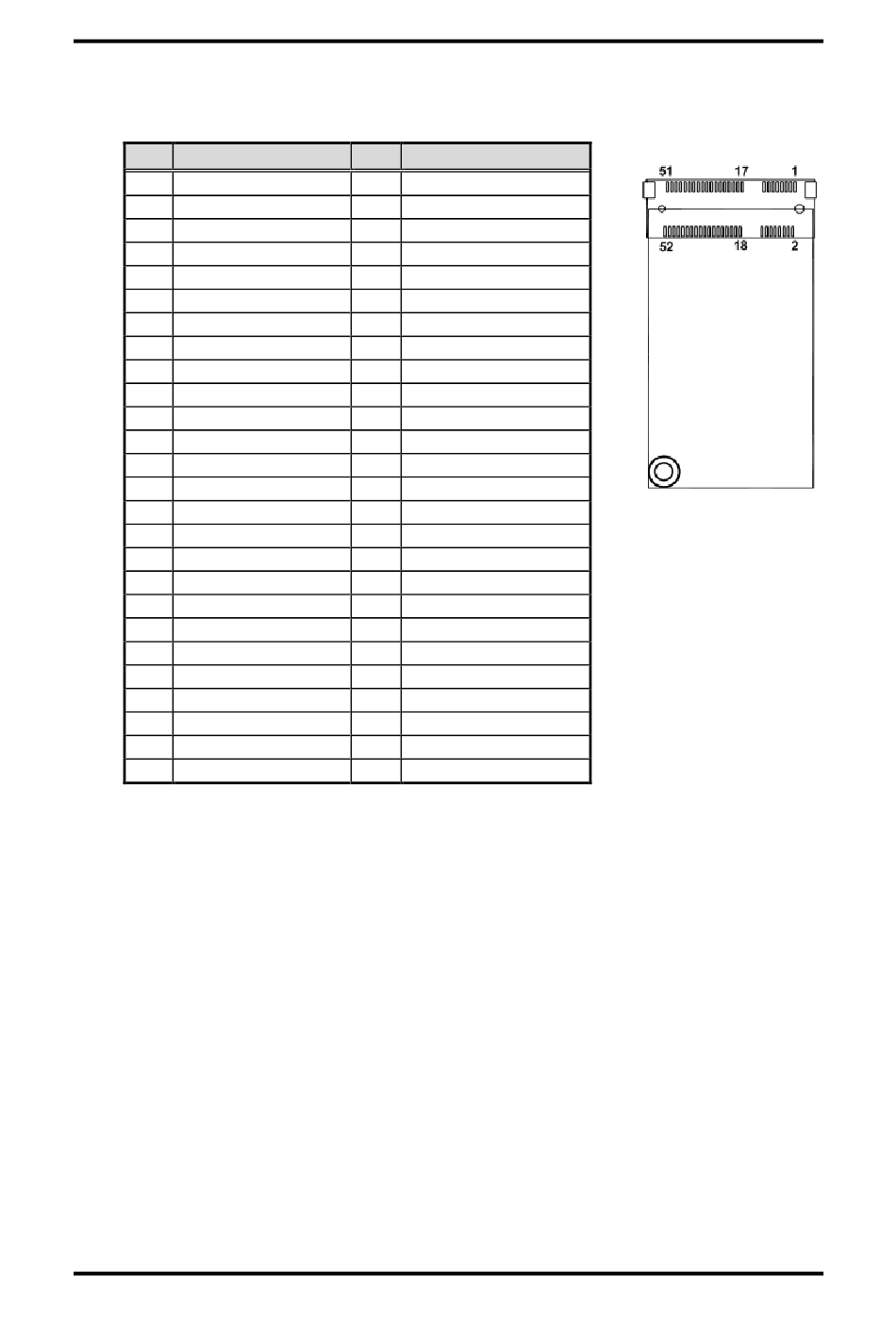

Full-size mSATA Connector (M_SATA1)

This is a full-size mSATA connector.
Pin Signal
1 N.C
3 N.C
5 N.C
7 N.C
9 GND
11 N.C
13 N.C
15 GND
17 N.C
19 N.C
21 GND
23 SATA0_RX_DP
25 SATA0_RX_DN
27 GND
29 GND
31 SATA0_TX_DN
33 SATA0_TX_DP
35 GND
37 GND
39 +3.3V
41 +3.3V
43 GND
45 N.C
47 N.C
49 GND
51 N.C
16
Pin Signal
2 +3.3V
4 GND
6 +V1.5S
8 N.C
10 N.C
12 N.C
14 N.C
16 N.C
18 GND
20 N.C
22 PLTRST_1_N
24 +3.3V
26 GND
28 +V1.5S
30 N.C
32 N.C
34 GND
36 N.C
38 N.C
40 GND
42 N.C
44 N.C
46 N.C
48 +V1.5S
50 GND
52 +3.3V
Board and Pin Assignments
