MANO315 Mini ITX Motherboard

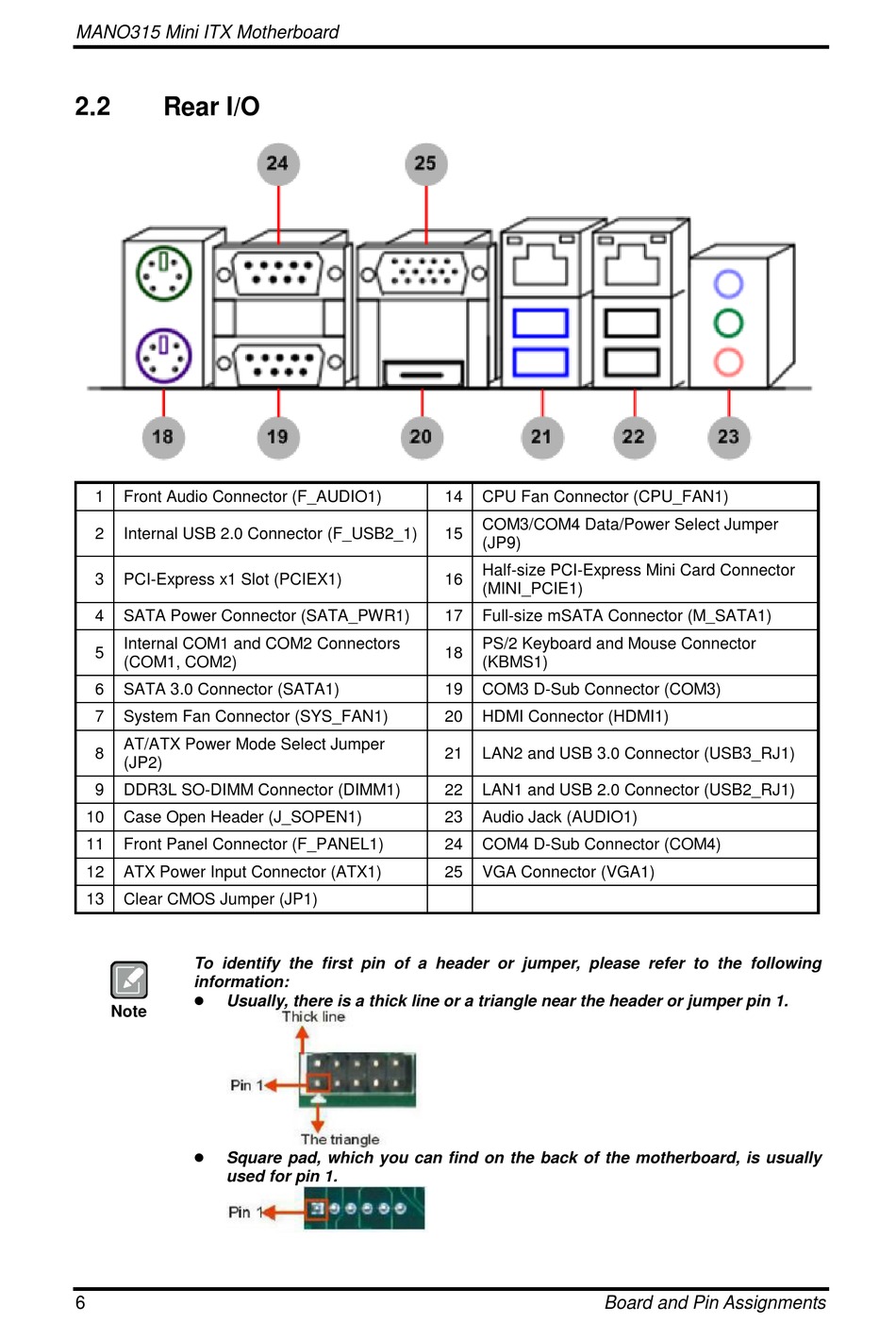

2.2

Rear I/O

1 Front Audio Connector (F_AUDIO1)
2 Internal USB 2.0 Connector (F_USB2_1)
3 PCI-Express x1 Slot (PCIEX1)
4 SATA Power Connector (SATA_PWR1)
Internal COM1 and COM2 Connectors
5
(COM1, COM2)
6 SATA 3.0 Connector (SATA1)
7 System Fan Connector (SYS_FAN1)
AT/ATX Power Mode Select Jumper
8
(JP2)
9 DDR3L SO-DIMM Connector (DIMM1)
10 Case Open Header (J_SOPEN1)
11 Front Panel Connector (F_PANEL1)
12 ATX Power Input Connector (ATX1)
13 Clear CMOS Jumper (JP1)
To identify the first pin of a header or jumper, please refer to the following
information:

Usually, there is a thick line or a triangle near the header or jumper pin 1.
Note

Square pad, which you can find on the back of the motherboard, is usually
used for pin 1.
6
14 CPU Fan Connector (CPU_FAN1)
COM3/COM4 Data/Power Select Jumper
15
(JP9)
Half-size PCI-Express Mini Card Connector
16
(MINI_PCIE1)
17 Full-size mSATA Connector (M_SATA1)
PS/2 Keyboard and Mouse Connector
18
(KBMS1)
19 COM3 D-Sub Connector (COM3)
20 HDMI Connector (HDMI1)
21 LAN2 and USB 3.0 Connector (USB3_RJ1)
22 LAN1 and USB 2.0 Connector (USB2_RJ1)
23 Audio Jack (AUDIO1)
24 COM4 D-Sub Connector (COM4)
25 VGA Connector (VGA1)
Board and Pin Assignments
