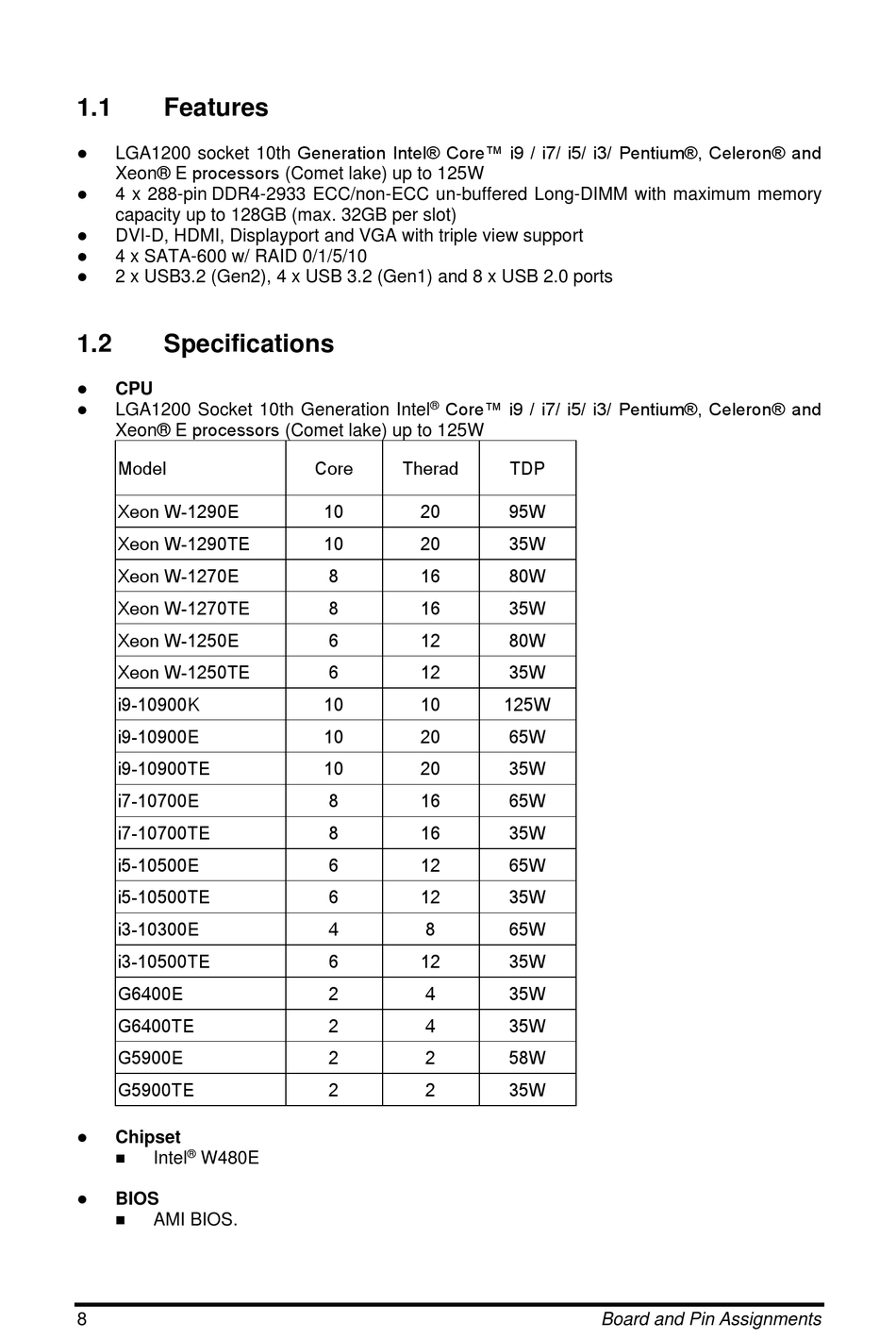

Features; Specifications - AXIOMTEK IMB530 User Manual

1.1

Features

LGA1200 socket 10th Generation Intel® Core™ i9 / i7/ i5/ i3/ Pentium®, Celeron® and
⚫
Xeon® E processors (Comet lake) up to 125W
⚫ 4 x 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM with maximum memory
capacity up to 128GB (max. 32GB per slot)
⚫ DVI-D, HDMI, Displayport and VGA with triple view support
⚫ 4 x SATA-600 w/ RAID 0/1/5/10
⚫ 2 x USB3.2 (Gen2), 4 x USB 3.2 (Gen1) and 8 x USB 2.0 ports
1.2

Specifications

⚫ CPU
⚫ LGA1200 Socket 10th Generation Intel
Xeon® E processors (Comet lake) up to 125W
Model
Xeon W-1290E
Xeon W-1290TE
Xeon W-1270E
Xeon W-1270TE
Xeon W-1250E
Xeon W-1250TE
i9-10900K
i9-10900E
i9-10900TE
i7-10700E
i7-10700TE
i5-10500E
i5-10500TE
i3-10300E
i3-10500TE
G6400E
G6400TE
G5900E
G5900TE
⚫ Chipset
◼ ®
Intel W480E
⚫ BIOS
◼ AMI BIOS.
8
Core™ i9 / i7/ i5/ i3/ Pentium®, Celeron® and
®
Core Therad
10 20
10 20
8 16
8 16
6 12
6 12
10 10
10 20
10 20
8 16
8 16
6 12
6 12
4 8
6 12
2 4
2 4
2 2
2 2
TDP
95W
35W
80W
35W
80W
35W
125W
65W
35W
65W
35W
65W
35W
65W
35W
35W
35W
58W
35W
