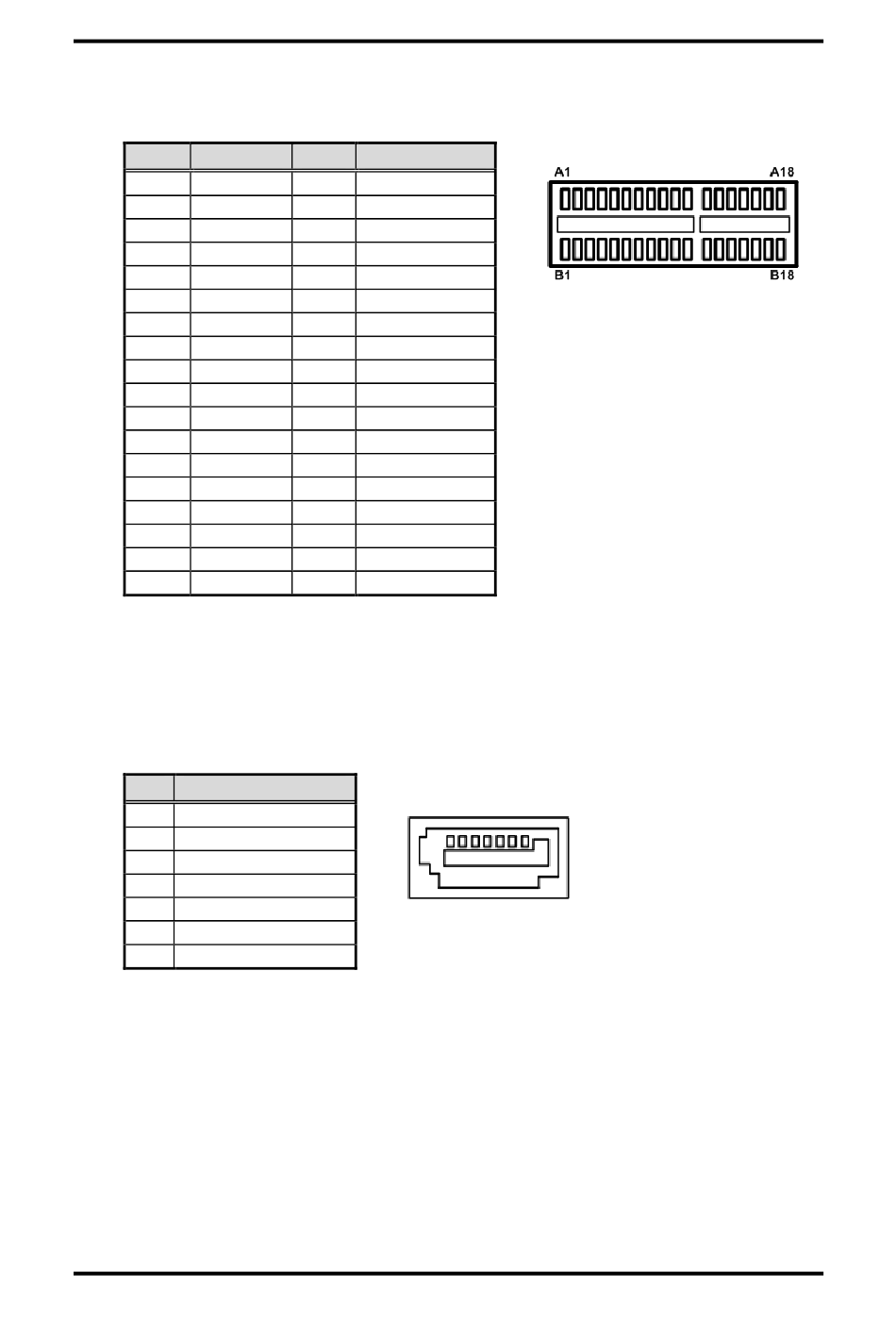

PCI-Express x1 Slot (PCIEX1)

This motherboard has one PCI-Express x1 slot.
Pin Signal
B1 +12V
B2 +12V
B3 N.C
B4 GND
B5 SMCLK
B6 SMDAT
B7 GND
B8 +3.3V
B9 N.C
B10 3.3VSB
B11 WAKE#
B12 N.C
B13 GND
B14 HSOP0
B15 HSON0
B16 GND
B17 N.C
B18 GND
2.4.10

SATA 3.0 Connector (SATA1)

This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for
SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus
interface for connecting to devices such as hard disk drive.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
14
Pin Signal
A1 PRSNT1#
A2 +12V
A3 +12V
A4 GND
A5 N.C
A6 N.C
A7 N.C
A8 N.C
A9 +3.3V
A10 +3.3V
A11 PERST#
A12 GND
A13 REFCLK+
A14 REFCLK-
A15 GND
A16 HSIP0
A17 HSIN0
A18 GND
