AXIOMTEK MANO110 Series User Manual

Amd64 athlon x2/turion x2/athlon mini itx board with amdrs780e+sb71
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANO110 Series
AMD64 Athlon X2/Turion X2/Athlon
Mini ITX Board with AMDRS780E+SB710
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANO110 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK MANO110 Series

Summary of Contents for AXIOMTEK MANO110 Series

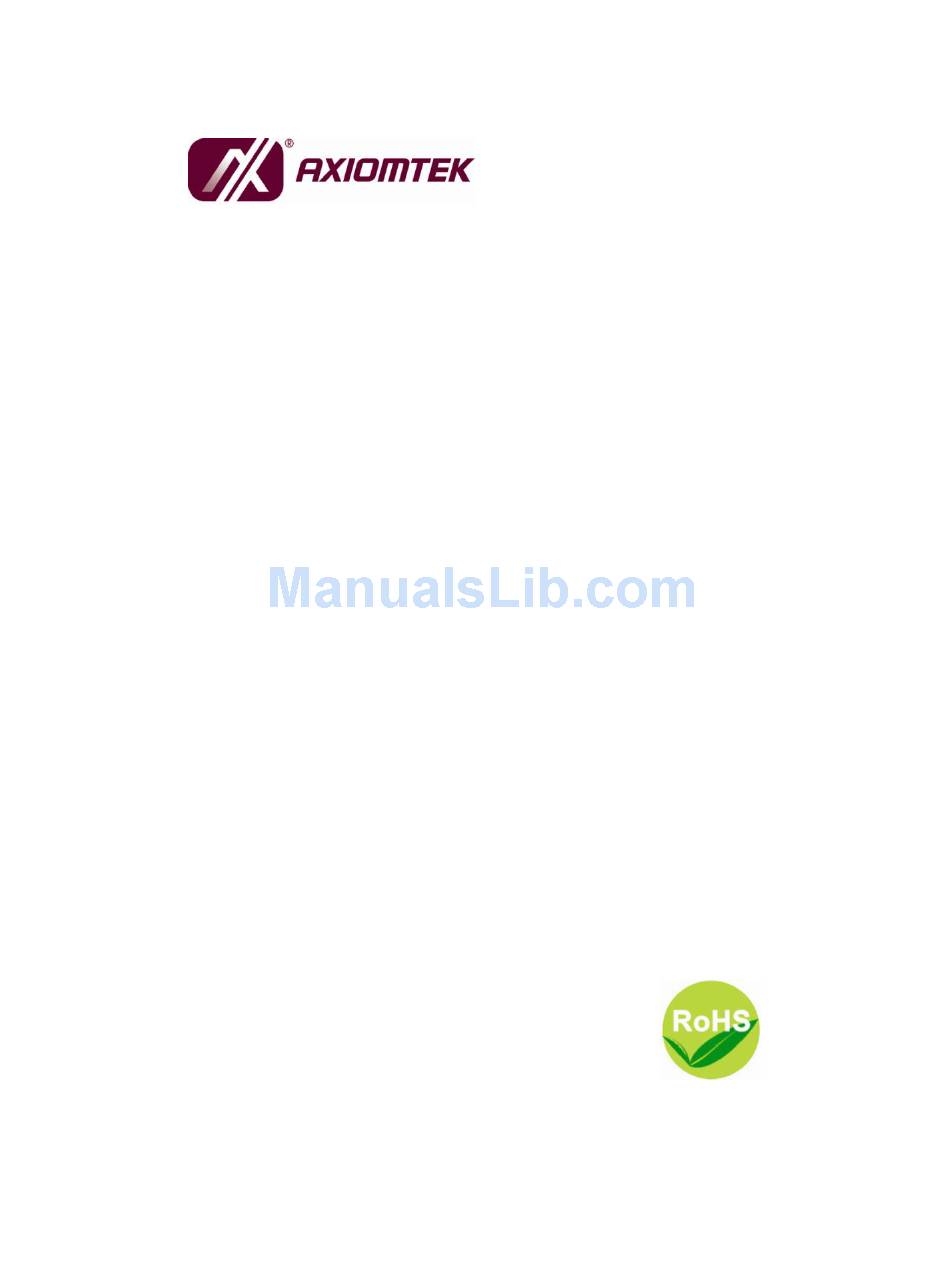

  • Page 1 MANO110 Series AMD64 Athlon X2/Turion X2/Athlon Mini ITX Board with AMDRS780E+SB710 User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval...

  • Page 3: Esd Precautions

     Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® Windows is a trademark of Microsoft Corporation. ®...

  • Page 4: Table Of Contents

    Table of Contents Disclaimers .................... ii ESD Precautions .................. iii CHAPTER 1 .................... 1 INTRODUCTION ..................1 Specifications ..............2 Utilities Supported ............. 4 CHAPTER 2 .................... 5 JUMPERS AND CONNECTORS ............5 Board Dimensions and Fixing Holes ....... 5 Board Layout ..............
  • Page 5 I/O Port Address Map ............... 32 Interrupt Controller ............33 CHAPTER 4 ..................34 AMI BIOS SETUP UTILITY..............34 Starting ................34 Navigation Keys ............... 34 Main Menu ................ 36 Advanced Menu ............... 37 CPU Configuration ............. 38 Advanced Chipset Settings ..........39 Onboard Device Configuration...........

  • Page 7: Chapter 1

    MANO110 Series Mini ITX Board User’s Manual CHAPTER 1 INTRODUCTION The MANO110 is Mini ITX board with AMD Socket AM2/AM2+, support AMD Athlon X2/Turion X2/Athlon Processors. It integrates AMD RS780E with ATI Radeon HD3200 Graphics and SB710 that deliver outstanding system performance through high- bandwidth interfaces, multiple I/O functions for interactive applications and various embedded computing solutions.

  • Page 8: Specifications

    MANO110 Series Mini ITX Board User’s Manual Specifications   AMD Athlon X2/Turion X2/Athlon Processors  System Chipset  AMD RS780E & SB710  CPU Socket  Socket AM2/AM2+  BIOS  AMI BIOS with Axiomtek standard features  System Memory ...
  • Page 9 MANO110 Series Mini ITX Board User’s Manual  Ethernet  Two RTL8111D Giga-bit Ethernet controllers via PCIe x1  Audio  HD Audio compliant (with MIC-in/Line-in/line-out & Speaker) via ALC888  Amplifier: TPA3005D2 Stereo 6 Watt  Power Management ...

  • Page 10: Utilities Supported

    MANO110 Series Mini ITX Board User’s Manual Utilities Supported  Chipset Driver  LAN Driver  High Definition Audio Codecs Driver  HDMI Audio Codecs Driver Note: Under Microsoft Windows XP operating systems the AMD Chipset Driver requires Microsoft .NET Framework prior to installation.

  • Page 11: Chapter 2

    MANO110 Series Mini ITX Board User’s Manual CHAPTER 2 JUMPERS AND CONNECTORS Board Dimensions and Fixing Holes Component Side Jumpers and Connectors...
  • Page 12 MANO110 Series Mini ITX Board User’s Manual Solder Side Jumpers and Connectors...
  • Page 13 MANO110 Series Mini ITX Board User’s Manual Rear I/O Jumpers and Connectors...

  • Page 14: Board Layout

    MANO110 Series Mini ITX Board User’s Manual Board Layout Component Side Jumpers and Connectors...
  • Page 15 MANO110 Series Mini ITX Board User’s Manual Solder Side Jumpers and Connectors...

  • Page 16: Jumper Settings

    MANO110 Series Mini ITX Board User’s Manual Jumper Settings Proper jumper settings configure the MANO110 to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively. Jumper Default Setting...

  • Page 17: Com1 ~ Com4 Mode Selection Jumpers (Jp1, Jp4, Jp2, Jp3)

    MANO110 Series Mini ITX Board User’s Manual  2.3.1 COM1 ~ COM4 Mode Selection Jumpers (JP1, JP4, JP2, JP3) Description Function Jumper Setting Pin 1=5V COM1 (JP1) *Pin 1=DCD (Default) Pin 9=12V *Pin 9=RI (Default) Pin 1=5V COM2 (JP4) *Pin 1=DCD...
  • Page 18 MANO110 Series Mini ITX Board User’s Manual Description Function Jumper Setting Pin 1=5V COM3 (JP2) *Pin 1=DCD (Default) Pin 8=12V *Pin 8=RI (Default) Jumpers and Connectors...

  • Page 19: Cf Mode Setting Jumpers (Jp5)

    MANO110 Series Mini ITX Board User’s Manual  2.3.2 CF Mode Setting Jumpers (JP5) Description Function Jumper Setting CF Mode Select Slave(Default) Master  2.3.3 CF Power Setting Jumpers (JP5) Description Function Jumper Setting CF Power Select +5V(Default) +3.3V Jumpers and Connectors...

  • Page 20: Cmos Clear Jumpers (Jp6)

    MANO110 Series Mini ITX Board User’s Manual  2.3.4 CMOS Clear Jumpers (JP6) You may need to use this jumper is to clear the CMOS memory if incorrect settings in the Setup Utility. Description Function Jumper Setting CMOS Clear Normal...

  • Page 21: Connectors

    MANO110 Series Mini ITX Board User’s Manual Connectors Description Connector PS/2 Keyboard and Mouse Connector DVI and VGA Connector HDMI Connector COM1 Connector LAN1, USB Port1 and USB Port2 Connector LAN2, USB Port2 and USB Port4 Connector Audio Connector Reserved.

  • Page 22: Ps/2 Keyboard And Mouse Connector (Cn1)

    MANO110 Series Mini ITX Board User’s Manual  2.4.1 PS/2 Keyboard and Mouse Connector (CN1) The board supports one PS/2 keyboard and Mouse interface. Signal Signal K/B Data M/S Data K/B CLK M/S CLK  2.4.2 VGA+DVI Connector (CN2) CN2 is a double deck VGA & DVI connector. CN2A is a standard 15-pin DB15 connector commonly used for the CRT VGA display.
  • Page 23 MANO110 Series Mini ITX Board User’s Manual Signal Signal TX2- TX2+ Ground CRT_SPD_CLK CRT_SPD DATA DVI_SPD_CLK DVI_SPD DATA CRT-VSYNC TX1- TX1+ Ground VGAVCC Ground FPDETECT TX0- TX0+ Ground Ground TXC+ TXC- CRT-RED CRT-GREEN CRT-BLUE CRT-HSYNC VGAGND CN2B(DVI-D+CRT2) Jumpers and Connectors...

  • Page 24: Hdmi Connector (Cn3)

    MANO110 Series Mini ITX Board User’s Manual  2.4.3 HDMI Connector (CN3) Signal Signal TMDS Data2+ TMDS Data2 Shield TMDS Data2– TMDS Data1+ TMDS Data1 Shield TMDS Data1– TMDS Data0+ TMDS Data0 Shield TMDS Data0– TMDS Clock+ TMDS Clock Shield TMDS Clock–...

  • Page 25: Usbx2 + Lan Connectors (Cn5, Cn6)

    MANO110 Series Mini ITX Board User’s Manual  2.4.5 USBx2 + LAN Connectors (CN5, CN6) The board supports two three-layer USB & LAN connectors, CN5 and CN6. The upper CN5B and CN6B ports are for LAN. The board is equipped with a high performance Plug and Play Ethernet interface fully compliant with the IEEE 802.3 standard.

  • Page 26: Audio Phone Jack Connector (Cn7)

    MANO110 Series Mini ITX Board User’s Manual  2.4.6 Audio Phone Jack Connector (CN7)  2.4.7 Speaker Output Connector (CN10) negative output for left channel positive output for left channel negative output for right channel positive output for right channel ...

  • Page 27: Cpu Fan Connector (Cn14)

    MANO110 Series Mini ITX Board User’s Manual  2.4.9 CPU Fan Connector (CN14) FAN1 is a CPU fan connector. The fan connector on MANO110 provides power to the fan.  2.4.10 SATA Connectors (CN15, CN16) These SATA connectors are for high-speed SATA interface ports and they can be connected to hard disk devices.

  • Page 28: Usb Port5 ~ Port8 Connectors (Cn19, Cn20)

    MANO110 Series Mini ITX Board User’s Manual  2.4.12 USB Port5 ~ Port8 Connectors (CN19, CN20) These Universal Serial Bus (USB) connectors on this board are for installing versatile USB interface peripherals. These are 10-pin standard USB connectors. Signal Signal...

  • Page 29: Com2, Com3 And Com4 Connectors (Cn30,Cn24,Cn25,)

    MANO110 Series Mini ITX Board User’s Manual  2.4.13 COM2, COM3 and COM4 Connectors (CN30,CN24,CN25,) Please refer to the RS-232 pin assignment as listed below: Signal Signal Data Set Ready Data Carrier Detect (DCD) (DSR) COM2/3/4 Request to Send Receive Data (RXD)

  • Page 30: Mini Pcie Slot (Cn27)

    MANO110 Series Mini ITX Board User’s Manual  2.4.15 Mini PCIe slot (CN27) CN27 is a PCI Express Mini Card connector with support for a PCI Express x1 link and a USB 2.0 link. A PCI Express Mini Card can be applied to either PCI Express or USB 2.0.
  • Page 31 MANO110 Series Mini ITX Board User’s Manual Signal Signal +1.5V +3.3V CN27 Hardwarre Description...

  • Page 32: Atx Power Connector (Cn28)

    MANO110 Series Mini ITX Board User’s Manual  2.4.16 ATX Power Connector (CN28) Steady and sufficient power can be supplied to all components on the board through the power connector. Please make sure all components and devices are properly installed before connecting the power connector. If you use a 20-pin ATX power supply, please remove the small cover from the power connector before plugging in the power cord;...

  • Page 33: Dio Connector (Cn29)

    MANO110 Series Mini ITX Board User’s Manual  2.4.17 DIO Connector (CN29) The board is equipped an 8-channel digital I/O connector CN29 that meets requirements for a system customary automation control. The digital I/O can be configured to control cash drawers, sense warning signals from an Uninterrupted Power System (UPS), or perform store security control.

  • Page 34: Flat Panel Bezel Connector (Cn31)

    MANO110 Series Mini ITX Board User’s Manual  2.4.18 Flat Panel Bezel Connector (CN31)  Power LED This 3-pin connector named as Pin 1, 3 and Pin 5 connect the system power LED indicator to such a switch on the case. Pin 1 is assigned as +, and Pin 3, Pin 5 as -.

  • Page 35: Cf Connector (Cn32)

    MANO110 Series Mini ITX Board User’s Manual  2.4.19 CF Connector (CN32) The board is equipped with a CompactFlash disk type-II socket on the solder side to support an IDE interface CompactFlash disk card with DMA mode supported. The socket is especially designed to avoid incorrect installation of the CompactFlash disk card.
  • Page 36 MANO110 Series Mini ITX Board User’s Manual 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49...

  • Page 37: Chapter 3

    The MANO110 Series uses American Megatrends BIOS with 8Mbit SPI Flash, DMI, Plug and Play. System Memory The MANO110 Series industrial CPU card supports two 200-pin unbuffered DDR2 SO-DIMM sockets for a maximum memory of 4GB DDR2 SDRAMs. The memory module can come in sizes of 64MB, 128MB, 256MB, 512MB, 1GB and 2GB.

  • Page 38: I/O Port Address Map

    MANO110 Series Mini ITX Board User’s Manual I/O Port Address Map There are total 1KB port addresses available for assignment to other devices via I/O expansion cards . Address Devices 000-01F DMA controller #1 020-02D 024-025 Interrupt controller #1 028-029...

  • Page 39: Interrupt Controller

    2E8-2EF Serial port #4 (COM4) Interrupt Controller The MANO110 Series is a 100% PC compatible control board. It consists of 16 interrupt request lin es, and four out of them can be programmable. The mapping list of the 16 interrupt request lines is shown as the following table.

  • Page 40: Chapter 4

    MANO110 Series Mini ITX Board User’s Manual CHAPTER 4 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...
  • Page 41 MANO110 Series Mini ITX Board User’s Manual The <Esc> key allows you to discard any changes you have made and exit the Setup. Press the <Esc> key to exit the setup without saving your changes. The <Enter> key allows you to display or change the setup option listed for a particular setup item.

  • Page 42: Main Menu

    MANO110 Series Mini ITX Board User’s Manual Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below.

  • Page 43: Advanced Menu

    MANO110 Series Mini ITX Board User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...

  • Page 44: Cpu Configuration

    MANO110 Series Mini ITX Board User’s Manual  CPU Configuration This screen shows the CPU Configuration. AMI BIOS Setup Utility...

  • Page 45: Advanced Chipset Settings

    MANO110 Series Mini ITX Board User’s Manual  Advanced Chipset Settings AMI BIOS Setup Utility...

  • Page 46: Primary Video Controller

    MANO110 Series Mini ITX Board User’s Manual Primary Video Controller.  IGFX-GFX0-GPP-PCI: Display from onboard VGA first. GFX0-GPP- IGFX-PCI: Display from external PCIe VGA card first. UMA Frame Buffer Size.  Frame buffer size is the total amount of system memory allocated solely for the onboard graphics controller.

  • Page 47: Onboard Device Configuration

    MANO110 Series Mini ITX Board User’s Manual  Onboard Device Configuration Onboard LAN Boot.  Use these items to enable or disable the Boot ROM function of the onboard LAN chip when the system boots up. HD Audio Azalia Device.
  • Page 48 MANO110 Series Mini ITX Board User’s Manual Serial Port3 IRQ  This item specifies the IRQ used by the serial port 3. Serial Port4 Address  This item specifies the base I/O port address . Request address of serial port 4. The Optimal setting is 2E8.
  • Page 49 MANO110 Series Mini ITX Board User’s Manual  USB Configuration You can select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.

  • Page 50: Pci/Pnp Settings

    MANO110 Series Mini ITX Board User’s Manual  PCI/PnP Settings AMI BIOS Setup Utility...

  • Page 51: Reserved Memory Size

    MANO110 Series Mini ITX Board User’s Manual Clear NVRAM  Use this item to clear the data in the NVRAM (CMOS). Here are the options for your selection, No and Yes. Plug & Play O/S  When the setting is No, Use this item to configure all the devices in the system.

  • Page 52: Power Acpi Settings

    MANO110 Series Mini ITX Board User’s Manual Power ACPI Settings Suspend mode  Use this item to select the ACPI state used for System Suspend. The optional settings are: S1 (POS); S3 (STR). Repost Video on S3 Resume  This feature allows you to repost video on S3 resume.

  • Page 53: Power Management

    MANO110 Series Mini ITX Board User’s Manual  Power Management Power Button Mode  This option specifies how the externally mounted power button on the front of the computer chassis is used. The default setting is On/Off Keyboard PowerOn ...

  • Page 54: Hardware Health Configuration

    MANO110 Series Mini ITX Board User’s Manual  Hardware Health Configuration Cuban Mode Setting (Smart Fan)  When set to disable, the CPU FAN are always on. Temperature 1 Limit of Highest  Set the temperature limit for CPU FAN high speed.

  • Page 55: Boot Menu

    MANO110 Series Mini ITX Board User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: ...

  • Page 56: Boot Device Priority

    MANO110 Series Mini ITX Board User’s Manual  Boot Device Priority The Boot Device Priority screen specifies the order in which the system checks for the device to boot from the available devices. AMI BIOS Setup Utility...

  • Page 57: Hard Disk Drives

    MANO110 Series Mini ITX Board User’s Manual  Hard Disk Drives Use this screen to view the hard disk drives in the system. AMI BIOS Setup Utility...

  • Page 58: Security Settings

    MANO110 Series Mini ITX Board User’s Manual  Security Settings  Change Supervisor Password Select this option and press <Enter> to access the sub menu. You can use the sub menu to change the supervisor password. AMI BIOS Setup Utility...

  • Page 59: Boot Settings Configuration

    MANO110 Series Mini ITX Board User’s Manual  Boot Settings Configuration  Quick Boot Enabling this item lets the BIOS skip some power on self tests (POST).The default setting is Enabled.  AddOn ROM Display Mode This item selects the display mode for option ROM. The default setting is Force BIOS.

  • Page 60: Exit Menu

    MANO110 Series Mini ITX Board User’s Manual Exit Menu The Exit menu allows users to load your system configuration with optimal or failsafe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 61 MANO110 Series Mini ITX Board User’s Manual  Discard Changes Use this item to abandon all changes.  Load Optimal Defaults It automatically sets all Setup options to a complete set of default settings when you select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications.

  • Page 62: Appendix A

    MANO110 Series Mini ITX Board User’s Manual APPENDIX A WATCHDOG TIMER A1 Watchdog Timer After the system stops working for a while, it can be auto-reset by the Watchdog Timer. The integrated Watchdog Timer can be set up in the system reset mode by program.
  • Page 63 MANO110 Series Mini ITX Board User’s Manual Watchdog Timer Register Index Port (2E hex) Data Port (2F hex) Description 87 hex Unlock Super I/O. Two successive writes of 87 hex be applied to 2E hex. 2B hex (F71863) Bit 4 Select W DTO pin function.
  • Page 64 MANO110 Series Mini ITX Board User’s Manual Watchdog Timer Register Index Port (2E hex) Data Port (2F hex) Description F6 hex Value 0: Stop timer. 1~FF hex: W rite non-zero value the counter to load the value to watchdog counter and start counting down.
  • Page 65 MANO110 Series Mini ITX Board User’s Manual A1.2 Example Program Code The sample code is for debug.exe. Sample code is index port 2E hex, data port 2F hex and time-out value 30 second. A1.2.1 Set and Start Up The W atchdog Timer...
  • Page 66 MANO110 Series Mini ITX Board User’s Manual A1.2.2 Reset The Watchdog Timer Unlock Super I/O O 2E 87 O 2E 87  Select Logic Device 7 O 2E 07 O 2F 07  Active Logic Device O 2E 30 O 2F 01 ...
  • Page 67 MANO110 Series Mini ITX Board User’s Manual 1.2.3 Disable The Watchdog Timer Unlock Super I/O O 2E 87 O 2E 87  Select Logic Device 8 O 2E 07 O 2F 07  Inactive Logic Device O 2E 30 O 2F 00 ...

  • Page 68: Appendix B

    MANO110 Series Mini ITX Board User’s Manual APPENDIX B DIGITAL I/O Digital I/O Software Programming Example Signal Signal DIO0 DIO4 CN29 DIO1 DIO5 DIO2 DIO6 DIO3 DIO72 GPIO control #define SMBusBase 0x0B00 #define PCA9554SlaveAddr 0x40 #define ICH_SMBUS_HOST_STAT 0x00 #define ICH_SMBUS_HOST_CTRL...
  • Page 69 MANO110 Series Mini ITX Board User’s Manual Configure GPIO pin direction as 4 inputs and 4 outputs outb(0xFF,SMBusBase + ICH_SMBUS_HOST_STAT); // Clear host status outb(PCA9554SlaveAddr, SMBusBase + ICH_SMBUS_HOST_ADDR); // Set slave address outb(0x03, SMBusBase + ICH_SMBUS_HOST_CMD); // Configuration register for PCA9554 outb(0xF0, SMBusBase + ICH_SMBUS_HOST_DATA_0);...
