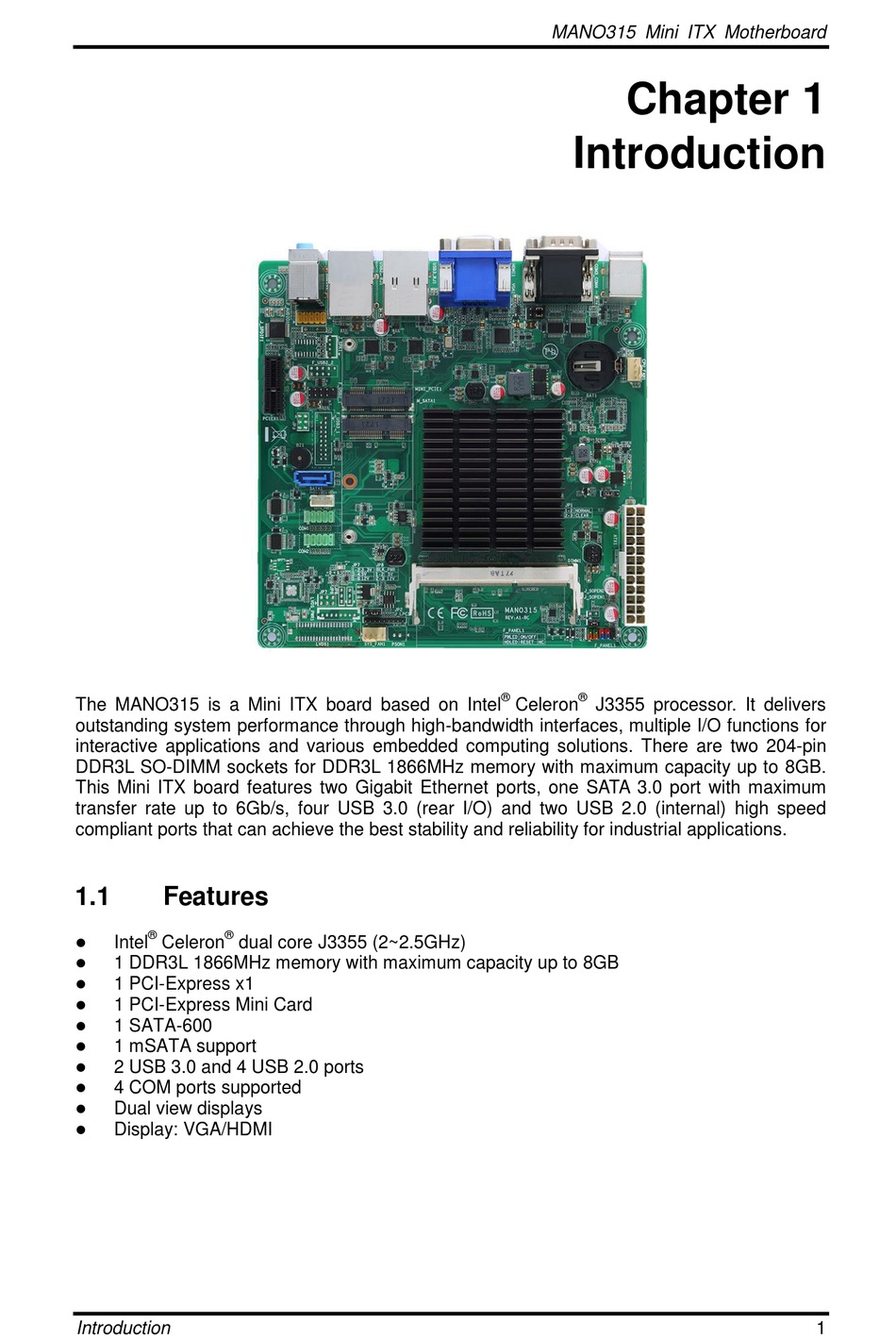

The MANO315 is a Mini ITX board based on Intel
outstanding system performance through high-bandwidth interfaces, multiple I/O functions for
interactive applications and various embedded computing solutions. There are two 204-pin
DDR3L SO-DIMM sockets for DDR3L 1866MHz memory with maximum capacity up to 8GB.
This Mini ITX board features two Gigabit Ethernet ports, one SATA 3.0 port with maximum
transfer rate up to 6Gb/s, four USB 3.0 (rear I/O) and two USB 2.0 (internal) high speed
compliant ports that can achieve the best stability and reliability for industrial applications.
1.1

Features

® ®

Intel Celeron dual core J3355 (2~2.5GHz)
 1 DDR3L 1866MHz memory with maximum capacity up to 8GB
 1 PCI-Express x1
 1 PCI-Express Mini Card
 1 SATA-600
 1 mSATA support

2 USB 3.0 and 4 USB 2.0 ports
 4 COM ports supported
 Dual view displays
 Display: VGA/HDMI
Introduction
MANO315 Mini ITX Motherboard
Chapter 1
Introduction
® ®
Celeron J3355 processor. It delivers
