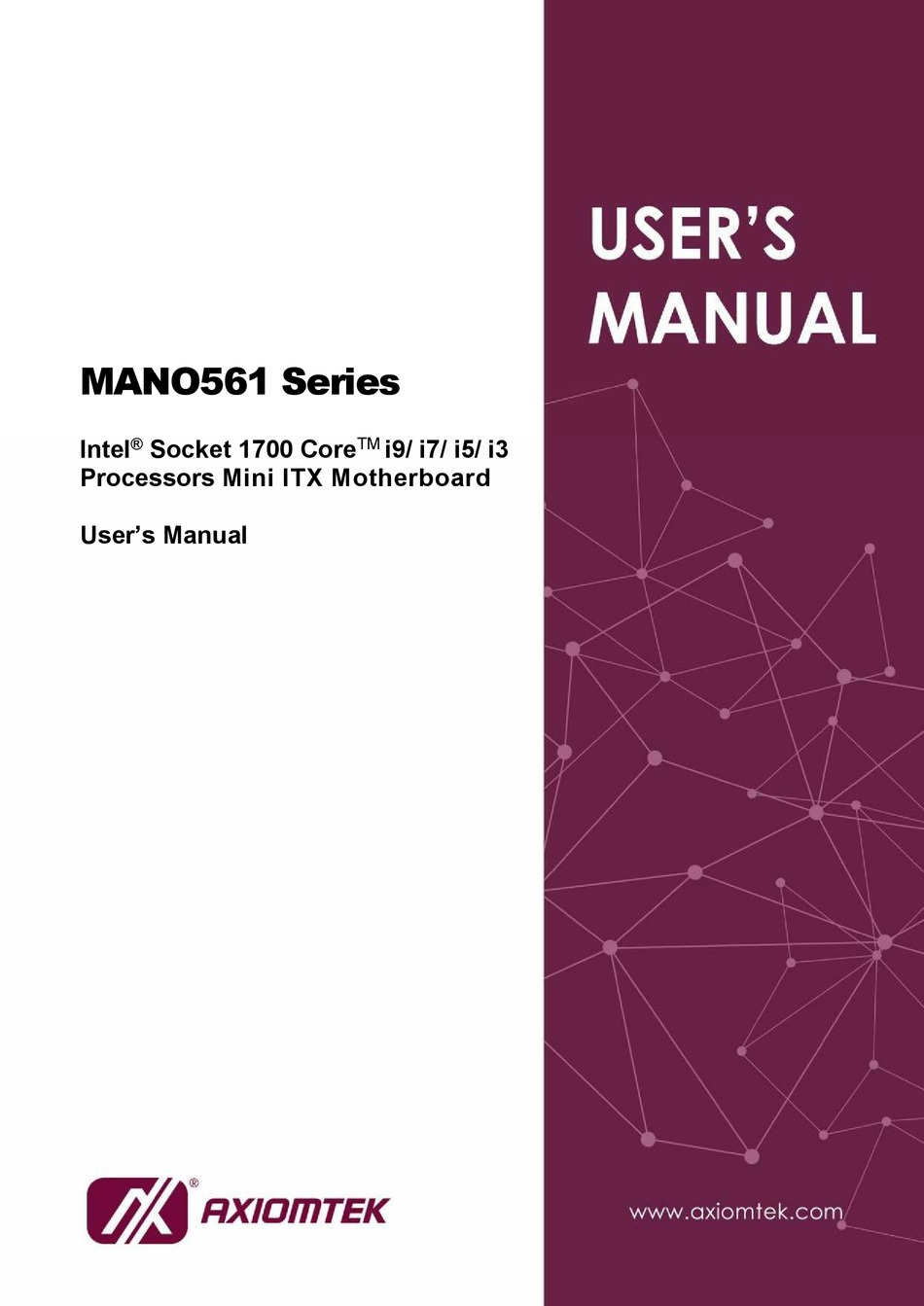

AXIOMTEK MANO561 Series User Manual
  1. Manuals
  2. Brands
  3. AXIOMTEK Manuals
  4. Motherboard
  5. MANO561 Series
  6. User manual

AXIOMTEK MANO561 Series User Manual

Intel socket 1700 core i9/ i7/ i5/ i3 processors mini itx motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Disclaimers
This manual has been carefully checked and believed to contain accurate information.
Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third
party's rights, and any liability arising from such use.
Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy,
MANO561 Series
completeness, or usefulness of any information in this document. Axiomtek does not make any
commitment to update the information in this manual.
Axiomtek reserves the right to change or revise this document and/or product at any time
®
Intel
Socket 1700 Core
without notice.
Processors Mini ITX Motherboard
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any
form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without
the prior written permission of Axiomtek Co., Ltd.
User's Manual
CAUTION
If you replace wrong batteries, it causes the danger of explosion. It is recommended by the
manufacturer that you follow the manufacturer's instructions to only replace the same or
equivalent type of battery and dispose of used ones.
Copyright 2022 Axiomtek Co., Ltd.
All Rights Reserved
Octorber 2022, Version A2
Printed in Taiwan
TM
i9/ i7/ i5/ i3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANO561 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK MANO561 Series

Summary of Contents for AXIOMTEK MANO561 Series

  • Page 1 MANO561 Series completeness, or usefulness of any information in this document. Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time ® Intel...

  • Page 2: Esd Precautions

    It discharges static electricity from your body. Wear a wrist-grounding strap, available from most electronic component stores, when  handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. Intel ® and Celeron ®...

  • Page 3: Table Of Contents

    Table of Contents Disclaimers ....................... i ESD Precautions ....................ii Section 1 Introduction ..........1 Features ....................2 Specifications ..................2 Utilities Supported ................. 3 Block Diagram ..................4 Section 2 Board and Pin Assignments ....5 Board Layout ..................5 Rear I/O ....................
  • Page 4 2.4.24 SIM Card Slot (CN25) ................23 Section 3 AMI BIOS Setup Utility ......24 Starting ....................24 Navigation Keys .................. 24 Main Menu ..................26 Advanced Menu .................. 27 Chipset Menu ..................40 Boot Menu ................... 44 Security Menu ..................45 Save &...
  • Page 5 This page is intentionally left blank.

  • Page 7: Introduction

    MANO561 Mini ITX Motherboard Section 1 Introduction The MANO561 Mini-ITX motherboard supports the new 14nm 12 Generation Intel ® Core™ i9 / i7/ i5 / i3 and Pentium processors in LGA1700 package. Featuring the new Intel H610 ® ® Express chipset with two DDR4 3200MHz memory support, this motherboard is built to perform best stability and reliability for industrial applications.

  • Page 8: Features

    MANO561 Mini ITX Motherboard Features LGA1700 Socket for 12 Generation Intel ® Core™ i9/ i7/ i5/ i3 and Pentium ® processors  (Alder Lake) 2 DDR4 3200MHz memory with maximum capacity up to 64 GB  1 PCI-Express x16  1 M.2 Key E with size 22x30 ...

  • Page 9: Utilities Supported

    MANO561 Mini ITX Motherboard - One 24-bit dual channel LVDS and one 8-pin inverter connector. LVDS resolution is max. up to 1920x1200. Default is LVDS - One Embedded DisplayPort (eDP) with resolution max. up to 4096x2304 @60Hz; co-layout with LVDS. Expansion Interface ...

  • Page 10: Block Diagram

    MANO561 Mini ITX Motherboard Block Diagram Introduction...

  • Page 11: Board And Pin Assignments

    MANO561 Mini ITX Motherboard Section 2 Board and Pin Assignments Board Layout Top View Board and Pin Assignments...
  • Page 12 MANO561 Mini ITX Motherboard Bottom View Board and Pin Assignments...

  • Page 13: Rear I/O

    MANO561 Mini ITX Motherboard Rear I/O Jumpers/Headers/Connectors 4-pin ATX Power Input Connector (CN18) M.2 Key E Socket (CN22) SIM Card Slot (CN25) Audio Header (CN52) Front Panel Header (CN8) VGA Connector (CN5) SATA Power Connector (CN13) COM VDD Select Jumper (JP1) SATA 3.0 Connector (CN7) Digital I/O Connector (CN26) COM4 serial Port (CN4)

  • Page 14: Jumper Settings

    2 jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper. Before applying power to MANO561 Series, please make sure all the jumpers are in factory default position. Below you can find a summary table of all jumpers and onboard default settings.

  • Page 15: Lvds Vdd Select (Jp4)

    MANO561 Mini ITX Motherboard RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which includes system setup information such as system passwords. To erase the RTC RAM: Turn OFF the computer and unplug the power cord. Remove the onboard battery.

  • Page 16: Connectors

    MANO561 Mini ITX Motherboard Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, please make sure all connectors are properly and firmly connected. Here is a summary table showing connectors on the hardware. Connector Description COM1 D-Sub Connector...

  • Page 17: Com1 D-Sub Connector (Cn1)

    MANO561 Mini ITX Motherboard 2.4.1 COM1 D-Sub Connector (CN1) The CN1 is a double 9-pin D-Sub connector for COM1 and COM2 serial port interfaces on the rear I/O. Only COM1 supports RS-232/422/485 mode. The pin assignments of RS- 232/422/485 are listed in table below. COM1: RS-422 RS-485...

  • Page 18: Sata 3.0 Connectors (Cn7)

    MANO561 Mini ITX Motherboard 2.4.3 SATA 3.0 Connectors (CN7) This connector supports the thin Serial ATA cable for primary internal storage device. Signal 2.4.4 SATA Power Connector (CN13) The CN51 is a 4-pin (pitch=2.54mm) connector for DC +12V and +5V power output. Signal +12V 2.4.5...

  • Page 19: Usb 2.0 Stack Port (Cn15)

    MANO561 Mini ITX Motherboard 2.4.6 USB 2.0 Stack Port (CN15) The motherboard comes with one stacked Universal Serial Bus (compliant with USB 2.0) connector on the rear I/O for installing USB peripherals such as keyboard, mouse, scanner, etc. Signal Signal USB_PWR USB_PWR USB#5_D-...
  • Page 20 MANO561 Mini ITX Motherboard +1.5V CLKREQ# UIM_PWR/NC UIM_DAT/NC REFCLK- UIM_CLK/NC REFCLK+ UIM_REST/NC UIM_VPP/NC PERST# PCIE_RX_D- +3.3VAUX PCIE_RX_D+ +1.5V SMB_CLK PCIE_TX_D- SMB_DATA PCIE_TX_D+ USB_D- USB_D+ +3.3VAUX +3.3VAUX +1.5V +3.3VAUX Board and Pin Assignments...

  • Page 21: Key E Socket (Cn22)

    MANO561 Mini ITX Motherboard 2.4.9 M.2 Key E Socket (CN22) The motherboard comes with one M.2 Key E socket (PCIe & USB2.0), The CN22 supports CNVi module. Signal Signal +3.3V_SBY USB_D+ +3.3V_SBY USB_D- M.2_BT_PCMCLK CNVI_WGR_DATA1_D- M.2_BT_PCMRST CNVI_WGR_DATA1_D+ M.2_BT_PCMIN M.2_BT_PCMOUT CNVI_WGR_DATA0_D- CNVI_WGR_DATA0_D+ UART_BT_WAKE- CNVI_WGR_CLK_D-...

  • Page 22: Digital I/O Connector (Cn26)

    MANO561 Mini ITX Motherboard 2.4.10 Digital I/O Connector (CN26) The CN26 is a 2x5-pin (pitch=2.00mm) connector for digital I/O interface. You may use software programming to control these digital signals, please refer to Appendix B. Signal 2.4.11 LVDS Signal Connector (CN29) The CN29 is a 2x20-pin (pitch=1.00mm) connector for LVDS panel interface Signal Signal...

  • Page 23: 4-Pin Atx Power Input Connectors (Cn18)

    MANO561 Mini ITX Motherboard 2.4.12 4-pin ATX Power Input Connectors (CN18) Steady and sufficient power can be supplied to all components on the board by connecting power connector. Please make sure all components and devices are properly installed before connecting the power connector. 2.4.13 HDMI1.4 Connector (CN6) The HDMI (High-Definition Multimedia Interface) is a compact digital interface which can...

  • Page 24: Vga Connector (Cn5)

    MANO561 Mini ITX Motherboard 2.4.14 VGA Connector (CN5) The CN5 is a 2x8-pin (pitch=2.00mm) header for VGA interface. Signal Signal VGA_RED VGA_GRN VGA_BLUE VGA_5VDDA HSYNC_C VSYNC_C 5VDDCLK 2.4.15 eDP Connector (CN50) This connector supports 18/24 bit single-channel panels. Signal Signal EMB_HPD EDP_TXN3C EDP_TXP3_C...

  • Page 25: Audio Header (Cn52)

    MANO561 Mini ITX Motherboard 2.4.16 Audio Header (CN52)2.4.17 .... LVDS Backlight Control Header (CN55) The CN55 is an 8-pin (pitch=1.25mm) header for LVDS backlight control interface. Signal +12V +12V LVDS_BKL_EN LVDSPWMOUT 2.4.19 USB 2.0 Header (CN19) The CN62 is a 1x4-pin (pitch=1.25mm) header for USB 2.0 interface. Signal Cable is optional.
  • Page 26 MANO561 Mini ITX Motherboard connecting to an external speaker, you need to set pins 3 and 4 opened and connect the speaker cable to pin 3(-) and pin 4(+). Power On/Off Button Pin 7 and 8 connect the power button on front panel to the board, which allows users to turn on or off power supply.

  • Page 27: Spi Header (Cn24)

    MANO561 Mini ITX Motherboard 2.4.21 SPI Header (CN24) The CN24 is a 9-pin (pitch=2.00mm) connector for SPI interface. Signal MISO MOSI 2.4.22 Audio Jack (CN14) The motherboard provides HD audio jack on the rear I/O. Install audio driver, and then attach audio devices to CN14.

  • Page 28: Key B Socket (Scn1)

    MANO561 Mini ITX Motherboard 2.4.23 M.2 Key B Socket (SCN1) The SCN1 is a M.2 Key B connector. It is suggested to install the M.2 storage module via SATA with 22mm width and 42mm length or the M.2 cellular module via USB 2.0 with 30mm width and 42mm length.

  • Page 29: Sim Card Slot (Cn25)

    MANO561 Mini ITX Motherboard 2.4.24 SIM Card Slot (CN25) The CN25 is for inserting SIM Card which is mainly used in wireless network application. Signal UIM_PWR UIM_RST UIM_CLK DATA Board and Pin Assignments...

  • Page 30: Ami Bios Setup Utility

    MANO561 Mini ITX Motherboard Section 3 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.
  • Page 31 MANO561 Mini ITX Motherboard Hot Keys Description  Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or sub  Up/Down screen. The <Enter>...

  • Page 32: Main Menu

    MANO561 Mini ITX Motherboard Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 33: Advanced Menu

    MANO561 Mini ITX Motherboard Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 34 MANO561 Mini ITX Motherboard  Connectivity Configuration The CNVi (Connectivity Integration) is a proprietary connectivity interface by Intel for Wi- Fi and Bluetooth radios to lower costs and simplify their wireless modules. CNVi Mode This option configures Connectivity. 1. Auto Detection: If Discrete solution is discovered it will be enabled by default. 2.
  • Page 35 MANO561 Mini ITX Motherboard CPU Configuration  This screen shows CPU information. Intel (VMX) Virtualization Technology Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine Mode) can utilize the additional hardware capabilities. It allows a platform to run multiple operating systems and applications independently, hence enabling a single computer system to work as several virtual systems.
  • Page 36 MANO561 Mini ITX Motherboard SATA Configuration  During system boot up, BIOS automatically detects the presence of SATA devices. In the SATA Configuration menu, you can see all currently installed SATA device(s). SATA Controller(s) Enable or disable the SATA Controller feature. AMI BIOS Setup Utility...
  • Page 37 MANO561 Mini ITX Motherboard Trusted Computing  This screen provides function for specifying the TPM2.0 settings. TPM Device Selection Select TPM device: PTT: Intel ® built-in TPM. Enables PTT in SkuMgr. dTPM: External extended Infineon’s TPM. Disables PTT in SkuMgr. Security Device Support Enable or disable BIOS support for security device.
  • Page 38 MANO561 Mini ITX Motherboard ACPI Settings  ACPI Sleep State When the suspend button is pressed, the ACPI (Advanced Configuration and Power Interface) sleep state is S3 (Suspend to RAM). S3 Video Repost On enabling, Video Option ROM will be dispatched during S3 resume. Restore AC Power Loss Decide the state of system when power is re-applied after a power failure.
  • Page 39 MANO561 Mini ITX Motherboard F81966 Super IO Configuration  You can use this screen to select options for the Super IO Configuration and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 40 MANO561 Mini ITX Motherboard Serial Port 1 Configuration  Serial Port Enable or disable serial port 1. Change Settings Select an optimal setting for Super IO device. Auto IO=3F8h, IRQ=4; IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;...
  • Page 41 MANO561 Mini ITX Motherboard Serial Port 2~4 Configuration  Serial Port Enable or disable serial port 2~4. Change Settings Select an optimal setting for Super IO device. For serial port 2: Auto IO=2F8h, IRQ=3; IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;...
  • Page 42 MANO561 Mini ITX Motherboard Hardware Monitor  This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCCIO, CPU SA, +5V and +12V). AMI BIOS Setup Utility...
  • Page 43 MANO561 Mini ITX Motherboard Smart Fan Mode Configuration  This screen allows you to configure Smart Fan mode. You can use Smart Fan function to control CN60 and CN61. Smart Fan Function Enable or disable Smart Fan. Fan 1 Smart Fan Control Select Smart Fan operating mode.
  • Page 44 MANO561 Mini ITX Motherboard USB Configuration  USB Devices Display all detected USB devices. AMI BIOS Setup Utility...
  • Page 45 MANO561 Mini ITX Motherboard Network Stack Configuration  Network Stack Enable or disable UEFI Network Stack. IPv4/IPv6 PXE Support Enable or disable IPv4 PXE boot support. If disabled, IPv4/IPv6 PXE boot support will not be available. IPv4/IPv6 HTTP Support Enable or disable IPv4/IPv6 HTTP boot support. If disabled, IPv4/IPv6 HTTP boot support will not be available.

  • Page 46: Chipset Menu

    MANO561 Mini ITX Motherboard Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► PCH-IO Configuration ►...
  • Page 47 MANO561 Mini ITX Motherboard PCH-IO Configuration  This screen allows you to set PCH parameters. HD Audio Control detection of the HD Audio device. Disabled: HDA will be unconditionally disabled. Enabled: HDA will be unconditionally enabled. Auto: HDA will be enabled if present, disabled otherwise. ErP Control When ErP is enabled, system meets ErP requirement.
  • Page 48 MANO561 Mini ITX Motherboard Onboard Device  Onboard LAN 1/2 Enable or disable onboard LAN 1/2. AMI BIOS Setup Utility...
  • Page 49 MANO561 Mini ITX Motherboard RTD213x eDP-LVDS  IGD Flat Panel Allows user to set LVDS resolution. (Default: 1024x768) - LVDS signal divided into 1CH and 2CH. - 1CH: 1 Channel only support resolution up to 1366x768. Note - 2CH: 2 Channel support resolution higher than 1366x768. LVDS Output Allows user to set LVDS bit rate.

  • Page 50: Boot Menu

    MANO561 Mini ITX Motherboard Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout  Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Full Screen Logo Display.  Enable or disable full screen logo display feature.

  • Page 51: Security Menu

    MANO561 Mini ITX Motherboard Security Menu The Security menu allows users to change the security settings for the system. Administrator Password  Set administrator password. User Password  Set user password. ► Secure Boot AMI BIOS Setup Utility...
  • Page 52 MANO561 Mini ITX Motherboard Secure Boot  Secure Boot is a security standard to help ensure that devices will only boot using software trusted by original equipment manufacturers (OEMs). When the computer starts, this firmware checks the signature of every boot software, including UEFI firmware drivers (also called option Rom), EFI applications, and operating systems.

  • Page 53: Save & Exit Menu

    MANO561 Mini ITX Motherboard Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Discard Changes and Exit  Exit system setup without saving any changes. Save Changes and Reset ...

  • Page 54: Appendix A Watchdog Timer

    MANO561 Mini ITX Motherboard Appendix A Watchdog Timer About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 55 MANO561 Mini ITX Motherboard lpFnDll_Get_IO = (LPFNDLLGETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "GetIoSpaceByte"); lpFnDll_Set_IO = (LPFNDLLSETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "SetIoSpaceByte"); printf("Input Watch Dog Timer type, 1:Second ; 2:Minute :"); scanf("%d",&unit); printf("\nInput Timer to countdown:"); scanf("%d", &WDTtimer); printf("Start to countdown..."); //==Enter MB Pnp Mode== lpFnDll_Set_IO(0x2e, 0x87); lpFnDll_Set_IO(0x2e, 0x87); lpFnDll_Set_IO(0x2e, 0x07); lpFnDll_Set_IO(0x2f, 0x07);...

  • Page 56: Appendix B Digital I/O

    MANO561 Mini ITX Motherboard Appendix B Digital I/O B.1 About Digital I/O The onboard digital I/O has 8 bits. Each bit can be set to function as input or output by software programming. In default, all pins are pulled high with +5V level (according to main power). The BIOS default settings are 4 inputs and 4 outputs.
  • Page 57 MANO561 Mini ITX Motherboard //MessageBox("Load diodll dll error", "", MB_OK); (hinstLibDLL) lpFnDll_Get_IO = (LPFNDLLGETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "GetIoSpaceByte"); lpFnDll_Set_IO = (LPFNDLLSETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "SetIoSpaceByte"); printf("Input Watch Dog Timer type, 1:Second ; 2:Minute :"); scanf("%d",&unit); printf("\nInput Timer to countdown:"); scanf("%d", &WDTtimer); printf("Start to countdown..."); //==Enter MB Pnp Mode== lpFnDll_Set_IO(0x2e, 0x87);...
  • Page 58 MANO561 Mini ITX Motherboard lpFnDll_Set_IO(0x2e, 0x89); u89HData = lpFnDll_Get_IO(0x2f); u89HData = clrbit(u89HData, 3); lpFnDll_Set_IO(0x2f, u89HData); while //Get GPIO 8x Status lpFnDll_Set_IO(0x2e, 0x8A); u8AHData = lpFnDll_Get_IO(0x2f); lpFnDll_Set_IO(0x2f, u8AHData); (0x10 & u8AHData) //GPIO84 DI0 status DI0status = GPIO_HIGH; else DI0status = GPIO_LOW; (0x20 &...
  • Page 59 MANO561 Mini ITX Motherboard This page is intentionally left blank. Digital I/O...

  • Page 60: Appendix Cbios Update

    MANO561 Mini ITX Motherboard Appendix C BIOS Update With the BIOS-Flasher utility you can easily update motherboard BIOS without having to enter operating system. In this appendix you may learn how to do it in just a few steps. Please read and follow the instructions below carefully.
  • Page 61 MANO561 Mini ITX Motherboard After booting up, press <F12> to enter the BIOS update screen. Then press <F12> again to enter next screen. Now you can see ini figure below, the "fs0" is the detected USB device. If multiple USB flash drives or hard drives are connected, there will be several optional devices such as "fs1", "fs2"...
  • Page 62 MANO561 Mini ITX Motherboard Choose the new BIOS file, then press “Y”. The update will take a few minutes, do not turn off the power or interrupt the update process. Please wait until the utility completes the entire BIOS update process. The following screen will appear once the update is completed.
