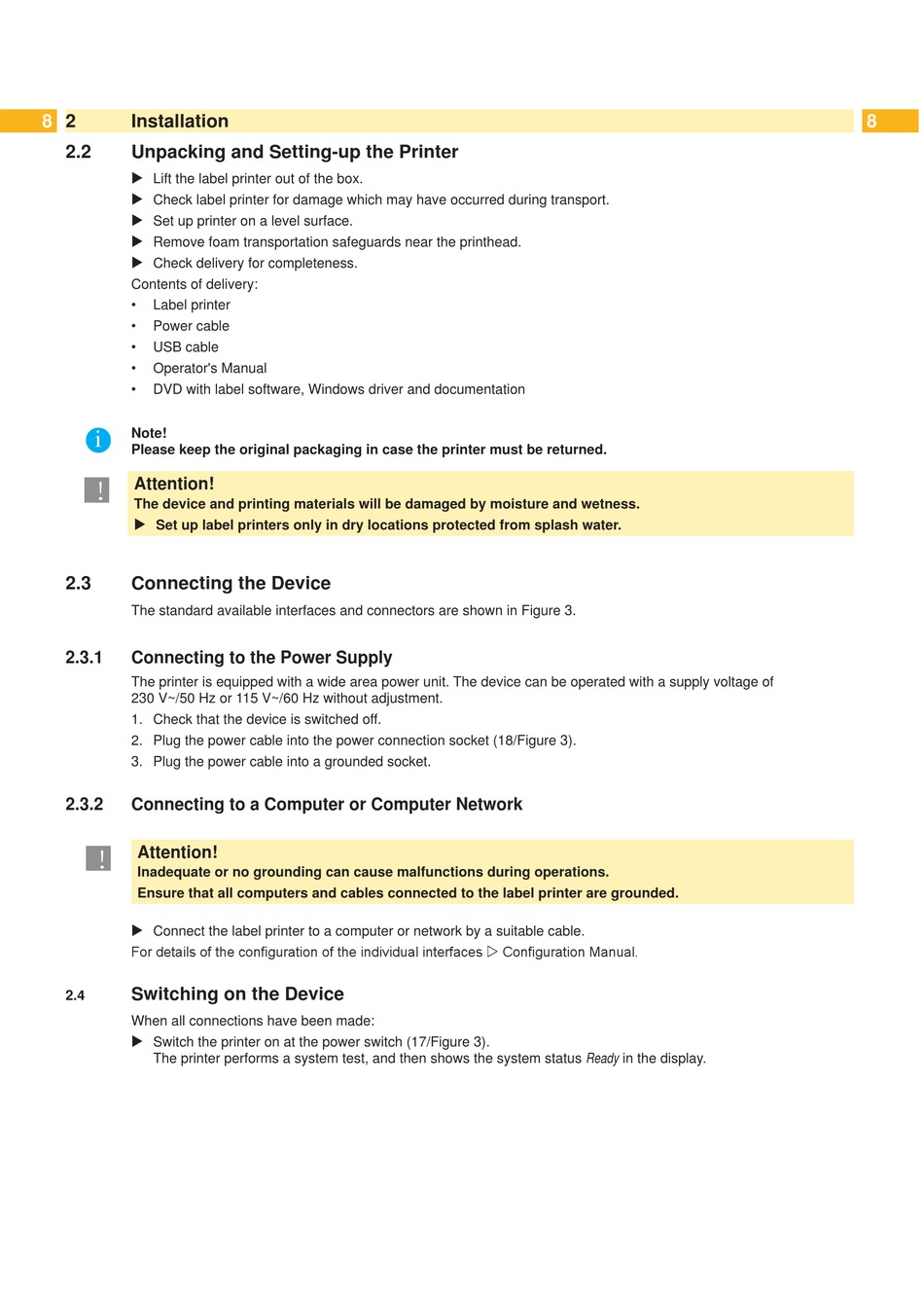

2 Installation
8
2.2

Unpacking and Setting-up the Printer

 Lift the label printer out of the box.
 Check label printer for damage which may have occurred during transport.
 Set up printer on a level surface.
 Remove foam transportation safeguards near the printhead.
 Check delivery for completeness.
Contents of delivery:
• Label printer
• Power cable
• USB cable
• Operator's Manual
• DVD with label software, Windows driver and documentation
i
Note!
Please keep the original packaging in case the printer must be returned.
!
Attention!
The device and printing materials will be damaged by moisture and wetness.
 Set up label printers only in dry locations protected from splash water.
2.3

Connecting the Device

The standard available interfaces and connectors are shown in Figure 3.
2.3.1

Connecting to the Power Supply

The printer is equipped with a wide area power unit. The device can be operated with a supply voltage of
230 V~/50 Hz or 115 V~/60 Hz without adjustment.
1. Check that the device is switched off.
2. Plug the power cable into the power connection socket (18/Figure 3).
3. Plug the power cable into a grounded socket.
2.3.2

Connecting to a Computer or Computer Network

!
Attention!
Inadequate or no grounding can cause malfunctions during operations.
Ensure that all computers and cables connected to the label printer are grounded.
 Connect the label printer to a computer or network by a suitable cable.
For details of the configuration of the individual interfaces  Configuration Manual.

Switching on the Device

2.4
When all connections have been made:
 Switch the printer on at the power switch (17/Figure 3).
The printer performs a system test, and then shows the system status Ready in the display.
