6

Cleaning

6.1

Cleaning Information

Danger!
Risk of death via electric shock!
 Disconnect the printer from the power supply before performing any maintenance work.
The label printer requires very little maintenance.
It is important to clean the thermal printhead regularly. This guarantees a consistently good printed image and plays a
major part in preventing premature wear of the printhead.
Otherwise, the maintenance is limited to monthly cleaning of the device.
!
Attention!
The printer can be damaged by aggressive cleansers.
Do not use abrasive cleaners or solvents for cleaning the external surfaces or modules.
 Remove dust and paper fluff from the print area with a soft brush or vacuum cleaner.
 The cover of the printer can be cleaned with a standard cleanser.
6.2

Cleaning the Print Roller

Accumulations of dirt on the print roller may impair the media transport and the print quality.
!
Attention!
Damage of the print roller.
 Do not use sharp objects (knives, screwdrivers, etc.) to clean the print roller.
1 2

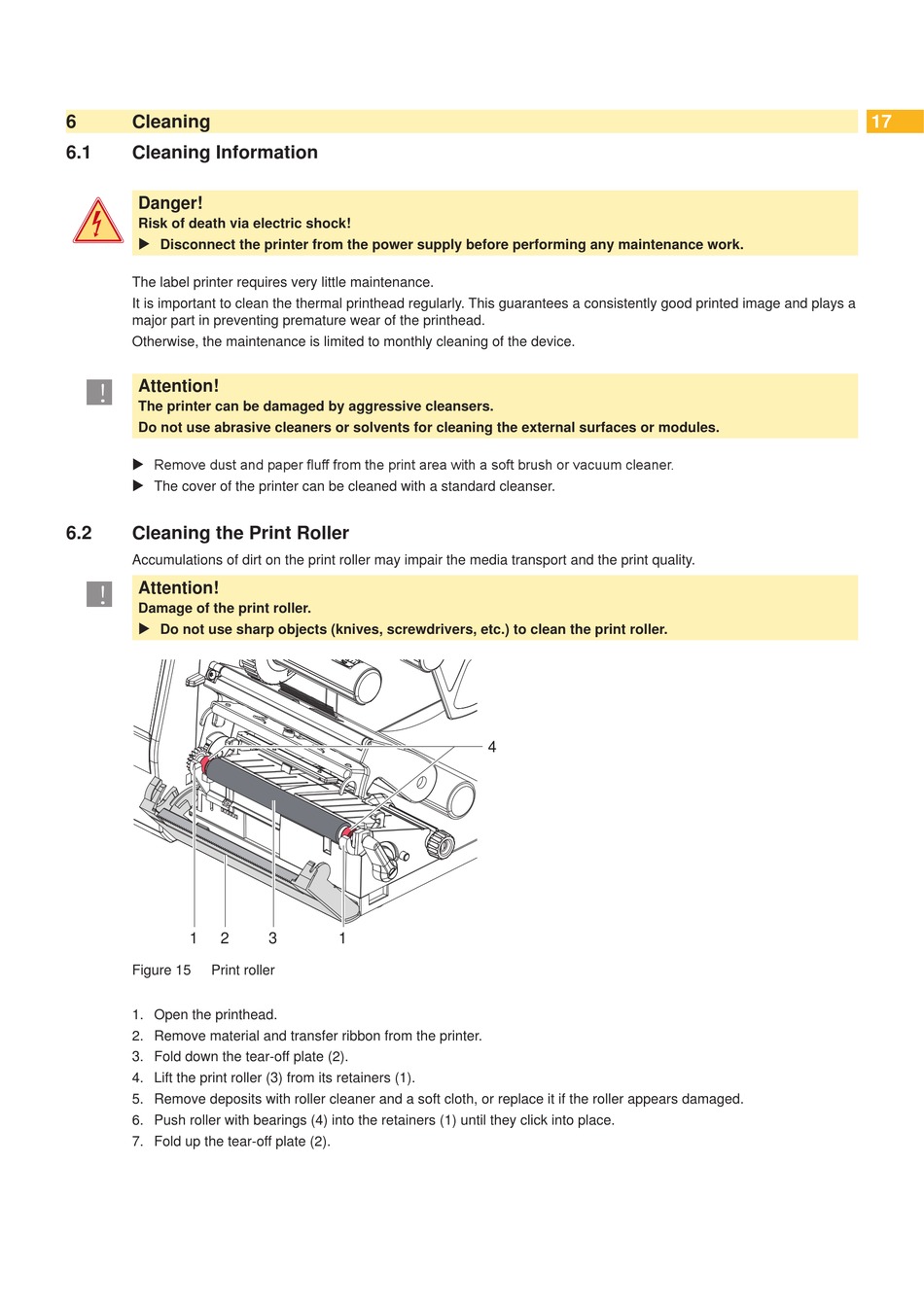

Figure 15 Print roller
1. Open the printhead.
2. Remove material and transfer ribbon from the printer.
3. Fold down the tear-off plate (2).
4. Lift the print roller (3) from its retainers (1).
5. Remove deposits with roller cleaner and a soft cloth, or replace it if the roller appears damaged.
6. Push roller with bearings (4) into the retainers (1) until they click into place.
7. Fold up the tear-off plate (2).
3 1
4
