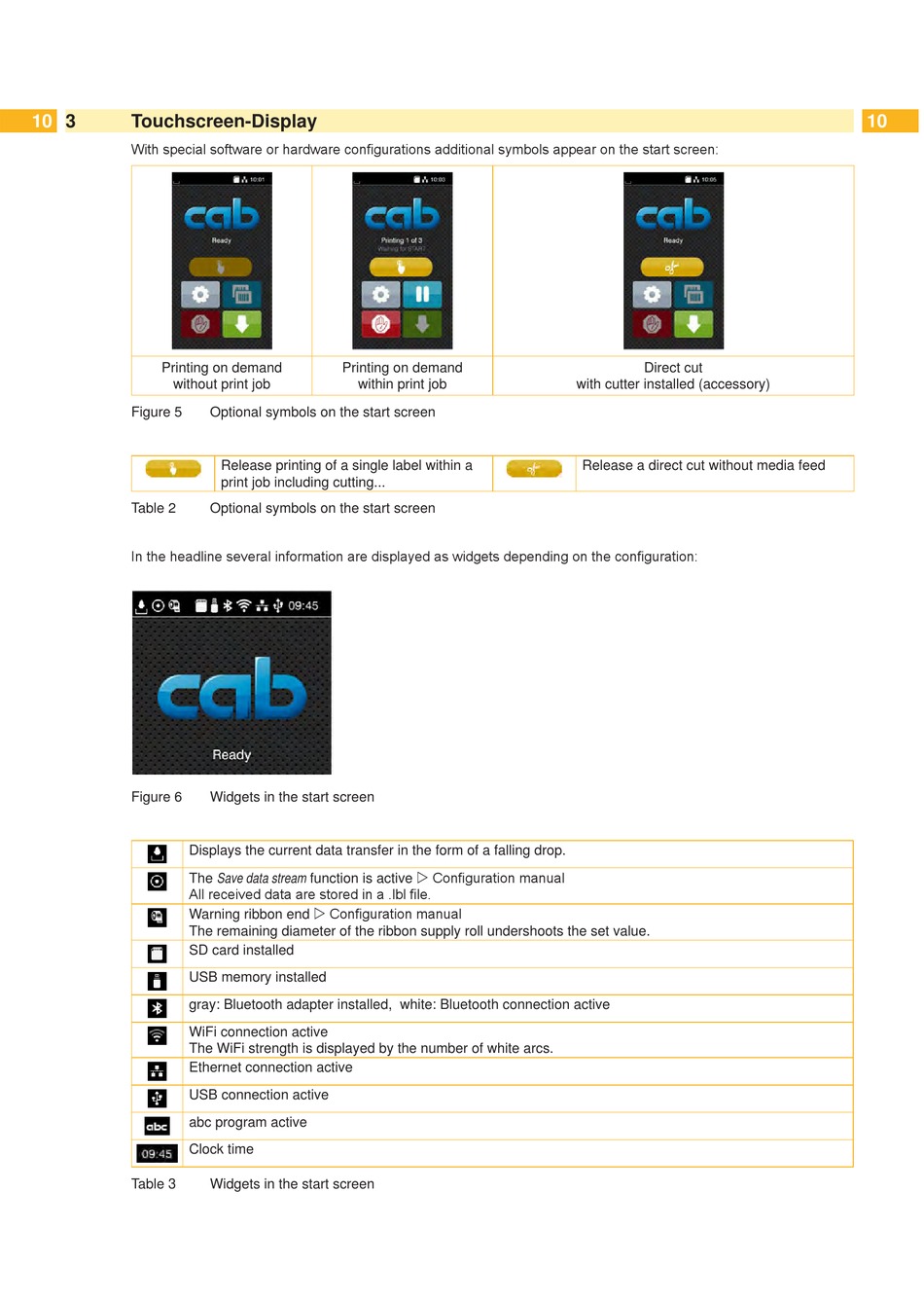

3 Touchscreen-Display
10
With special software or hardware configurations additional symbols appear on the start screen:
Printing on demand
without print job
Figure 5
Table 2
In the headline several information are displayed as widgets depending on the configuration:
Figure 6
Displays the current data transfer in the form of a falling drop.
The Save data stream function is active  Configuration manual
All received data are stored in a .lbl file.
Warning ribbon end  Configuration manual
The remaining diameter of the ribbon supply roll undershoots the set value.
SD card installed
USB memory installed
gray: Bluetooth adapter installed, white: Bluetooth connection active
WiFi connection active
The WiFi strength is displayed by the number of white arcs.
Ethernet connection active
USB connection active
abc program active
Clock time
Table 3
Printing on demand
within print job
Optional symbols on the start screen
Release printing of a single label within a
print job including cutting...
Optional symbols on the start screen
Widgets in the start screen
Widgets in the start screen
Direct cut
with cutter installed (accessory)
Release a direct cut without media feed
