Loading Material; Loading Media From Roll - CAB EOS2 Operator's Manual

4

Loading Material

12
4.1

Loading Media from Roll

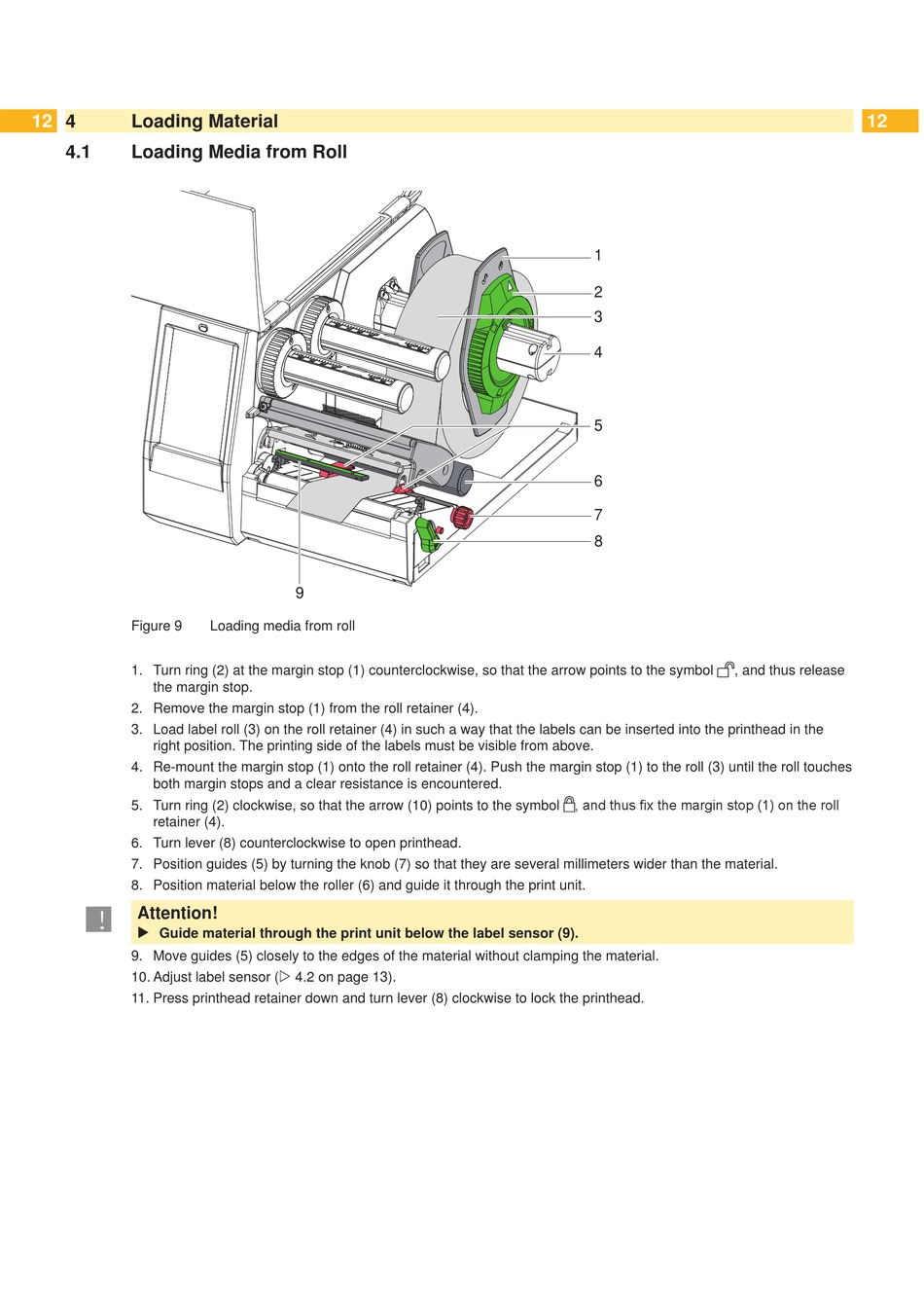

Figure 9
1. Turn ring (2) at the margin stop (1) counterclockwise, so that the arrow points to the symbol
the margin stop.
2. Remove the margin stop (1) from the roll retainer (4).
3. Load label roll (3) on the roll retainer (4) in such a way that the labels can be inserted into the printhead in the
right position. The printing side of the labels must be visible from above.
4. Re-mount the margin stop (1) onto the roll retainer (4). Push the margin stop (1) to the roll (3) until the roll touches
both margin stops and a clear resistance is encountered.
5. Turn ring (2) clockwise, so that the arrow (10) points to the symbol
retainer (4).
6. Turn lever (8) counterclockwise to open printhead.
7. Position guides (5) by turning the knob (7) so that they are several millimeters wider than the material.
8. Position material below the roller (6) and guide it through the print unit.
!
Attention!
 Guide material through the print unit below the label sensor (9).
9. Move guides (5) closely to the edges of the material without clamping the material.
10. Adjust label sensor ( 4.2 on page 13).
11. Press printhead retainer down and turn lever (8) clockwise to lock the printhead.
9
Loading media from roll
1
2
3
4
5
6
7
8
, and thus release
, and thus fix the margin stop (1) on the roll
12
