8 Media
8.4

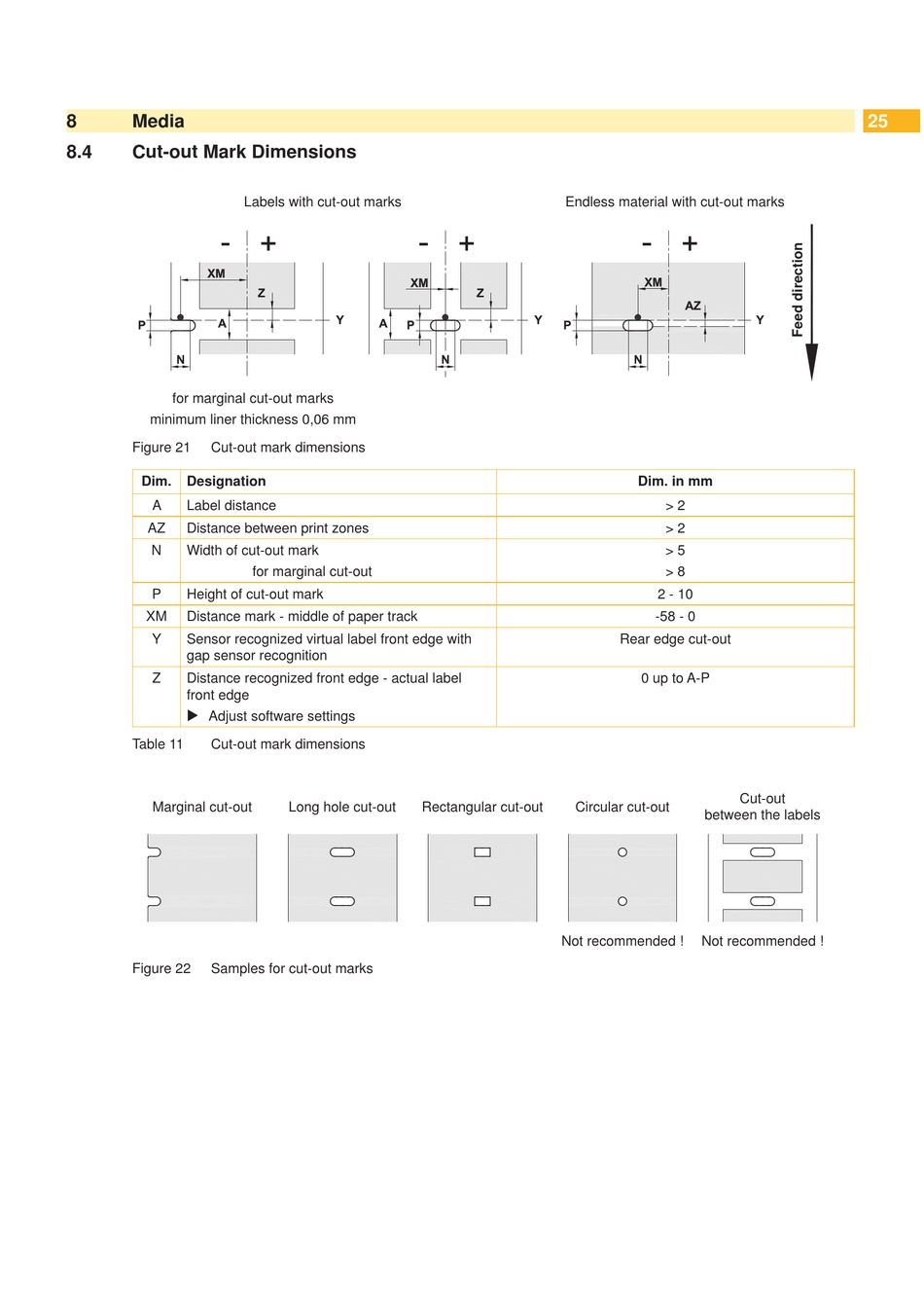

Cut-out Mark Dimensions

for marginal cut-out marks
minimum liner thickness 0,06 mm
Figure 21 Cut-out mark dimensions
Dim. Designation
A Label distance
AZ Distance between print zones
N Width of cut-out mark
P Height of cut-out mark
XM Distance mark - middle of paper track
Y Sensor recognized virtual label front edge with
gap sensor recognition
Z Distance recognized front edge - actual label
front edge
 Adjust software settings
Table 11 Cut-out mark dimensions
Marginal cut-out
Figure 22 Samples for cut-out marks
Labels with cut-out marks
for marginal cut-out
Long hole cut-out
Endless material with cut-out marks
Rectangular cut-out Circular cut-out
Not recommended !
Dim. in mm
> 2
> 2
> 5
> 8
2 - 10
-58 - 0
Rear edge cut-out
0 up to A-P
Cut-out
between the labels
Not recommended !
25
