Reflex Mark Dimensions - CAB EOS2 Operator's Manual

8 Media
24

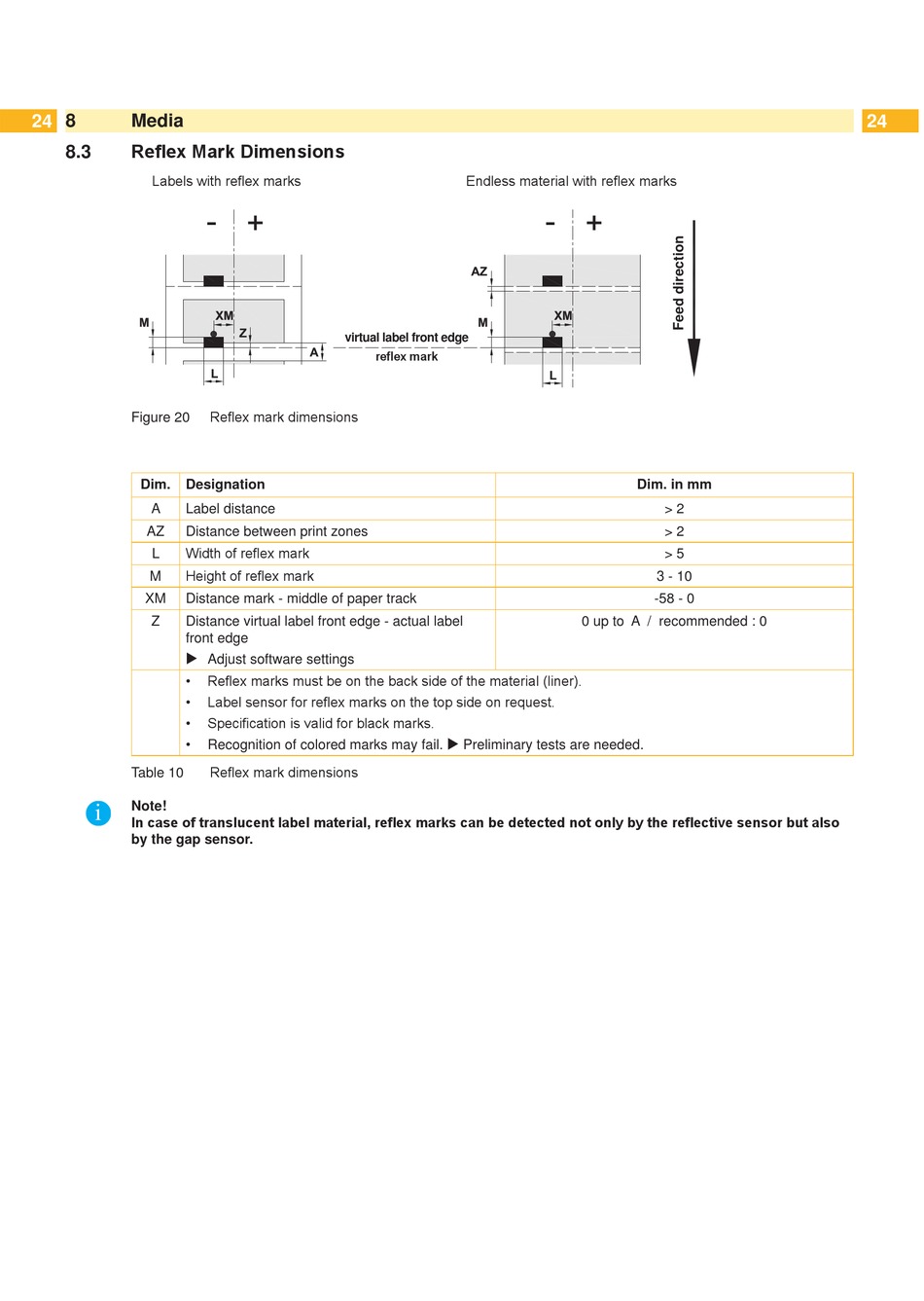

Reflex Mark Dimensions

8.3
Labels with reflex marks
Figure 20
Dim. Designation
A Label distance
AZ Distance between print zones
Width of reflex mark
L
Height of reflex mark
M
XM Distance mark - middle of paper track
Z Distance virtual label front edge - actual label
front edge
 Adjust software settings
•
•
•
•
Table 10
i
Note!
In case of translucent label material, reflex marks can be detected not only by the reflective sensor but also
by the gap sensor.
virtual label front edge
reflex mark
Reflex mark dimensions
Reflex marks must be on the back side of the material (liner).
Label sensor for reflex marks on the top side on request.
Specification is valid for black marks.
Recognition of colored marks may fail.  Preliminary tests are needed.
Reflex mark dimensions
Endless material with reflex marks
Dim. in mm
0 up to A / recommended : 0
> 2
> 2
> 5
3 - 10
-58 - 0
24
