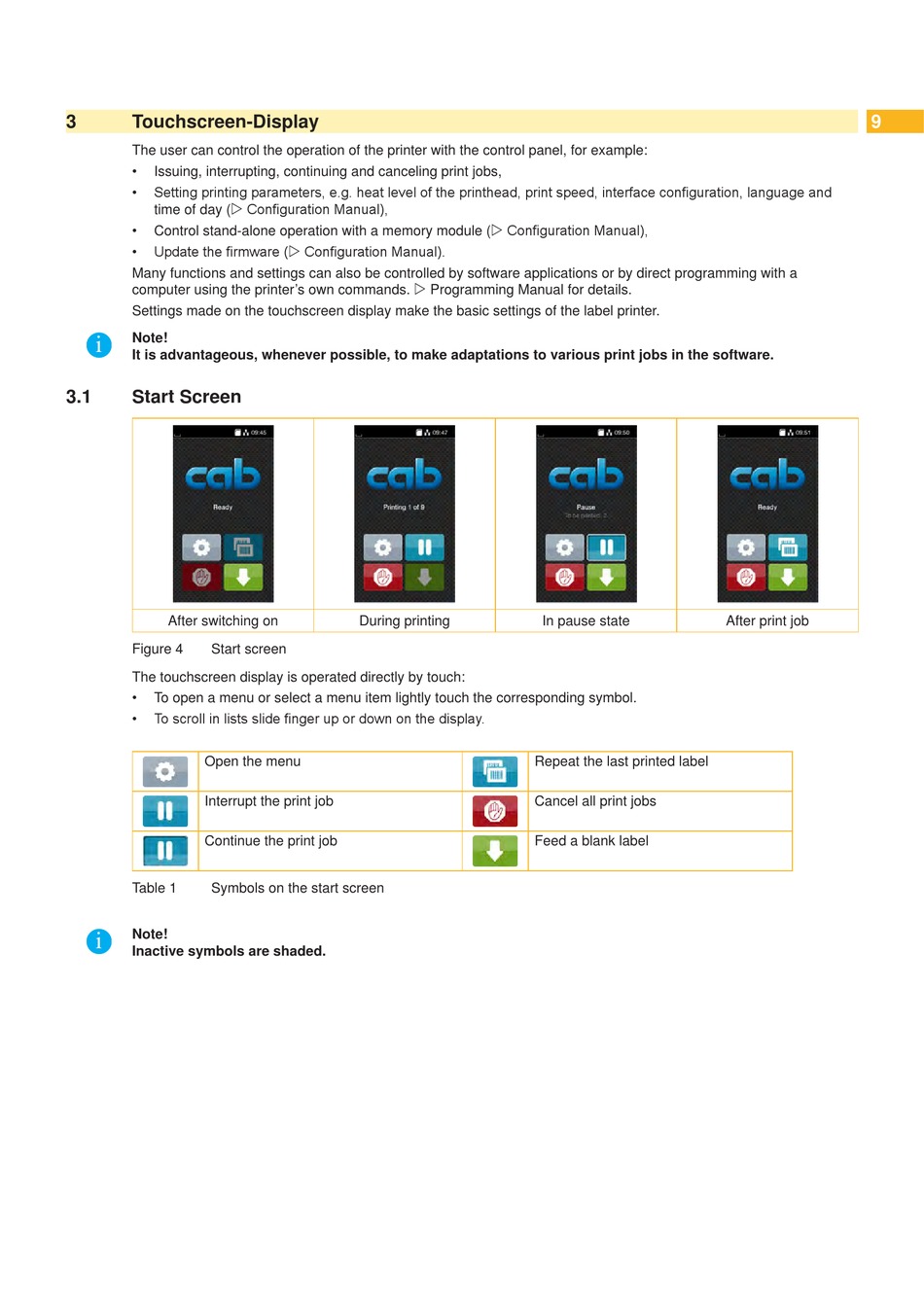

Touchscreen-Display

The user can control the operation of the printer with the control panel, for example:
• Issuing, interrupting, continuing and canceling print jobs,
Setting printing parameters, e.g. heat level of the printhead, print speed, interface configuration, language and
•
time of day ( Configuration Manual),
• Control stand-alone operation with a memory module ( Configuration Manual),
Update the firmware ( Configuration Manual).
•
Many functions and settings can also be controlled by software applications or by direct programming with a
computer using the printer's own commands.  Programming Manual for details.
Settings made on the touchscreen display make the basic settings of the label printer.
i
Note!
It is advantageous, whenever possible, to make adaptations to various print jobs in the software.
3.1

Start Screen

After switching on
Figure 4 Start screen
The touchscreen display is operated directly by touch:
• To open a menu or select a menu item lightly touch the corresponding symbol.
To scroll in lists slide finger up or down on the display.
•
Open the menu
Interrupt the print job
Continue the print job
Table 1 Symbols on the start screen
i
Note!
Inactive symbols are shaded.
During printing In pause state
Repeat the last printed label
Cancel all print jobs
Feed a blank label
9
After print job
