8 Media
8.2

Device Dimensions

Gap sensor
& Reflective sensor
Printhead
Tear-off edge
Cut edge

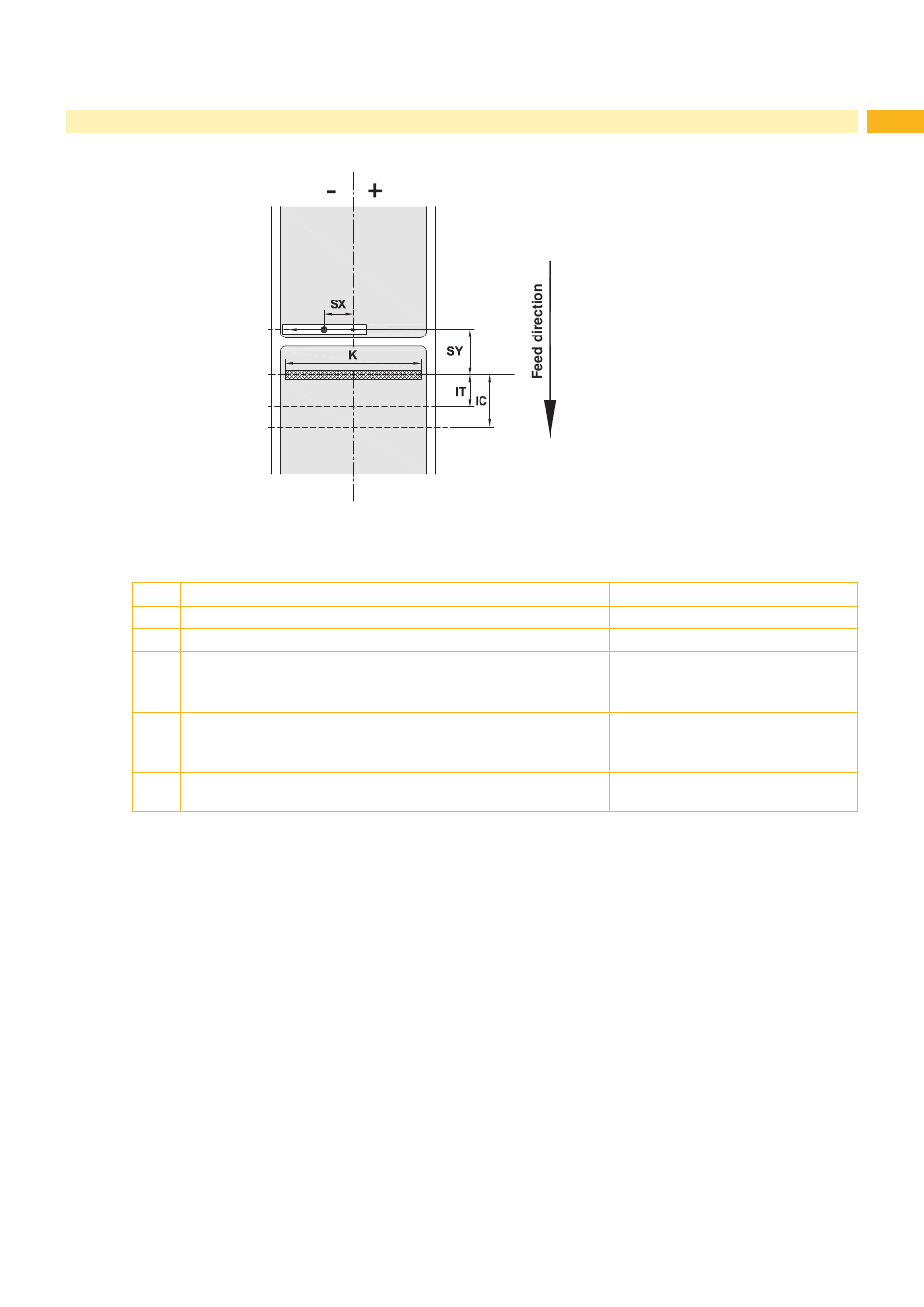

Figure 19 Device dimensions
Dim. Designation
IT Distance printhead - tear-off edge
IC Distance printhead - cut edge
K Print width
Distance gap/reflective sensor - middle of paper track
SX
i.e. permissible distance of reflex or cut-out marks from the middle
of the material
Distance gap/reflective sensor -
SY
printhead
Table 9 Device dimensions
Dim. in mm
13,7
20,3
203 dpi 108,0
300 dpi 105,7
-58 - 0
44,9
23
