Setting The Feed Path Of The Transfer Ribbon - CAB EOS2 Operator's Manual

4 Loading Material
4.4

Setting the Feed Path of the Transfer Ribbon

Transfer ribbon wrinkling can lead to print image errors. The transfer ribbon deflection (2) can be adjusted so as to
prevent wrinkles.
1 2

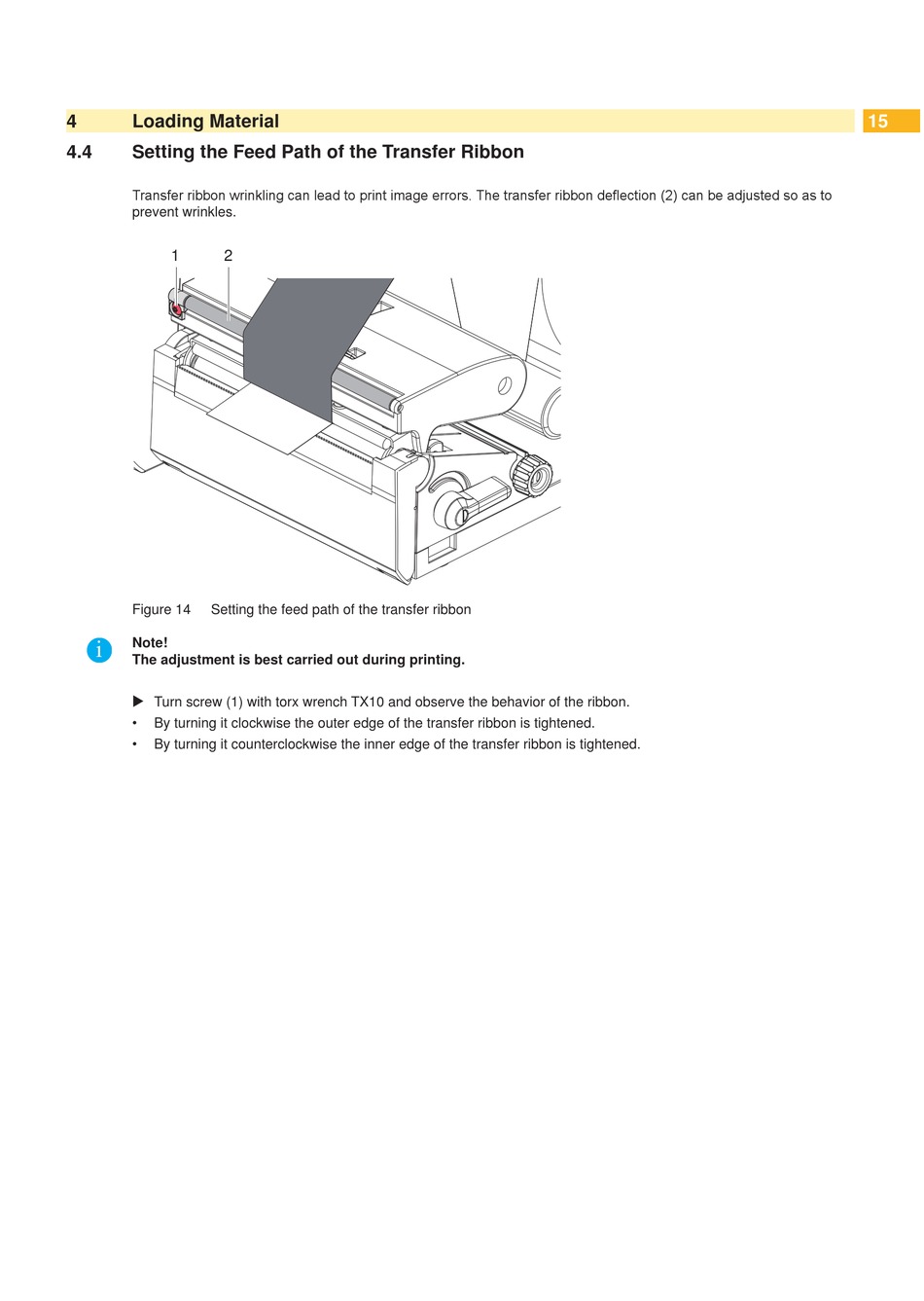

Figure 14 Setting the feed path of the transfer ribbon
i
Note!
The adjustment is best carried out during printing.
 Turn screw (1) with torx wrench TX10 and observe the behavior of the ribbon.
• By turning it clockwise the outer edge of the transfer ribbon is tightened.
• By turning it counterclockwise the inner edge of the transfer ribbon is tightened.
