3 Touchscreen-Display
3.2

Navigation in the Menu

Start level

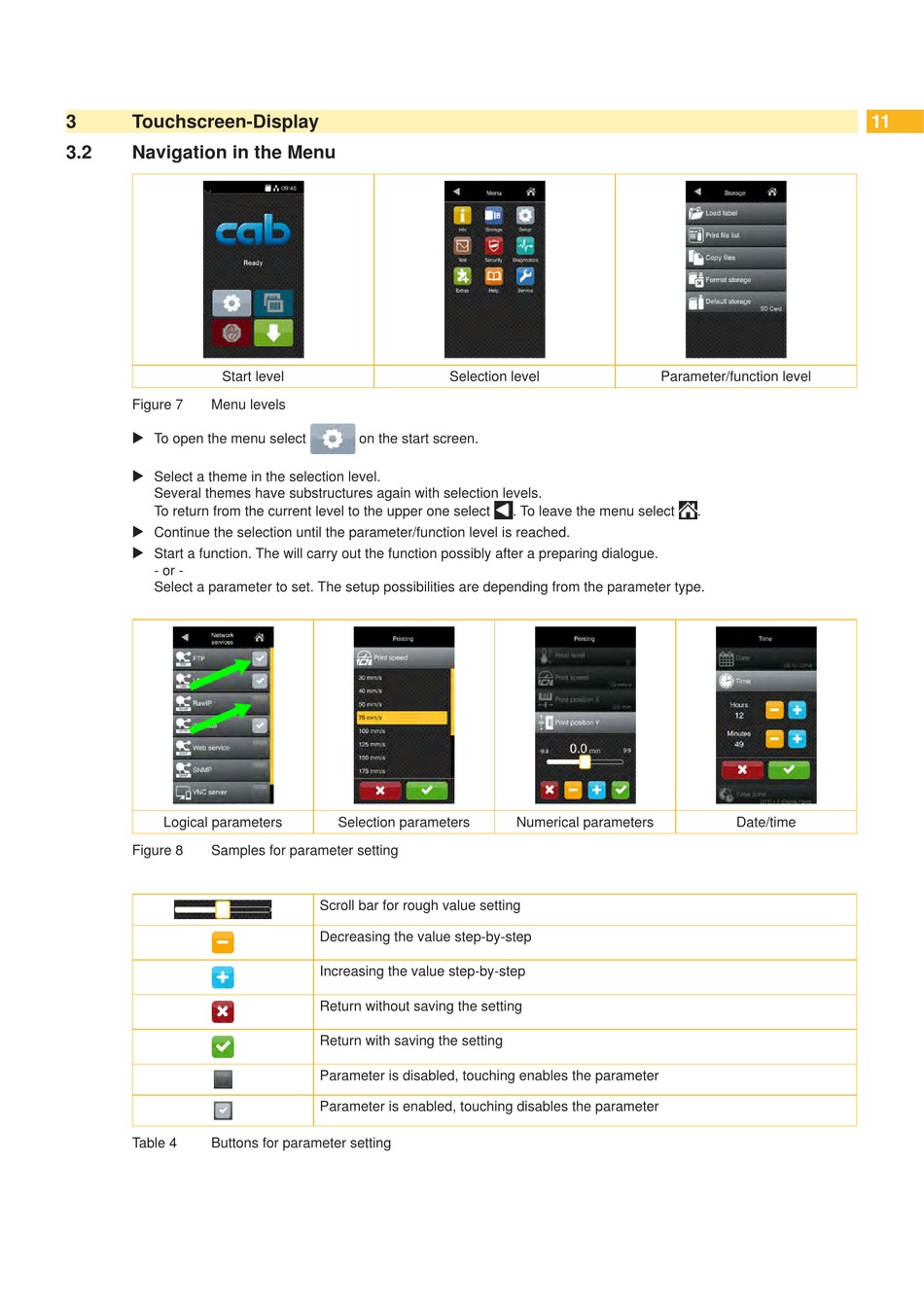

Figure 7 Menu levels
 To open the menu select
 Select a theme in the selection level.
Several themes have substructures again with selection levels.
To return from the current level to the upper one select
 Continue the selection until the parameter/function level is reached.
 Start a function. The will carry out the function possibly after a preparing dialogue.
- or -
Select a parameter to set. The setup possibilities are depending from the parameter type.
Logical parameters
Figure 8 Samples for parameter setting
Table 4 Buttons for parameter setting
Selection level
on the start screen.
Selection parameters
Scroll bar for rough value setting
Decreasing the value step-by-step
Increasing the value step-by-step
Return without saving the setting
Return with saving the setting
Parameter is disabled, touching enables the parameter
Parameter is enabled, touching disables the parameter
Parameter/function level
. To leave the menu select
Numerical parameters
11
.
Date/time
