2 Installation

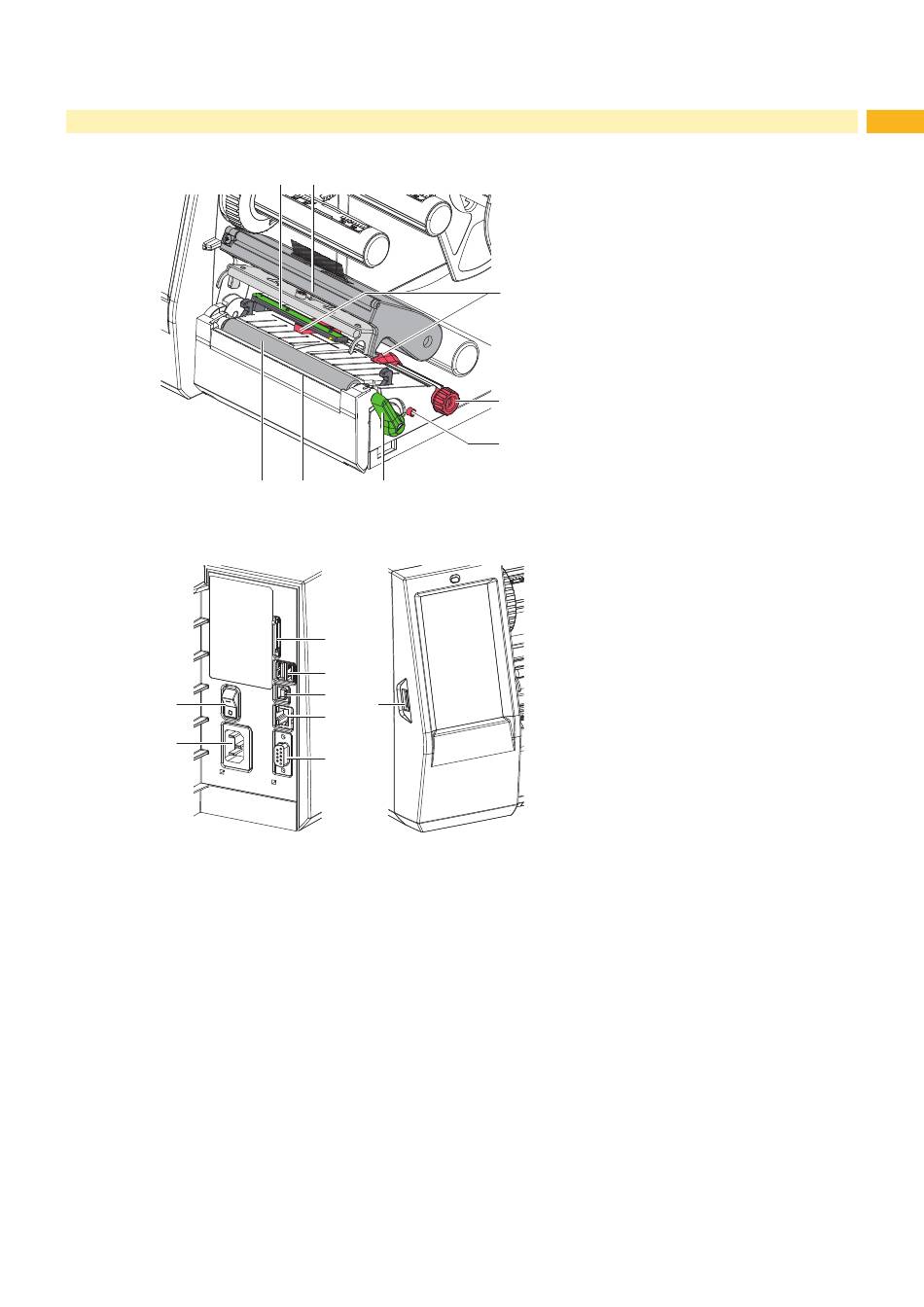

Figure 2 Print unit
17
18
Figure 3 Connections
9 10
16 15 14
19
20
21
24
22
23
9 Label sensor
10 Printhead retainer with printhead
11
11 Margin stop
12 Knob for adjusting the guides
13 Knob for adjusting the label sensor
14 Lever for locking the printhead
15 Tear-off plate
16 Print roller
12
13
17 Power switch
18 Power connection jack
19 Slot for SD card
20 2 USB master ports for keyboard,
scanner, USB memory stick, Bluetooth
adapter, service key or WiFi stick
21 USB full-speed slave port
22 Ethernet 10/100 Base-T
23 Serial RS-232 port
24 USB master port for keyboard,
scanner, USB memory stick, Bluetooth
adapter, service key or WiFi stick
