Operator's Manual
Cutter
EOS2 / EOS5
Made in Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOS2 and is the answer not in the manual?

Questions and answers

Related Manuals for CAB EOS2

Summary of Contents for CAB EOS2

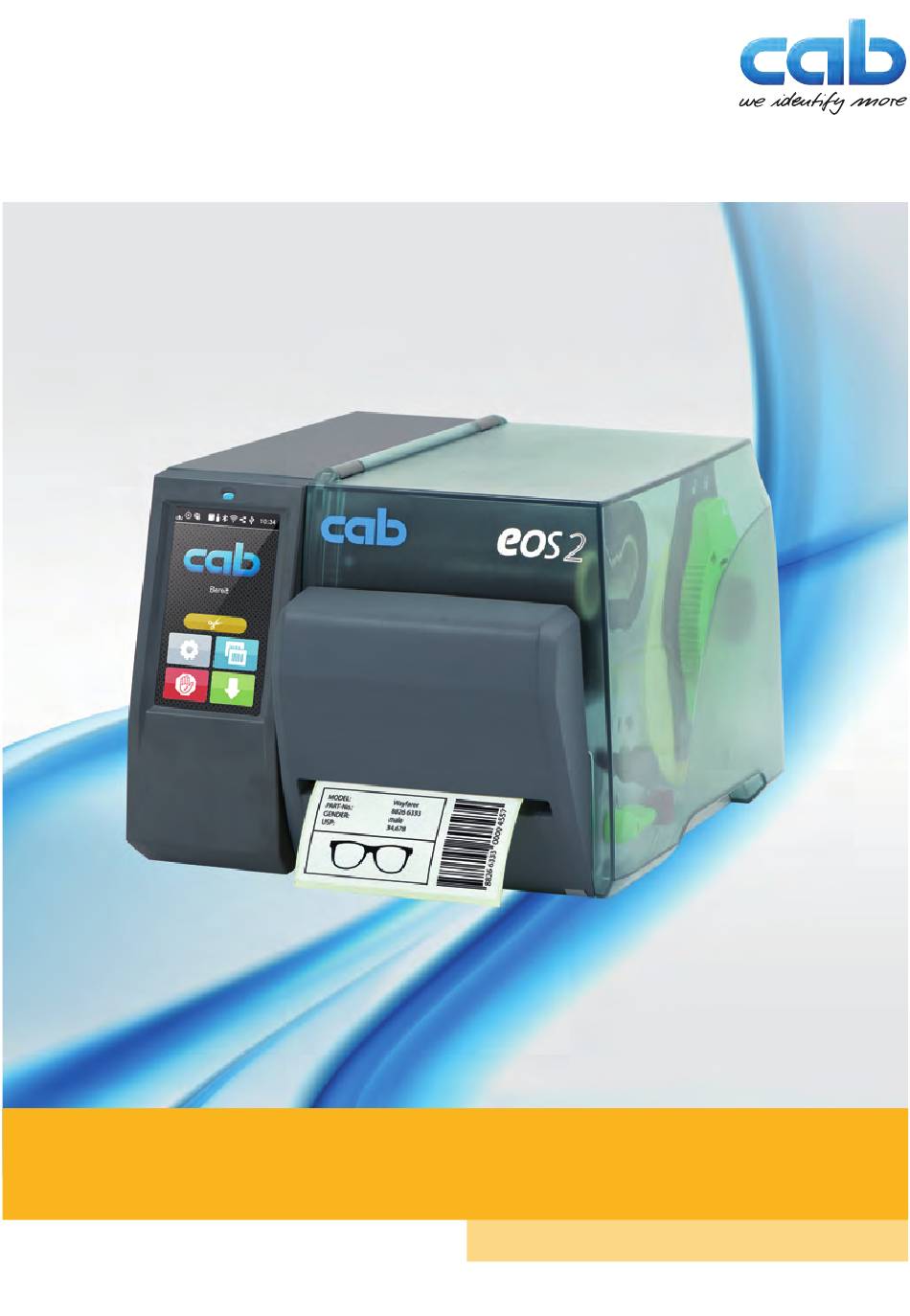

  • Page 1 Operator's Manual Cutter EOS2 / EOS5 Made in Germany...
  • Page 2 Operator's Manual Edition: 10/2018 - Part No. 9003263 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.

  • Page 3: Table Of Contents

    Table of Contents Introduction ..................4 Instructions ..................4 Intended Use ...................5 Safety Instructions ................6 Environment ..................6 Technical Data .................6 Mounting ..................7 Removing the Tear-off Plate ............7 Mounting the Cutter .................8 Operation ..................9 Loading Material ................9 Reference to the Programming ............9 Standard Operation ...............10 Cutting on Demand ................10 Printer Configuration ..............

  • Page 4: Introduction

    Introduction 1.1 Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws your attention to an exceptionally grave, impending danger to your health or life. Warning! Indicates a hazardous situation that could lead to injuries or material damage.

  • Page 5: Intended Use

    Introduction 1.2 Intended Use • The device is intended exclusively as an option for the printers of the EOS series for cutting suitable materials that have been approved by the manufacturer. Any other use or use going beyond this shall be regarded as improper use.

  • Page 6: Safety Instructions

     Send the parts for recycling.  Take the electronic circuit boards to public waste disposal centers or to the distributor. 1.5 Technical Data Cutter EOS2 EOS5 for printer type EOS2 EOS5 ≥ 10 Cutting length ≤...

  • Page 7: Mounting

    Mounting 2.1 Removing the Tear-off Plate Before mounting the cutter the tear-off plate mounted on the printer must be removed. Figure 1 Removing the tear-off plate  Fold down the tear-off plate (1), pull the axles (2) of the tear-off plate out of the holders (3) and remove the tear-off plate.

  • Page 8: Mounting The Cutter

    Mounting 2.2 Mounting the Cutter Figure 2 Mounting the cutter 1. Put snap arm (2) of the cutter (5) into the guide (1). 2. Push the axles (3) into the holders (4). 3. Fold up cutter (5) so that it snaps in on the printer.

  • Page 9: Operation

    Operation 3.1 Loading Material  Fold down the cutter.  Insert labels for tear-off mode  Operator's manual of the printer. Place the media strip between the printhead and the drive roller, so that the front edge of the strip reaches through the cutter. Figure 3 Guiding the labels into the cutter ...

  • Page 10: Standard Operation

    Operation 3.3 Standard Operation  Switch on the printer. The cutter performs a synchronization action. Note! To operate the cutter with continuous material in the printer menu Setup - > Labels - > Label sensor the setting Continuous media has to be selected.

  • Page 11: Printer Configuration

    Printer Configuration Note! The values of the setup are basic settings for the current printer/ cutter combination. After changing the cutter or printer a re-adjustment may be necessary. Changes required for processing different print jobs should be implemented by additional offsets available in the software. The offset values from setup and software are added together for execution.
  • Page 12 Printer Configuration Backfeed  Start menu.  Select Setup > Printing. Parameter Meaning Default Backfeed smart Method for backfeeding the label medium. Backfeeding is necessary in the cutting and peel-off modes since a label is pushed out passed the front edge of the next label above the print line when peeling off/cutting.

  • Page 13: Cleaning And Replacing The Blades

    Cleaning and Replacing the Blades Warning!  Disconnect the printer from the electrical outlet. Warning! Risk of injury. The cutter blades are sharp. Notice! When cutting through the label material instead of the label gap remains of adhesive may accumulate on the blades. If operating in backfeed mode, such remains of adhesive may be deposited on the drive roller as well.
  • Page 14 Cleaning and Replacing the Blades Figure 5 Replacing the Blades Figure 6 Springs 4. If the blades are very dirty with residues of adhesive or if they are worn, change blades:  Turn the shaft (6) clockwise using a torx wrench TX10 until the gear racks (7) cannot engage anymore.

  • Page 15: Licenses

    • Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment EU Declaration of Conformity https://www.cab.de/media/pushfile.cfm?file=3311  6.2 FCC NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

This manual is also suitable for:

Eos5
