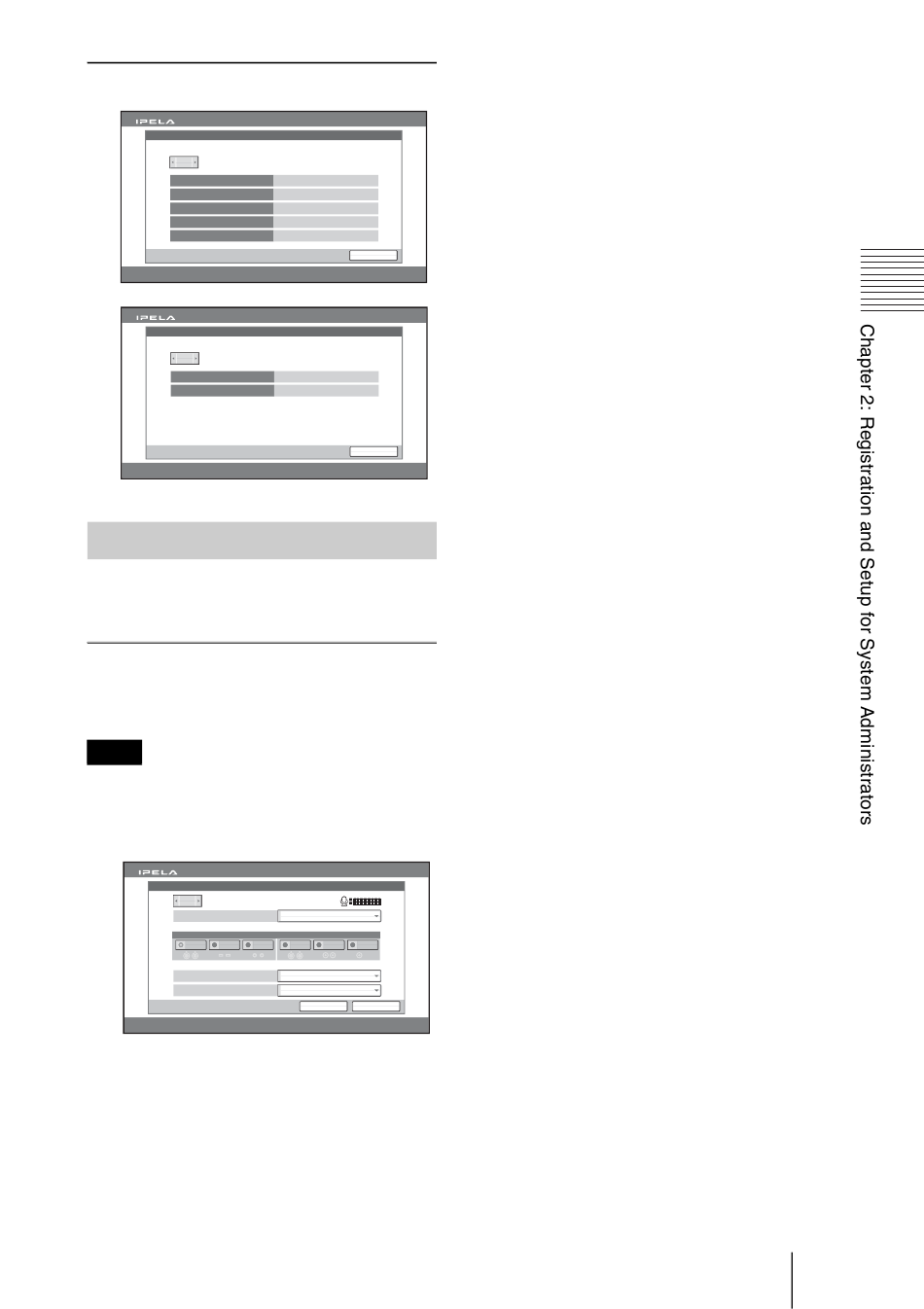

Audio Setup Menu

The Audio Setup menu is used to set various
audio items.
Page 1/4
The level meter indicating the audio input
level is displayed.
Note
When "Link to Audio Input" (page 43) of
Video Setup is set to "On", "Input Select" and
"AUDIO IN" cannot be selected.
Audio Setup
1/4
Page:
Input Select
AUDIO IN
MIC
EC-MIC(A7)
A1/A3
Input Mode
Output Mode
Input Select
Allows you to select the audio input.
MIC: Inputs audio from the microphones.
AUX: Inputs audio from auxiliary external
equipment.
2005.12.28 12:34
VIDEO IN
AUDIO IN
VIDEO OUT
100Mbps Full Duplex
Registration Confirmed
End
2005.12.28 12:34
VIDEO IN
AUDIO IN
End
2005.12.28 12:34
L
R
MIC
AUX1
AUX2
HD-SDI
Stereo
Stereo
Save
Cancel
MIC+AUX: Inputs audio from the
microphones and auxiliary external
equipment.
AUDIO IN
Allows you to select the microphone to be
used and the audio input from auxiliary
external equipment.
MIC: Uses the microphones connected to
the AUDIO IN MIC connectors.
EC-MIC (A7): Uses the PCSA-A7 echo
canceling microphones connected to the
MIC EC-MIC(A7) jacks.
A1/A3: Uses the PCS-A1 or PCSA-A3
microphones connected to the MIC
A1/A3 jacks.
AUX1: Inputs audio from the external
equipment connected to the AUDIO IN
AUX1 connectors.
AUX2: Inputs audio from the external
equipment connected to the AUDIO IN
AUX2 connectors.
HD-SDI:Inputs audio from external
equipment connected to the HD-SDI 1
or HD-SDI 2 connector. When the "HD-
SDI 2" is selected in the Video Setting
menu, the audio from the HD-SDI 2
connector is input. When the other
setting is selected, the audio from the
HD-SDI 1 connector is input.
Input Mode
Allows you to select the audio input mode.
Stereo: Inputs audio to the AUDIO IN R
and L connectors/jacks as stereo left and
right sounds.
Monaural: Inputs audio to the AUDIO IN R
and L connectors/jacks as monaural
sound.
Output Mode
Allows you to select the audio output mode.
Stereo: Outputs audio from the AUDIO
OUT R and L connector/jacks as stereo
left and right sounds.
Monaural: Outputs audio from the AUDIO
OUT R and L connectors/jacks as two-
channel monaural sound.
Registering Local Information
41
