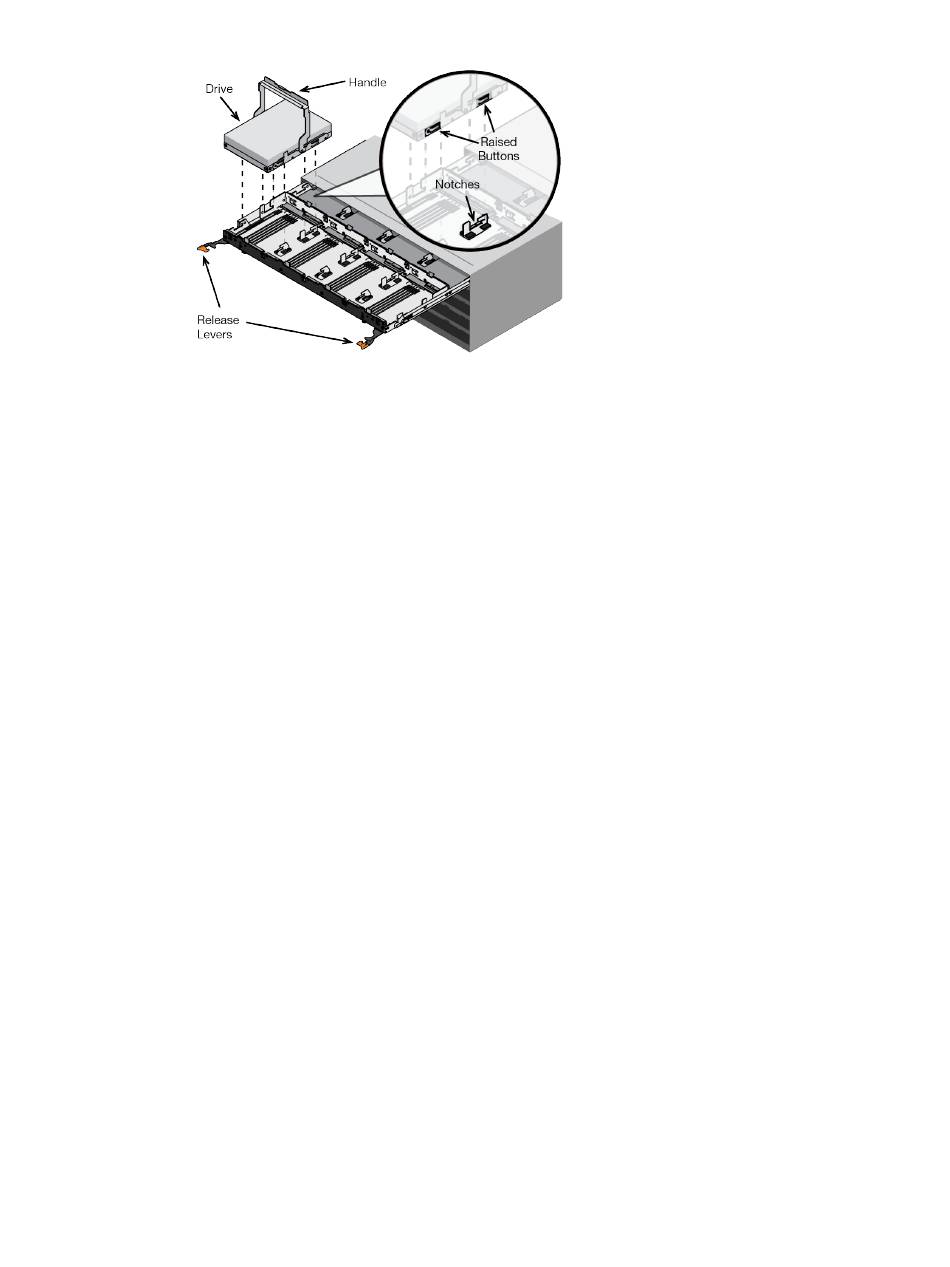

d. Pressing gently on the top of the drive, rotate the drive handle down until the drive snaps into
place.
e. After installing the first 12 drives, slide the drawer back in by pushing on the center and
closing both levers gently.
f. Repeat these steps for the other four drawers.
6. Attach the front bezel.

Cabling the appliance

You must connect the two controllers to each other, connect the management ports on each controller,
and connect the 10/25-GbE ports on the E5700SG controller to the Grid Network and optional Client
Network for StorageGRID Webscale.
Before you begin
• You have Ethernet cables for connecting the management ports.
• You have optical cables for connecting the four 10/25-GbE ports (these are not provided with the
appliance).
• If you plan to use the 25-GbE link speed for these ports, you have SFP28 transceivers.
Eight SFP+ transceivers are included with the appliance shipment. These transceivers
Note:
support either 10GbE or 16Gbps FC and can be used with the two interconnect ports on both
controllers and with the four 10GbE/25GbE network ports on the E5700SG controller (assuming
you want the network ports to use a 10-GbE link speed).
Caution: Risk of exposure to laser radiation – Do not disassemble or remove any part of an SFP
transceiver. You might be exposed to laser radiation.
About this task
The figure shows the two controllers in the SG5760, with the E2800 controller on the top and the
E5700SG controller on the bottom. In the SG5712, the E2800 controller is to the left of the E5700SG
controller when viewed from the back.
