Cabling the appliance

You must connect the two controllers to each other with SAS interconnect cables, connect the
management ports to the appropriate management network, and connect the 10 GbE ports on the
E5600SG controller to the Grid network and optional Client network for StorageGRID Webscale.
About this task

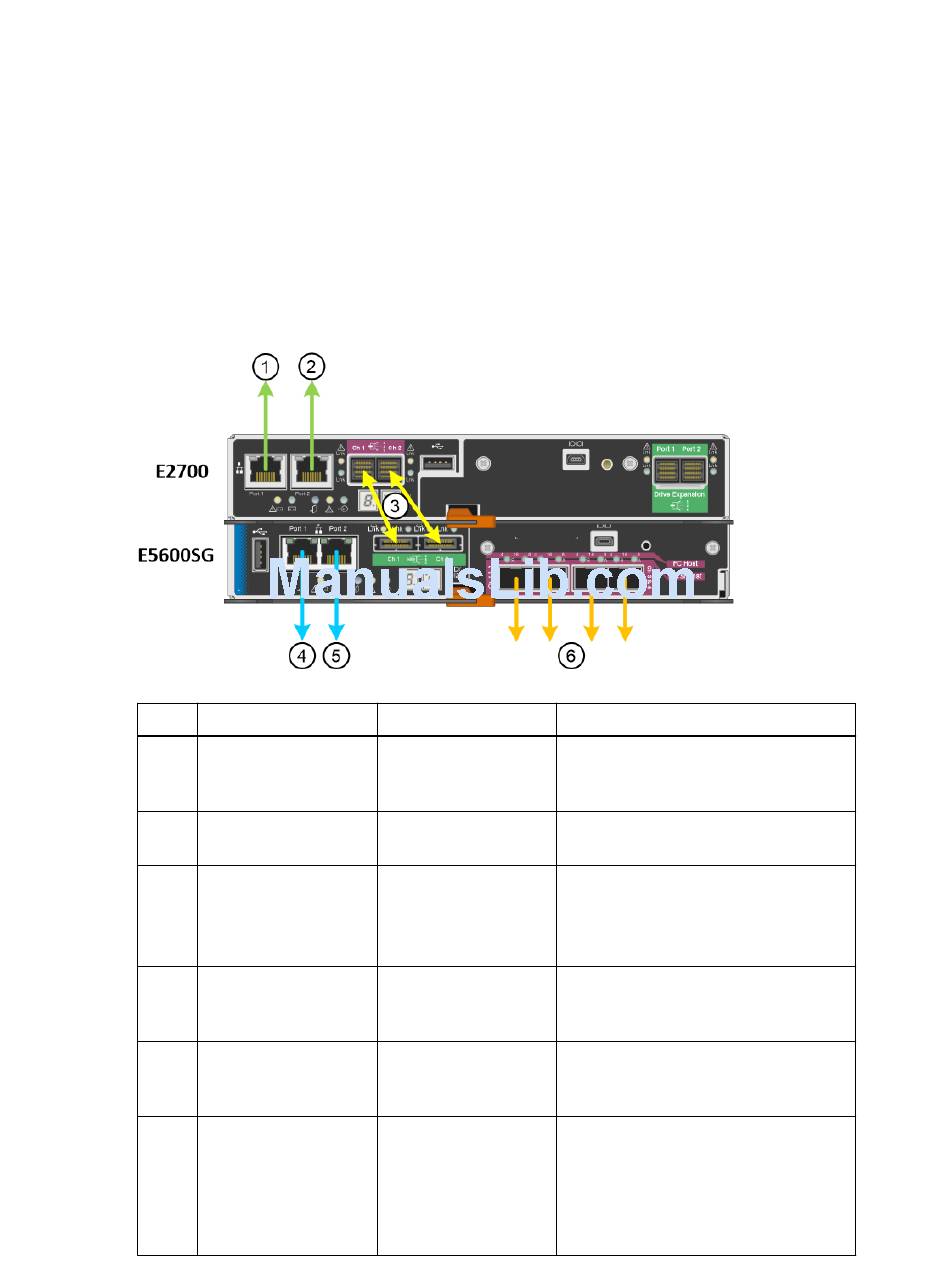

When connecting the cables, refer to the following diagram, which shows the E2700 controller on the
top and the E5600SG controller on the bottom. The diagram shows the SG5660 model; the
controllers in the SG5612 model are side by side instead of stacked.
Item Port
1 Management port 1 on
the E2700 controller
2 Management port 2 on
the E2700 controller
3 Two SAS interconnect
ports on each
controller, labelled Ch
1 and Ch 2
4 Management port 1 on
the E5600SG
controller
5 Management port 2 on
the E5600SG
controller
6 Four network ports on
the E5600SG
controller
Type of port Function
1-Gb (RJ-45) Ethernet Connects the E2700 controller to the
network where SANtricity Storage
Manager is installed.
1-Gb (RJ-45) Ethernet Connects the E2700 controller to a
service laptop during installation.
E2700 controller: Connect the two controllers to each
mini-SAS-HD other.
E5600SG controller:
mini-SAS
1-Gb (RJ-45) Ethernet Connects the E5600SG controller to the
Admin network for StorageGRID
Webscale.
1-Gb (RJ-45) Ethernet Connects the E5600SG controller to a
service laptop during installation.
10-GbE (optical) Connect the E5600SG controller to the
Grid network and to the Client network
(if used) for StorageGRID Webscale.
The ports can be bonded together to
provide redundant paths to the
controller.
