protocol access to the grid, so the Grid Network can be isolated and secured. The Client Network
is optional.
• Management network for SANtricity System Manager: This network provides access to
SANtricity System Manager on the E2800 controller, allowing you to monitor and manage the
hardware components in the appliance. This management network can be the same as the Admin
Network for StorageGRID Webscale, or it can be an independent management network.
Note: For detailed information about StorageGRID Webscale networks, see the appropriate
StorageGRID Webscale Installation Guide .
StorageGRID Webscale appliance connections
When you install a StorageGRID Webscale appliance, you must connect the two controllers to each

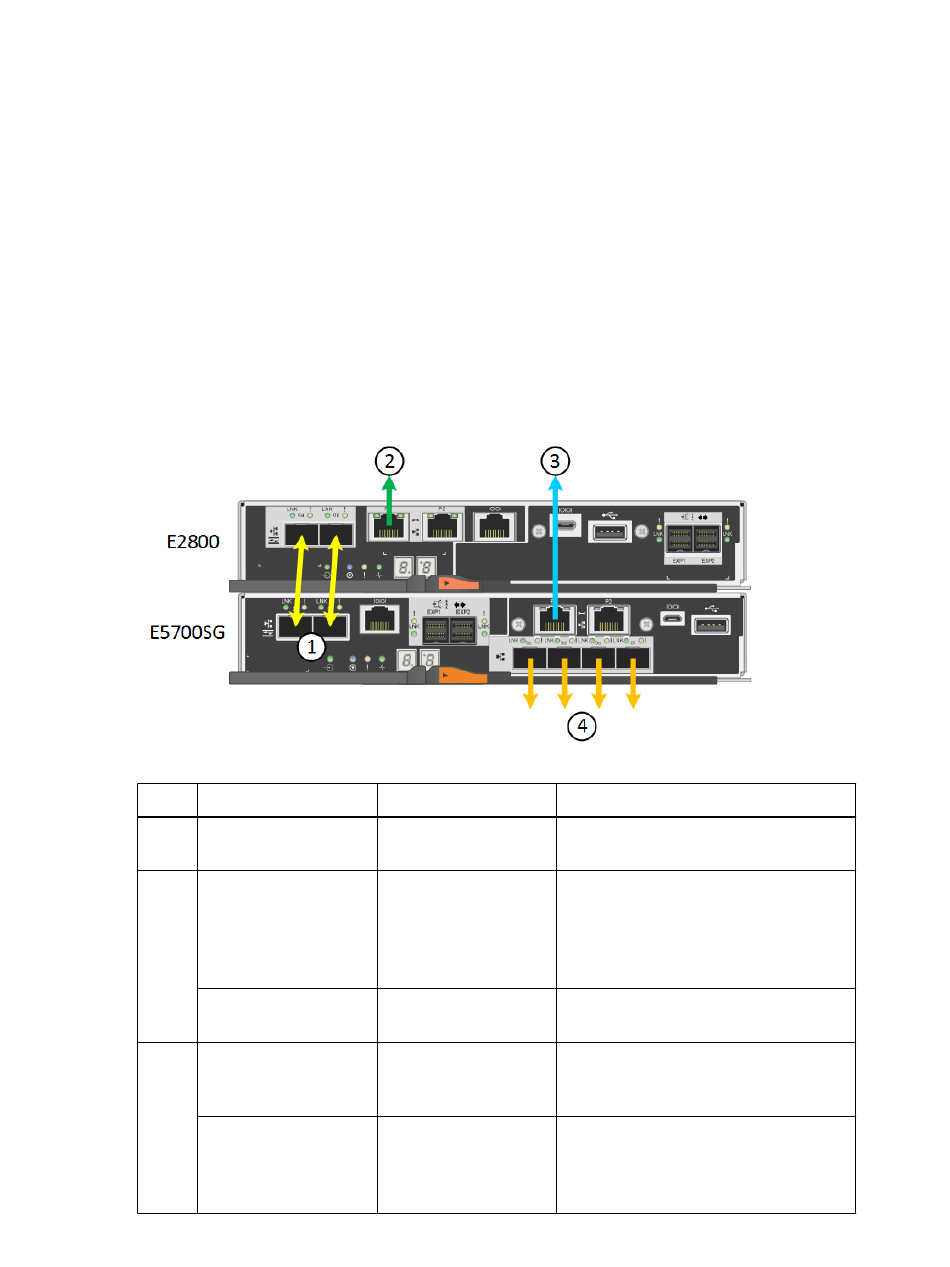

other and to the required networks. The figure shows the two controllers in the SG5760, with the
E2800 controller on the top and the E5700SG controller on the bottom. In the SG5712, the E2800
controller is to the left of the E5700SG controller.
Port
1 Two interconnect ports
on each controller
2 Management port 1 on
the E2800 controller
Management port 2 on
the E2800 controller
3 Management port 1 on
the E5700SG
controller
Management port 2 on
the E5700SG
controller
Type of port Function
16Gb/s FC optical Connect the two controllers to each
SFP+ other.
1-Gb (RJ-45) Ethernet Connects to the network where you
access SANtricity System Manager.
You can use the Admin Network for
StorageGRID Webscale or an
independent management network.
1-Gb (RJ-45) Ethernet Reserved for technical support.
1-Gb (RJ-45) Ethernet Connects the E5700SG controller to the
Admin Network for StorageGRID
Webscale.
1-Gb (RJ-45) Ethernet Can be used to connect the E5700SG
controller to a service laptop during
installation, if a DHCP-assigned IP
address is not available.
