6 | Hardware Installation and Maintenance Guide for SG5700 Appliances

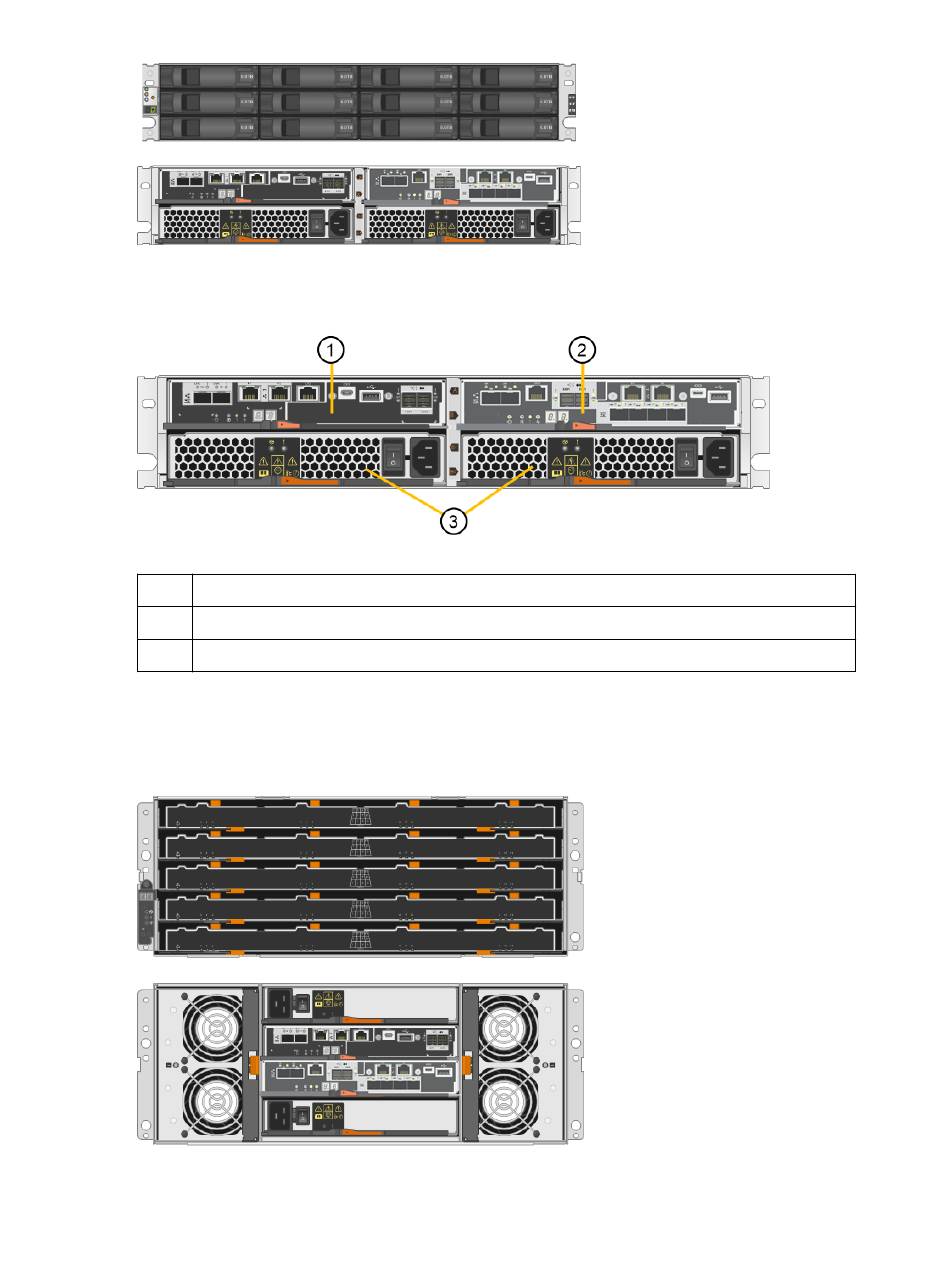

The SG5712 includes two controllers and two power-fan canisters.
1
E2800 controller (storage controller)
2
E5700SG controller (compute controller)
3
Power-fan canisters
Model SG5760
This figure shows the front and back of the SG5760 model, a 4U enclosure that holds 60 drives in 5
drive drawers.
