30 | Hardware Installation and Maintenance Guide for SG5700 Appliances
Controller
E2800 controller
E5700SG
controller
3. If the seven-segment displays show other values, see "Troubleshooting the hardware installation,"
and confirm you completed the installation steps correctly. If you are unable to resolve the
problem, contact technical support.
Related references

Status indicators on the E5700SG controller

Troubleshooting the hardware installation
Related information
E5700 and E2800 System Monitoring Guide
Status indicators on the E5700SG controller

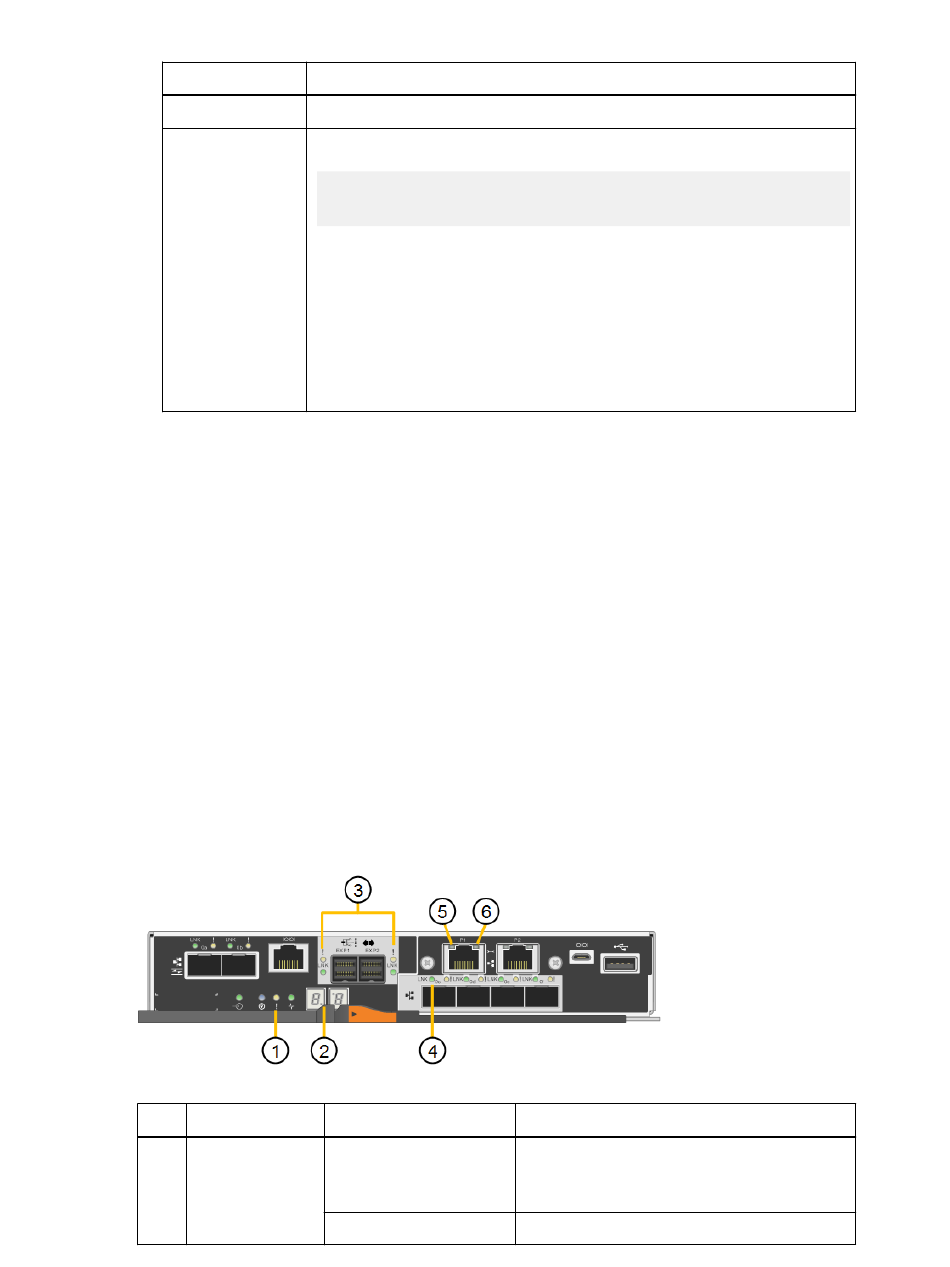

The seven-segment display and the LEDs on the E5700SG controller show status and error codes
while the appliance powers up and while the hardware is initializing. You can use these displays to
determine status and troubleshoot errors.
After the StorageGRID Webscale Appliance Installer has started, you should periodically review the
status indicators on the E5700SG controller.
Display
1 Attention LED
Seven-segment display
Shows 99, which is the default ID for an E-Series controller shelf.
Shows HO, followed by a repeating sequence of two numbers.
HO -- IP address for Admin Network -- IP address for
Grid Network HO
In the sequence, the first set of numbers is the DHCP-assigned IP address
for the controller's management port 1. This address is used to connect the
controller to the Admin Network for StorageGRID Webscale. The second
set of numbers is the DHCP-assigned IP address used to connect the
appliance to the Grid Network for StorageGRID Webscale.
If an IP address could not be assigned using DHCP, 0.0.0.0 is
Note:
displayed.
on page 30
on page 54
State
Amber
Off
Description
The controller is faulty and requires operator
attention, or the installation script was not
found.
The controller is operating normally.
