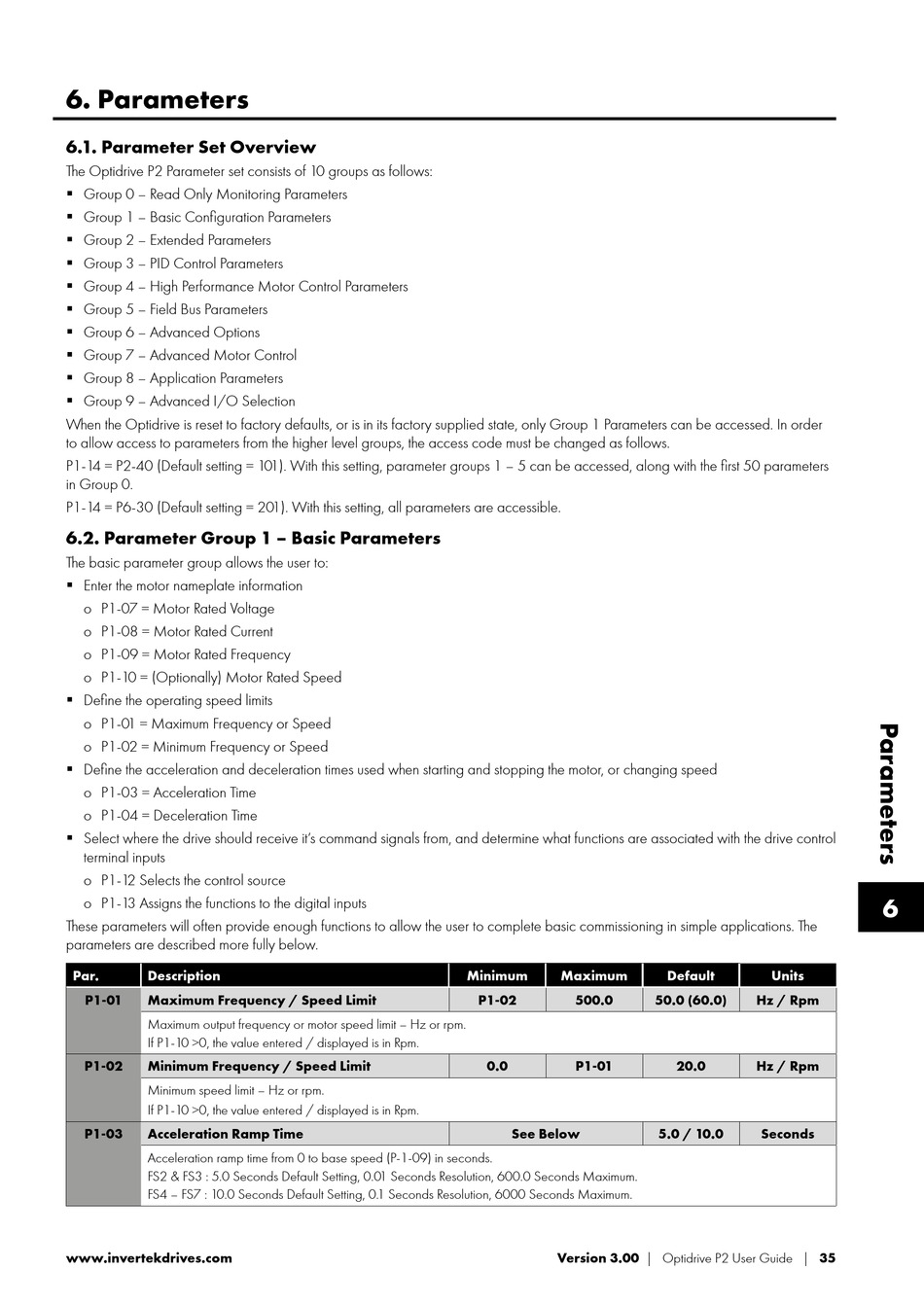

6. Parameters

6.1. Parameter Set Overview
The Optidrive P2 Parameter set consists of 10 groups as follows:
 Group 0 – Read Only Monitoring Parameters
 Group 1 – Basic Configuration Parameters
 Group 2 – Extended Parameters
 Group 3 – PID Control Parameters
 Group 4 – High Performance Motor Control Parameters
 Group 5 – Field Bus Parameters
 Group 6 – Advanced Options
 Group 7 – Advanced Motor Control
 Group 8 – Application Parameters
 Group 9 – Advanced I/O Selection
When the Optidrive is reset to factory defaults, or is in its factory supplied state, only Group 1 Parameters can be accessed. In order
to allow access to parameters from the higher level groups, the access code must be changed as follows.
P1-14 = P2-40 (Default setting = 101). With this setting, parameter groups 1 – 5 can be accessed, along with the first 50 parameters
in Group 0.
P1-14 = P6-30 (Default setting = 201). With this setting, all parameters are accessible.
6.2. Parameter Group 1 – Basic Parameters
The basic parameter group allows the user to:
 Enter the motor nameplate information
o P1-07 = Motor Rated Voltage
o P1-08 = Motor Rated Current
o P1-09 = Motor Rated Frequency
o P1-10 = (Optionally) Motor Rated Speed
 Define the operating speed limits
o P1-01 = Maximum Frequency or Speed
o P1-02 = Minimum Frequency or Speed
 Define the acceleration and deceleration times used when starting and stopping the motor, or changing speed
o P1-03 = Acceleration Time
o P1-04 = Deceleration Time
 S elect where the drive should receive it's command signals from, and determine what functions are associated with the drive control
terminal inputs
o P1-12 Selects the control source
o P1-13 Assigns the functions to the digital inputs
These parameters will often provide enough functions to allow the user to complete basic commissioning in simple applications. The
parameters are described more fully below.
Par. Description
P1-01 Maximum Frequency / Speed Limit
Maximum output frequency or motor speed limit – Hz or rpm.
If P1-10 >0, the value entered / displayed is in Rpm.
P1-02 Minimum Frequency / Speed Limit
Minimum speed limit – Hz or rpm.
If P1-10 >0, the value entered / displayed is in Rpm.
P1-03 Acceleration Ramp Time
Acceleration ramp time from 0 to base speed (P-1-09) in seconds.
FS2 & FS3 : 5.0 Seconds Default Setting, 0.01 Seconds Resolution, 600.0 Seconds Maximum.
FS4 – FS7 : 10.0 Seconds Default Setting, 0. 1 Seconds Resolution, 6000 Seconds Maximum.
www.invertekdrives.com
Minimum Maximum
P1-02 500.0
0.0 P1-01
See Below
Version 3.00 | Optidrive P2 User Guide | 35
Default Units
50.0 (60.0) Hz / Rpm
20.0 Hz / Rpm
5.0 / 10.0 Seconds
