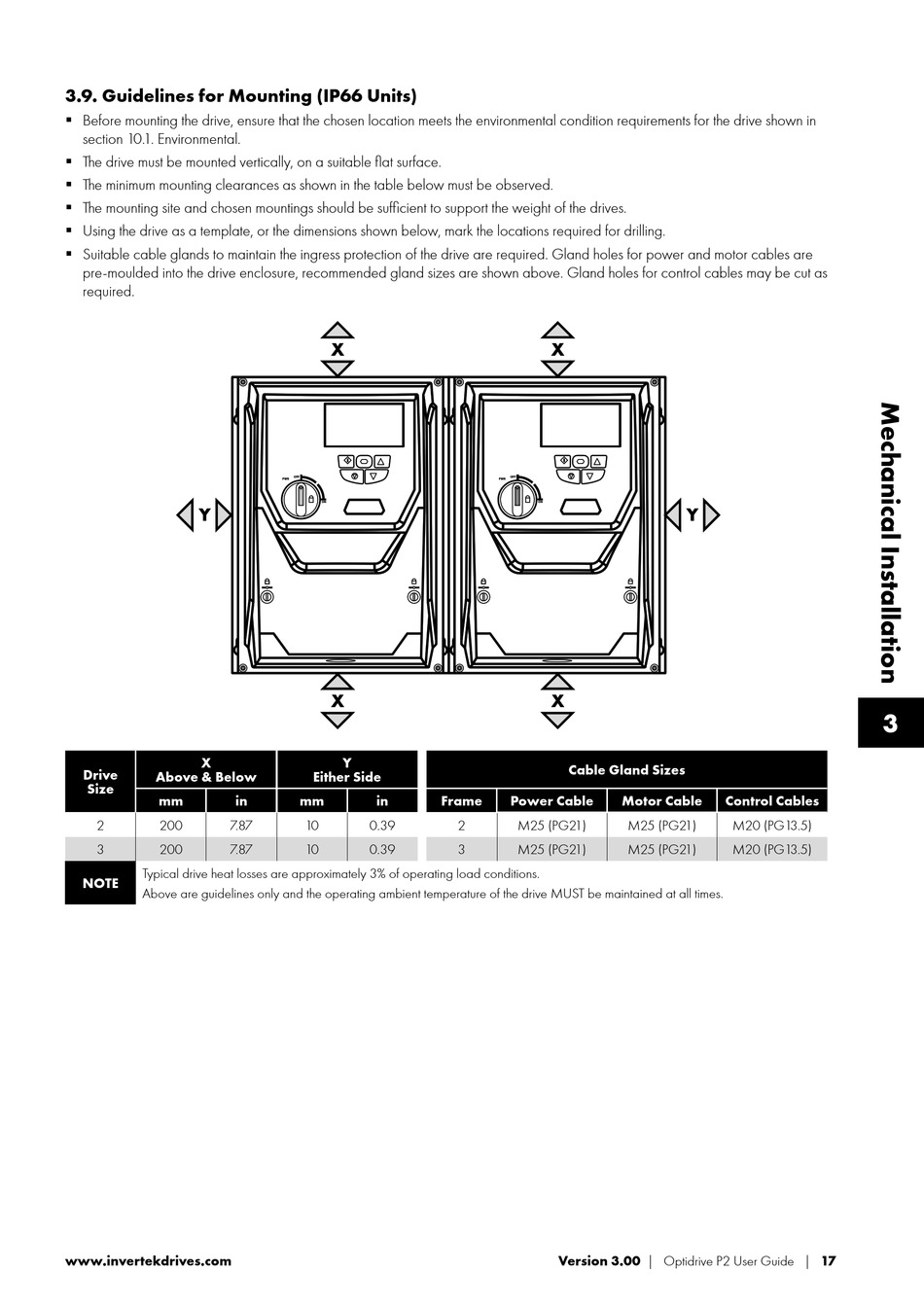

3.9. Guidelines for Mounting (IP66 Units)
B efore mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 10. 1 . Environmental.
T he drive must be mounted vertically, on a suitable flat surface.
T he minimum mounting clearances as shown in the table below must be observed.
T he mounting site and chosen mountings should be sufficient to support the weight of the drives.
Using the drive as a template, or the dimensions shown below, mark the locations required for drilling.
S uitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are
pre-moulded into the drive enclosure, recommended gland sizes are shown above. Gland holes for control cables may be cut as
required.
X
Drive
Above & Below
Size
mm
in
2
200
7.87
3
200
7.87
Typical drive heat losses are approximately 3% of operating load conditions.
NOTE
Above are guidelines only and the operating ambient temperature of the drive MUST be maintained at all times.
www.invertekdrives.com
OFF
PWR
ON
Y
Either Side
mm
in
Frame
10
0.39
10
0.39
OFF
PWR
ON
Cable Gland Sizes
Power Cable
Motor Cable
2
M25 (PG21)
M25 (PG21)
3
M25 (PG21)
M25 (PG21)
Version 3.00 | Optidrive P2 User Guide | 17
