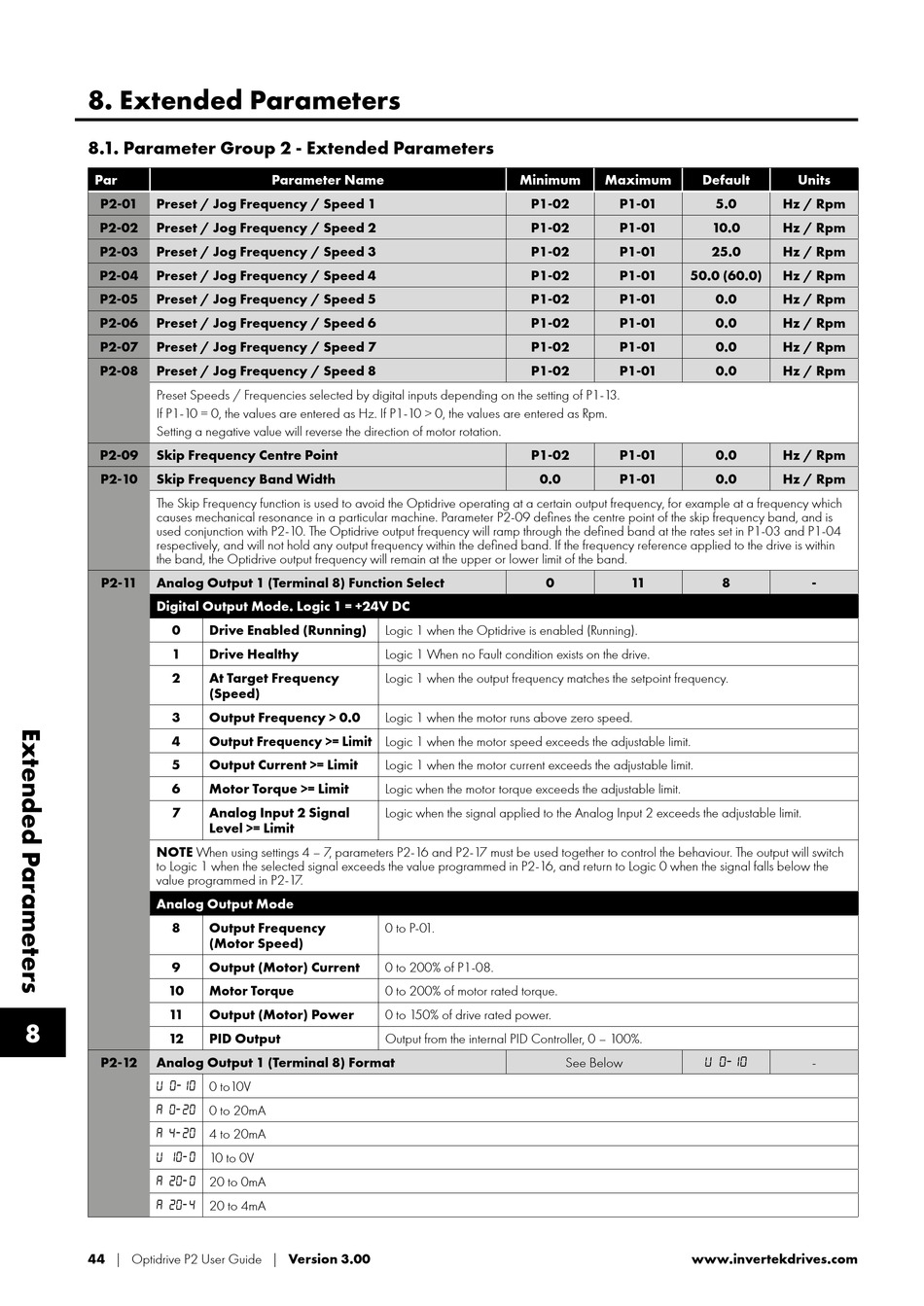

8. Extended Parameters

8.1. Parameter Group 2 - Extended Parameters
Par
P2-01 Preset / Jog Frequency / Speed 1
P2-02 Preset / Jog Frequency / Speed 2
P2-03 Preset / Jog Frequency / Speed 3
P2-04 Preset / Jog Frequency / Speed 4
P2-05 Preset / Jog Frequency / Speed 5
P2-06 Preset / Jog Frequency / Speed 6
P2-07 Preset / Jog Frequency / Speed 7
P2-08 Preset / Jog Frequency / Speed 8
Preset Speeds / Frequencies selected by digital inputs depending on the setting of P1-13.
If P1-10 = 0, the values are entered as Hz. If P1-10 > 0, the values are entered as Rpm.
Setting a negative value will reverse the direction of motor rotation.
P2-09 Skip Frequency Centre Point
P2-10 Skip Frequency Band Width
The Skip Frequency function is used to avoid the Optidrive operating at a certain output frequency, for example at a frequency which
causes mechanical resonance in a particular machine. Parameter P2-09 defines the centre point of the skip frequency band, and is
used conjunction with P2-10. The Optidrive output frequency will ramp through the defined band at the rates set in P1-03 and P1-04
respectively, and will not hold any output frequency within the defined band. If the frequency reference applied to the drive is within
the band, the Optidrive output frequency will remain at the upper or lower limit of the band.
P2-11 Analog Output 1 (Terminal 8) Function Select
Digital Output Mode. Logic 1 = +24V DC
0
1
2
3
4
5
6
7
NOTE When using settings 4 – 7, parameters P2-16 and P2-17 must be used together to control the behaviour. The output will switch
to Logic 1 when the selected signal exceeds the value programmed in P2-16, and return to Logic 0 when the signal falls below the
value programmed in P2-17.
Analog Output Mode
8
9
10
11
8
12
P2-12 Analog Output 1 (Terminal 8) Format
  0 to10V
  0 to 20mA
  4 to 20mA
  10 to 0V
  20 to 0mA
  20 to 4mA
44 | Optidrive P2 User Guide | Version 3.00
Parameter Name
Drive Enabled (Running)
Drive Healthy
At Target Frequency
(Speed)
Output Frequency > 0.0
Output Frequency >= Limit Logic 1 when the motor speed exceeds the adjustable limit.
Output Current >= Limit
Motor Torque >= Limit
Analog Input 2 Signal
Level >= Limit
Output Frequency
(Motor Speed)
Output (Motor) Current
Motor Torque
Output (Motor) Power
PID Output
Minimum
P1-02
P1-02
P1-02
P1-02
P1-02
P1-02
P1-02
P1-02
P1-02
0.0
0
Logic 1 when the Optidrive is enabled (Running).
Logic 1 When no Fault condition exists on the drive.
Logic 1 when the output frequency matches the setpoint frequency.
Logic 1 when the motor runs above zero speed.
Logic 1 when the motor current exceeds the adjustable limit.
Logic when the motor torque exceeds the adjustable limit.
Logic when the signal applied to the Analog Input 2 exceeds the adjustable limit.
0 to P-01.
0 to 200% of P1-08.
0 to 200% of motor rated torque.
0 to 150% of drive rated power.
Output from the internal PID Controller, 0 – 100%.
Maximum Default
P1-01 5.0
P1-01 10.0
P1-01 25.0
P1-01 50.0 (60.0)
P1-01 0.0
P1-01 0.0
P1-01 0.0
P1-01 0.0
P1-01 0.0
P1-01 0.0
11 8
 
See Below
