Switching Frequency
Reduction
LED Display :
Not Indicated
TFT and OLED Display :
ECO 01 ECO
23.7Hz
ML
SF
15.3A
Switching frequency is The incoming mains
reduced, due to high heatsink power supply has been
temperature. disconnected or is missing.

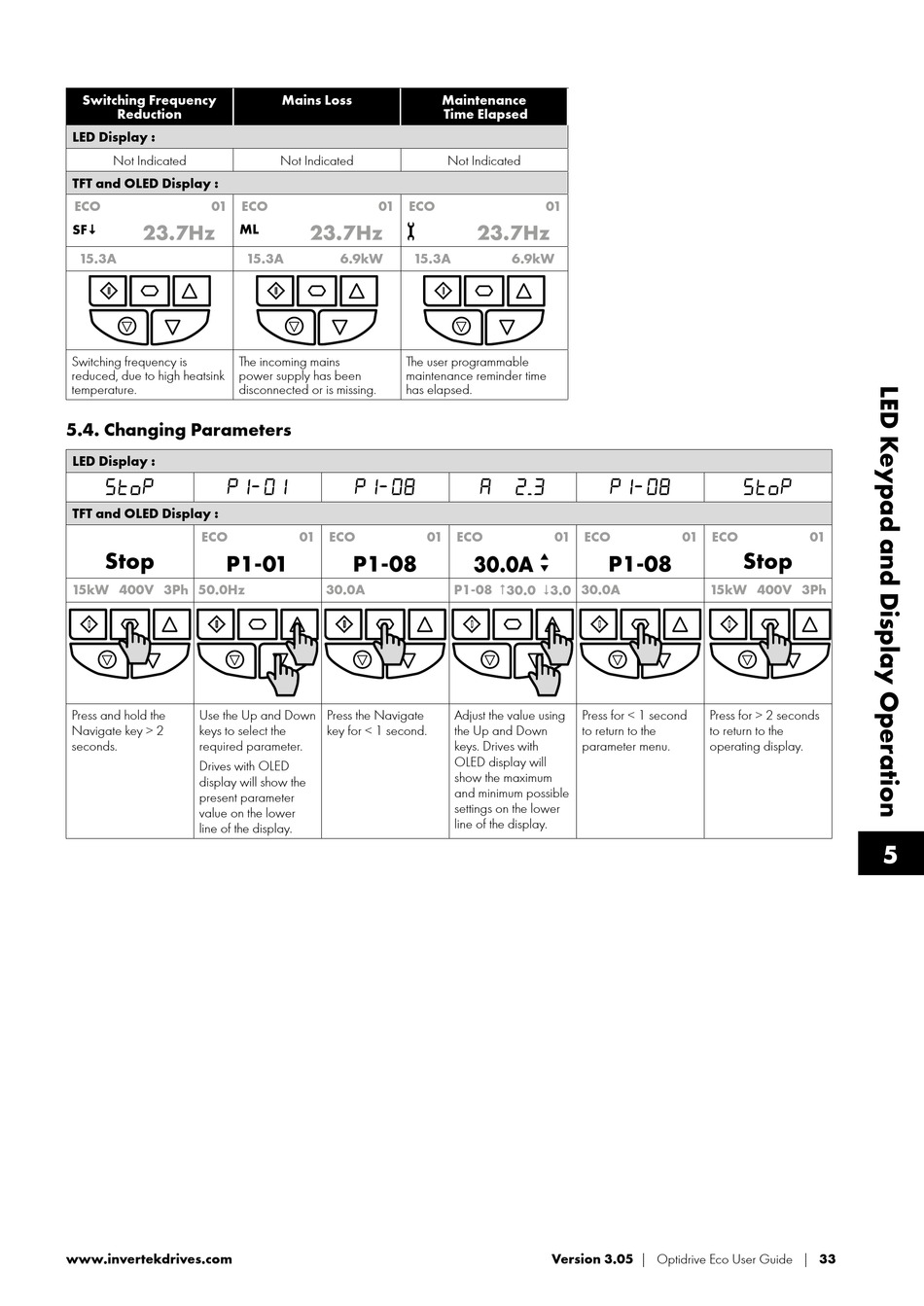

5.4. Changing Parameters

LED Display :
Sto P-
TFT and OLED Display :
ECO
Stop
P1-01
15kW 400V 3Ph 50.0Hz
Press and hold the Use the Up and Down
Navigate key > 2 keys to select the
seconds. required parameter.
Drives with OLED
display will show the
present parameter
value on the lower
line of the display.
www.invertekdrives.com
Mains Loss
Not Indicated
01 ECO
23.7Hz
15.3A 6.9kW 15.3A
The user programmable
maintenance reminder time
has elapsed.
P-
01 ECO
P1-08
30.0A
Press the Navigate
key for < 1 second.
Maintenance
Time Elapsed
Not Indicated
01
23.7Hz
6.9kW
 .
01 ECO 01 ECO
30.0A
P1-08 30.0 3.0 30.0A
Adjust the value using Press for < 1 second
the Up and Down to return to the
keys. Drives with parameter menu.
OLED display will
show the maximum
and minimum possible
settings on the lower
line of the display.
Version 3.05 | Optidrive Eco User Guide | 33
P- Sto
01 ECO
Stop
P1-08
15kW 400V 3Ph
Press for > 2 seconds
to return to the
operating display.
01
