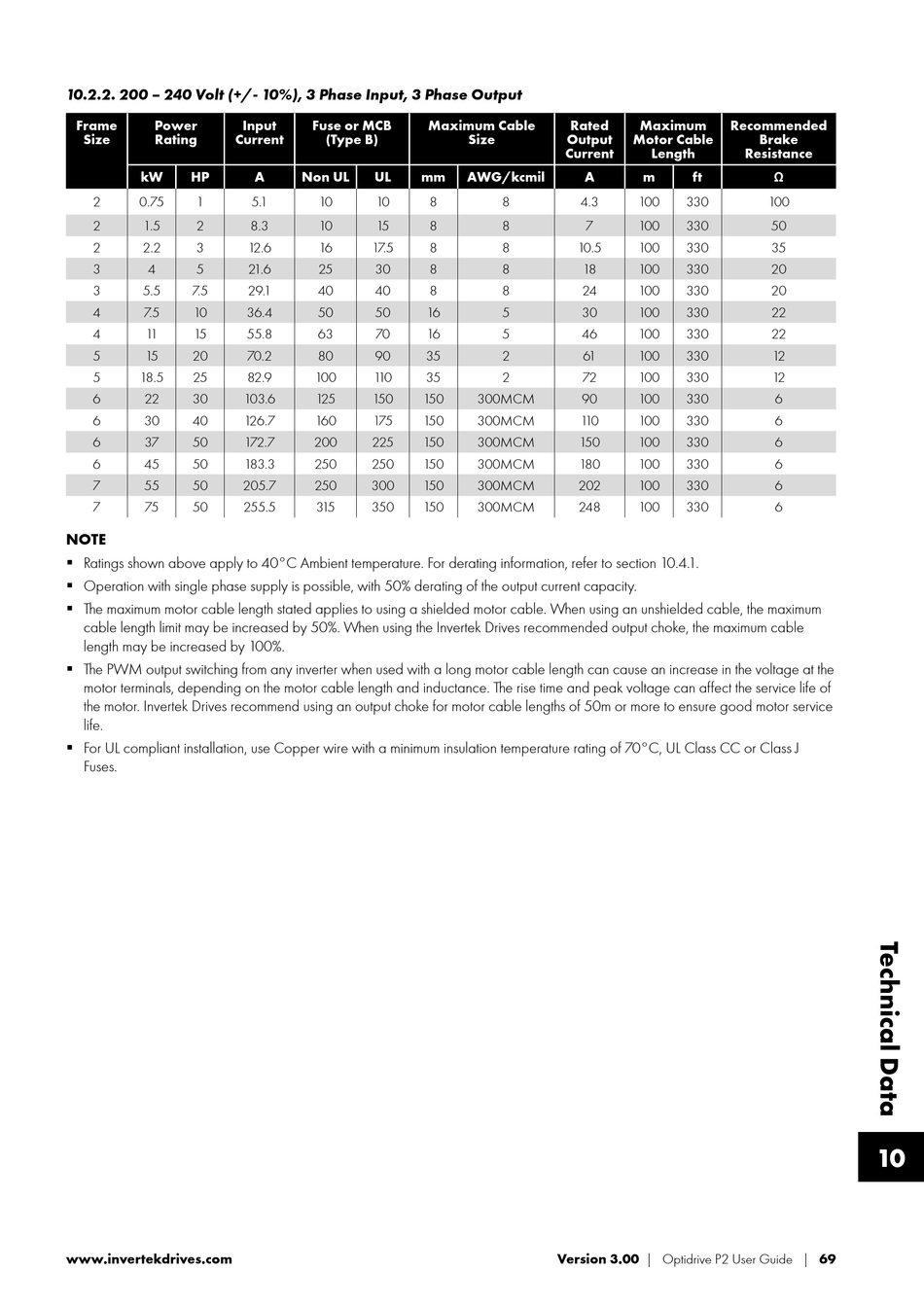

10.2.2. 200 – 240 Volt (+/- 10%), 3 Phase Input, 3 Phase Output
Frame Power
Size Rating Current
kW HP
2 0.75 1
2 1.5 2
2 2.2 3
3 4 5
3 5.5 7.5
4 7.5 10
4 1 1 15
5 15 20
5 18.5 25
6 22 30
6 30 40
6 37 50
6 45 50
7 55 50
7 75 50
NOTE
 R atings shown above apply to 40°C Ambient temperature. For derating information, refer to section 10.4. 1 .
 O peration with single phase supply is possible, with 50% derating of the output current capacity.
 T he maximum motor cable length stated applies to using a shielded motor cable. When using an unshielded cable, the maximum
cable length limit may be increased by 50%. When using the Invertek Drives recommended output choke, the maximum cable
length may be increased by 100%.
 T he PWM output switching from any inverter when used with a long motor cable length can cause an increase in the voltage at the
motor terminals, depending on the motor cable length and inductance. The rise time and peak voltage can affect the service life of
the motor. Invertek Drives recommend using an output choke for motor cable lengths of 50m or more to ensure good motor service
life.
 F or UL compliant installation, use Copper wire with a minimum insulation temperature rating of 70°C, UL Class CC or Class J
Fuses.
www.invertekdrives.com
Input Fuse or MCB
(Type B)
A Non UL UL
5. 1 10 10
8.3 10 15
12.6 16 17.5
21.6 25 30
29. 1 40 40
36.4 50 50
55.8 63 70
70.2 80 90
82.9 100 1 10
103.6 125 150
126.7 160 175
172.7 200 225
183.3 250 250
205.7 250 300
255.5 315 350
Maximum Cable Rated
Size Output
Current
mm AWG/kcmil A
8 8 4.3
8 8 7
8 8 10.5
8 8 18
8 8 24
16 5 30
16 5 46
35 2 61
35 2 72
150 300MCM 90
150 300MCM 1 10
150 300MCM 150
150 300MCM 180
150 300MCM 202
150 300MCM 248
Version 3.00 | Optidrive P2 User Guide | 69
Maximum Recommended
Motor Cable Brake
Length Resistance
m ft Ω
100 330 100
100 330 50
100 330 35
100 330 20
100 330 20
100 330 22
100 330 22
100 330 12
100 330 12
100 330 6
100 330 6
100 330 6
100 330 6
100 330 6
100 330 6
