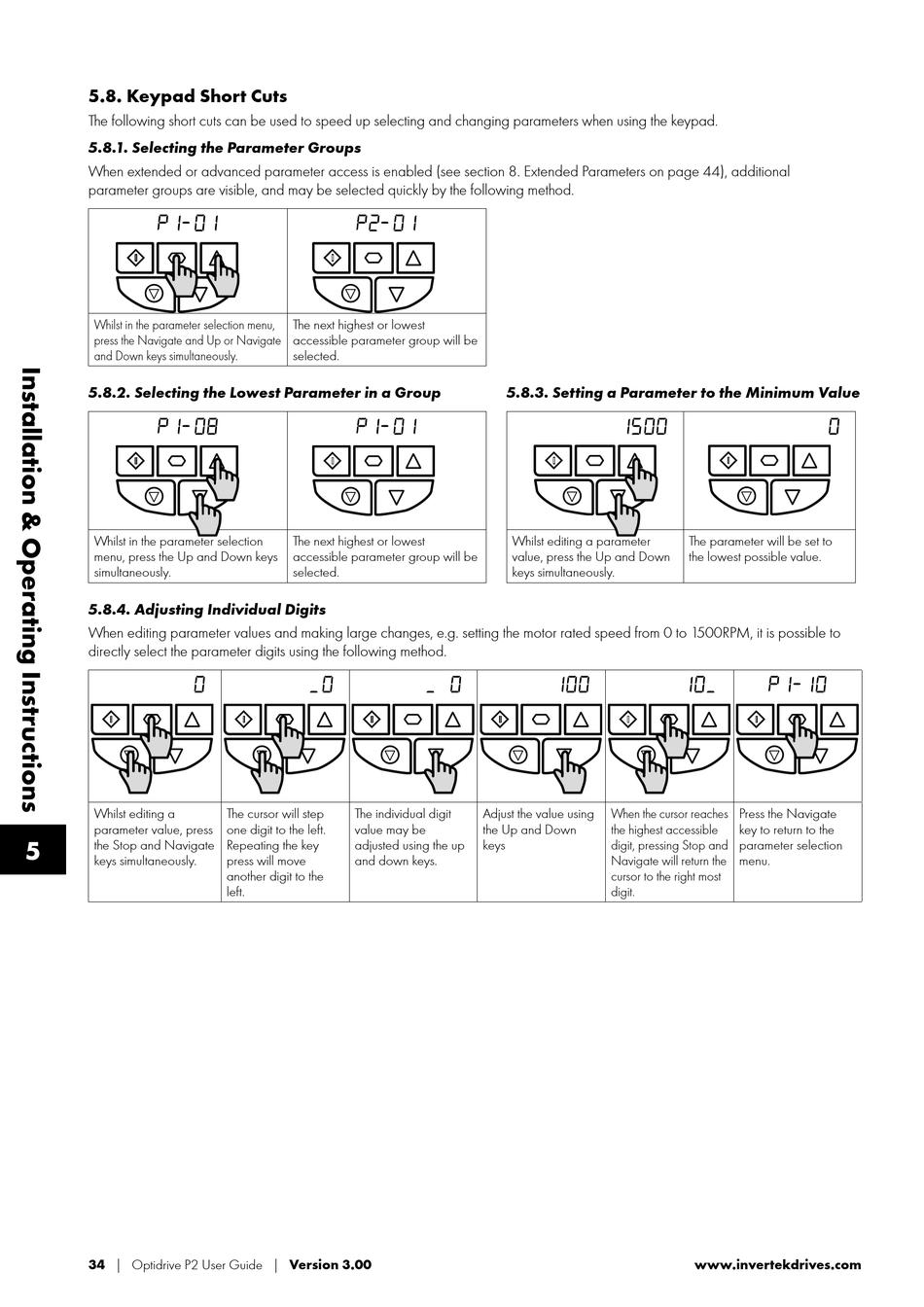

5.8. Keypad Short Cuts

The following short cuts can be used to speed up selecting and changing parameters when using the keypad.
5.8.1. Selecting the Parameter Groups
When extended or advanced parameter access is enabled (see section 8. Extended Parameters on page 44), additional
parameter groups are visible, and may be selected quickly by the following method.

Whilst in the parameter selection menu,
press the Navigate and Up or Navigate
and Down keys simultaneously.
5.8.2. Selecting the Lowest Parameter in a Group

Whilst in the parameter selection
menu, press the Up and Down keys
simultaneously.
5.8.4. Adjusting Individual Digits
When editing parameter values and making large changes, e.g. setting the motor rated speed from 0 to 1500RPM, it is possible to
directly select the parameter digits using the following method.

Whilst editing a
parameter value, press
5
the Stop and Navigate
keys simultaneously.
34 | Optidrive P2 User Guide | Version 3.00

The next highest or lowest
accessible parameter group will be
selected.

The next highest or lowest
accessible parameter group will be
selected.

The cursor will step The individual digit
one digit to the left. value may be
Repeating the key adjusted using the up
press will move and down keys.
another digit to the
left.
5.8.3. Setting a Parameter to the Minimum Value
Whilst editing a parameter
value, press the Up and Down
keys simultaneously.
  
Adjust the value using
the Up and Down
keys

The parameter will be set to
the lowest possible value.
 
When the cursor reaches Press the Navigate
the highest accessible key to return to the
digit, pressing Stop and parameter selection
Navigate will return the menu.
cursor to the right most
digit.
