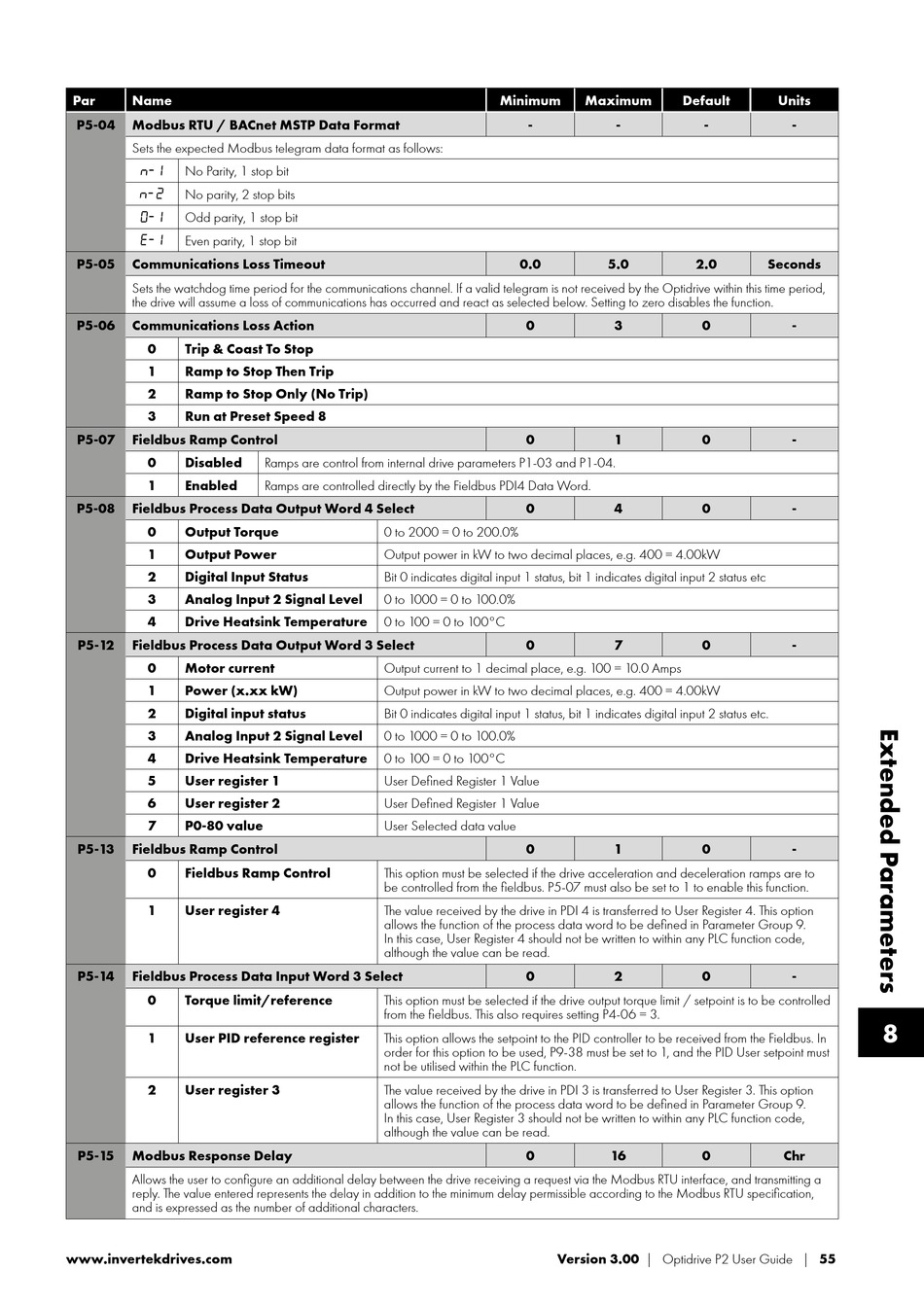

Invertek Drives Optidrive ODP-2 User Manual page 55

Par Name
P5-04 Modbus RTU / BACnet MSTP Data Format
Sets the expected Modbus telegram data format as follows:

No Parity, 1 stop bit

No parity, 2 stop bits

Odd parity, 1 stop bit

Even parity, 1 stop bit
P5-05 Communications Loss Timeout
Sets the watchdog time period for the communications channel. If a valid telegram is not received by the Optidrive within this time period,
the drive will assume a loss of communications has occurred and react as selected below. Setting to zero disables the function.
P5-06 Communications Loss Action
0 Trip & Coast To Stop
1 Ramp to Stop Then Trip
2 Ramp to Stop Only (No Trip)
3 Run at Preset Speed 8
P5-07 Fieldbus Ramp Control
0 Disabled
1 Enabled
P5-08 Fieldbus Process Data Output Word 4 Select
0 Output Torque
1 Output Power
2 Digital Input Status
3 Analog Input 2 Signal Level
4 Drive Heatsink Temperature
P5-12 Fieldbus Process Data Output Word 3 Select
0 Motor current
1 Power (x.xx kW)
2 Digital input status
3 Analog Input 2 Signal Level
4 Drive Heatsink Temperature
5 User register 1
6 User register 2
7 P0-80 value
P5-13 Fieldbus Ramp Control
0 Fieldbus Ramp Control
1 User register 4
P5-14 Fieldbus Process Data Input Word 3 Select
0 Torque limit/reference
1 User PID reference register
2 User register 3
P5-15 Modbus Response Delay
Allows the user to configure an additional delay between the drive receiving a request via the Modbus RTU interface, and transmitting a
reply. The value entered represents the delay in addition to the minimum delay permissible according to the Modbus RTU specification,
and is expressed as the number of additional characters.
www.invertekdrives.com
Ramps are control from internal drive parameters P1-03 and P1-04.
Ramps are controlled directly by the Fieldbus PDI4 Data Word.
0 to 2000 = 0 to 200.0%
Output power in kW to two decimal places, e.g. 400 = 4.00kW
Bit 0 indicates digital input 1 status, bit 1 indicates digital input 2 status etc
0 to 1000 = 0 to 100.0%
0 to 100 = 0 to 100°C
Output current to 1 decimal place, e.g. 100 = 10.0 Amps
Output power in kW to two decimal places, e.g. 400 = 4.00kW
Bit 0 indicates digital input 1 status, bit 1 indicates digital input 2 status etc.
0 to 1000 = 0 to 100.0%
0 to 100 = 0 to 100°C
User Defined Register 1 Value
User Defined Register 1 Value
User Selected data value
This option must be selected if the drive acceleration and deceleration ramps are to
be controlled from the fieldbus. P5-07 must also be set to 1 to enable this function.
The value received by the drive in PDI 4 is transferred to User Register 4. This option
allows the function of the process data word to be defined in Parameter Group 9.
In this case, User Register 4 should not be written to within any PLC function code,
although the value can be read.
This option must be selected if the drive output torque limit / setpoint is to be controlled
from the fieldbus. This also requires setting P4-06 = 3.
This option allows the setpoint to the PID controller to be received from the Fieldbus. In
order for this option to be used, P9-38 must be set to 1, and the PID User setpoint must
not be utilised within the PLC function.
The value received by the drive in PDI 3 is transferred to User Register 3. This option
allows the function of the process data word to be defined in Parameter Group 9.
In this case, User Register 3 should not be written to within any PLC function code,
although the value can be read.
Minimum Maximum
- -
0.0 5.0
0 3
0 1
0 4
0 7
0 1
0 2
0 16
Version 3.00 | Optidrive P2 User Guide | 55
Default Units
- -
2.0 Seconds
0 -
0 -
0 -
0 -
0 -
0 -
0 Chr
