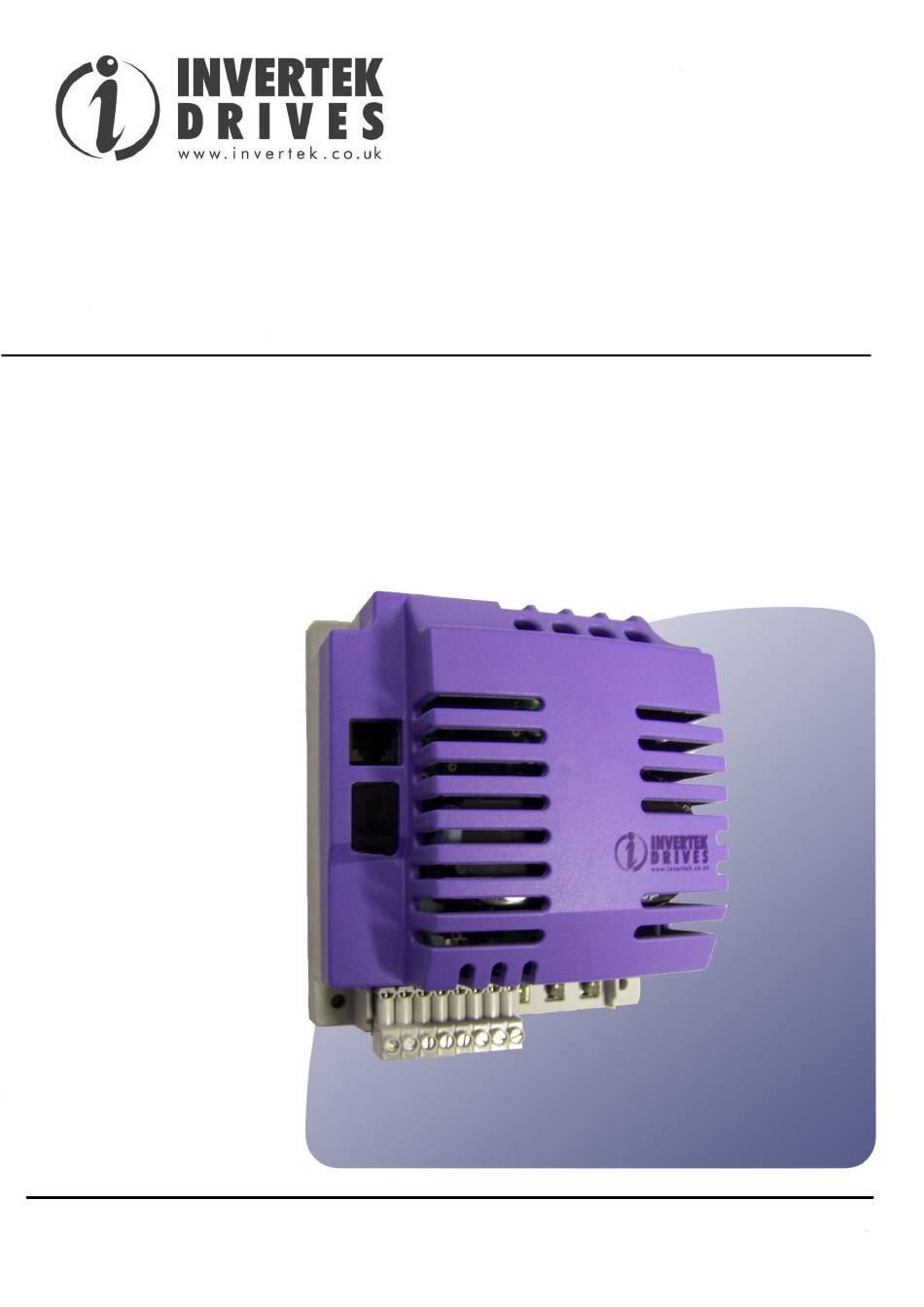

- Page 1 Для заказов : +7(499)707-11-20 Email: i@sp-t.ru 8-800-511-65-88 (Бесплатно по РФ) User Guide Optidrive Plus 3 Compact OEM AC Variable Speed Drive 0.75 – 1.5kW (1 – 2HP) Installation and Operating Instructions...
- Page 2 Schutzarten durch Gehaeuse (IP Code) Déclaration de Conformité: Invertek Drives Ltd déclare par la présente que le produit Optidrive Plus/VTC porte le marquage CE en relation avec la directive basse tension et est conforme aux norms Européennes harmonisées suivantes : EN 61800-5-1: 2003 Entrainements électriques de puissance à...
-
Page 3: Table Of Contents
Optidrive Plus 3 Compact - User Guide INTRODUCTION ..........................4 1.1. Important safety information ................... 4 1.2. Electromagnetic Compatibility (EMC) ................4 TECHNICAL DATA ..........................5 2.1. Environmental ......................... 5 2.2. Rating tables ........................5 MECHANICAL INSTALLATION ......................6 3.1. General.......................... -
Page 4: Introduction
Electromagnetic Compatibility (EMC) The Optidrive Plus 3GV Compact is designed to be mounted in close proximity to the driven motor. Within the European Union, equipment into Plus 3GV Compact is designed to be mounted in close proximity to the driven motor. Within the European Union, equipment into Plus 3GV Compact is designed to be mounted in close proximity to the driven motor. -
Page 5: Technical Data
Optidrive Plus 3 Compact - User Guide 2. Technical data 2.1. Environmental Operational ambient temperature range : -10 … 60°C, Frost and condensation free Storage ambient temperature range : -40 … 60°C Maximum altitude : 2000m. Derate above 1000m : 1% / 100m Maximum humidity : 95%, non-condensing 2.2. -
Page 6: Mechanical Installation
66mm 3.3. Enclosure mounting The Optidrive Plus 3GV Compact is supplied in an IP20 enclosure, designed to be mounted by the user on a thermally conductive material • to dissipate the heat generated by the drive. Typically, this can be a motor or steel control panel. -
Page 7: Power And Control Connections
This manual is intended as a guide for proper installation. Invertek Drives Ltd cannot assume responsibility for the This manual is intended as a guide for proper installation. Invertek Drives Ltd cannot assume responsibility for the compliance or the non-compliance to any code, national, local or otherwise, for the proper installation of this drive or associated equipment. A ha compliance to any code, national, local or otherwise, for the proper installation of this drive or associated equipment. -
Page 8: Connection Diagram
Optidrive Plus 3 Compact - User Guide 4.3. Connection Diagram 1) + 24 Volt 2) Digital Input 1 3) Digital Input 2 4) Analog Input 1 (or Digital Input 3) 5) Analog Input 2 (or Digital Input 4) 6) 0 Volt 4.4. -
Page 9: Control Terminal Connections
Optidrive Plus 3 Compact - User Guide 4.6. Control terminal connections connections Default Connections Control Signal Description Terminal +24V User Output, +24V, 100mA user control output +24V, 100mA user control output Positive logic Digital Input 1 “Logic 1” input voltage range: 8V … 30V DC “Logic 1”... -
Page 10: Changing Parameters
Optidrive Plus 3 Compact - User Guide 5.2. Changing Parameters Procedure Display shows... Stop Stop Power Power on Drive Stop Stop P P P P 1-01 1-01 1-01 1-01 Press and hold the Press and hold the for >2 seconds P P P P 1-0 1-02 2 2 2 Press the... -
Page 11: Terminal Control
Optidrive Plus 3 Compact - User Guide 5.5. Terminal Control When delivered, the Optidrive is in the factory default state, meaning that it is set to operate in terminal control mode and When delivered, the Optidrive is in the factory default state, meaning that it is set to operate in terminal control mode and When delivered, the Optidrive is in the factory default state, meaning that it is set to operate in terminal control mode and all parameters have the default values as indicated in section 6 Parameters. -
Page 12: Motor Autotuning
Optidrive Plus 3 Compact - User Guide 5.1. Motor Autotuning Optidrive Plus uses a sophisticated Voltage Vector Control Method as a factory default setting to ensure best possible motor operation. This Control Method as a factory default setting to ensure best possible motor operation. This Control Method as a factory default setting to ensure best possible motor operation. -
Page 13: Parameters
Optidrive Plus 3 Compact - User Guide 6. Parameters 6.1. Parameter Group 1 – Basic Parameters Par. Description Range Units Default Explanation Maximum 50.0 Maximum speed limit – Hz or rpm. P1-01 P-02 to 5*P-09 (max 2000Hz) Frequency / Speed (60.0) If P1-10 >0, the value entered is in Rpm Minimum... -
Page 14: Parameter Group 2 - Extended Parameters
Optidrive Plus 3 Compact - User Guide 6.2. Parameter Group 2 - Extended parameters Par. Description Range Units Default Explanation Defines the function of the digital inputs Digital input function depending on the control mode setting in P-12. P2-01 0 to 22 select See section 7 Analog and Digital Input Configurations for more information. - Page 15 Optidrive Plus 3 Compact - User Guide Par. Description Range Units Default Explanation Active when P1-12 = 1 or 2 0 : Following a stop and restart, the drive will run at minimum speed 1 : Following a stop and restart, the drive will run at the last setpoint speed 0 : Minimum Speed, Edge-r 2 : As per setting 0, except that the Run...
-
Page 16: Parameter Group 3 - Pid Control
Optidrive Plus 3 Compact - User Guide Par. Description Range Units Default Explanation 0 : Disabled (No Scaling) Active in Keypad mode (P1-12 = 1 or 2) and 1 : Scaled by P2-29 Master / Slave mode only. 2 : Scaled by P2-29, then 1 : Actual Speed = Digital Speed x P2-29 Digital speed reference P2-35... -
Page 17: Parameter Group 4 - High Performance Motor Control
Optidrive Plus 3 Compact - User Guide 6.4. Parameter Group 4 – High Performance Motor Control Par. Description Range Units Default Explanation 0 : Vector Speed Control Selects the motor control method. An autotune must be P4-01 Control Mode 1 : Vector Torque Control performed following a change, see section 6.4 2 : V/F Speed Control When set to 1, the drive immediately carries out a non-... -
Page 18: Analog And Digital Input Configurations
Optidrive Plus 3 Compact - User Guide 7. Analog and Digital Input Configurations 7.1. Terminal mode (P1-12 =0) Analog Input 1 (T4) Analog input 2 (T5) P2-01 Digital input 1 (T2) Digital input 2 (T3) (or Digital Input 3) (or Digital Input 4) Open: Stop (disable) Open : Bipolar analog speed ref Open : Preset Speed 1... -
Page 19: Keypad Mode (P1-12 = 1 Or 2)
Optidrive Plus 3 Compact - User Guide 7.2. Keypad mode (P1-12 = 1 or 2) Analog Input 1 (T4) Analog input 2 (T4) P2-01 Digital input 1 (T2) Digital input 2 (T3) Digital input 2 (T3) (or Digital Input 3) (or Digital Input 4) Open: Stop (disable) Closed : remote UP push... -
Page 20: Troubleshooting
Optidrive Plus 3 Compact - User Guide 8. Troubleshooting 8.1. Fault messages with optional Optiport Plus Keypad Fault Code Description Corrective Action Factory Default parameters have Press STOP key, drive is ready to configure for particular application P P P P - - - - def been loaded Instantaneous over current on drive If the fault occurs immediately when enabling the drive, disconnect the motor cable from the output...
