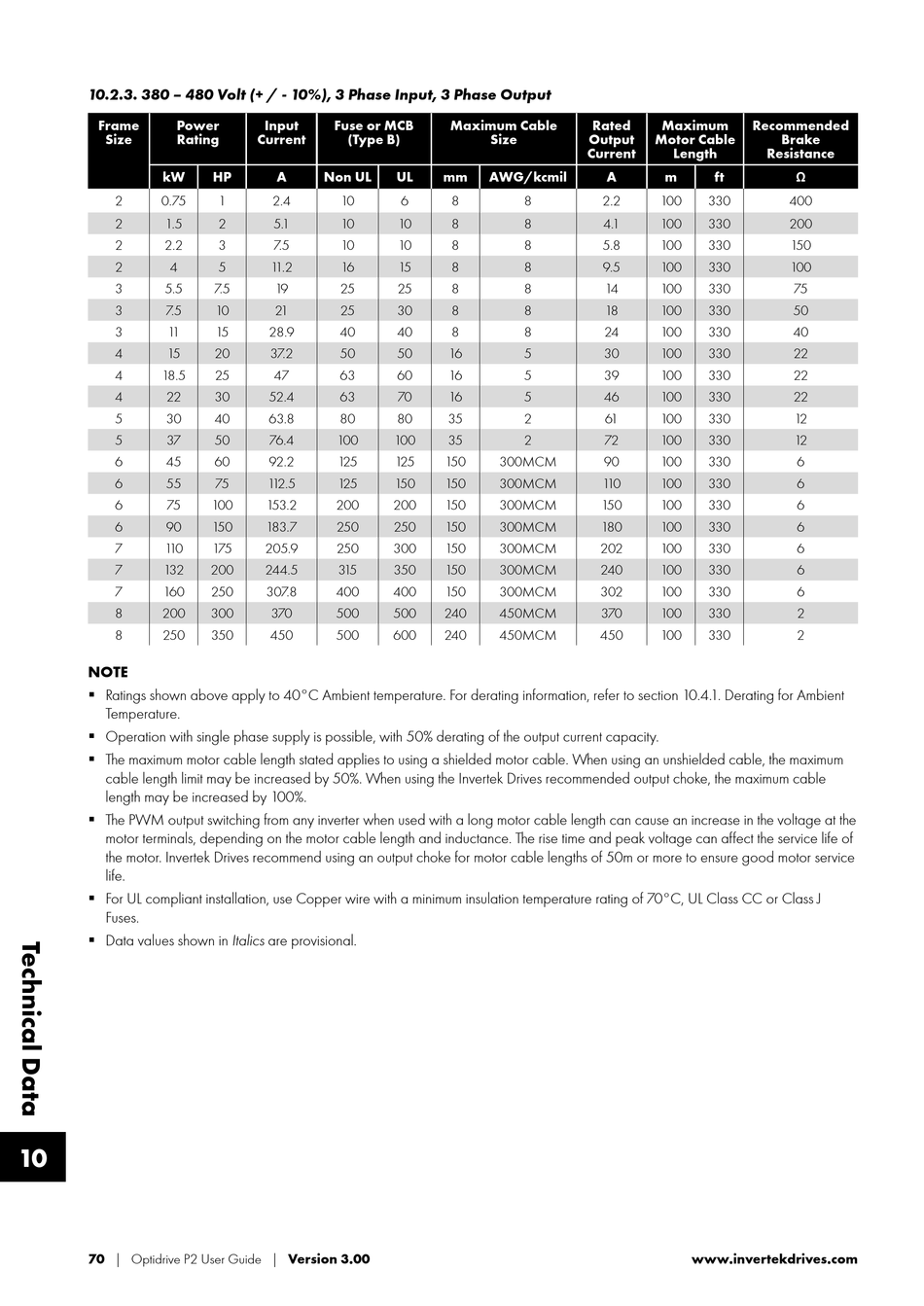

10.2.3. 380 – 480 Volt (+ / - 10%), 3 Phase Input, 3 Phase Output
Frame Power
Size Rating
kW
2 0.75
2 1.5
2 2.2
2 4
3 5.5
3 7.5
3 1 1
4 15
4 18.5
4 22
5 30
5 37
6 45
6 55
6 75
6 90
7 1 10
7 132
7 160
8 200
8 250
NOTE
 R atings shown above apply to 40°C Ambient temperature. For derating information, refer to section 10.4. 1 . Derating for Ambient
Temperature.
 Operation with single phase supply is possible, with 50% derating of the output current capacity.
 T he maximum motor cable length stated applies to using a shielded motor cable. When using an unshielded cable, the maximum
cable length limit may be increased by 50%. When using the Invertek Drives recommended output choke, the maximum cable
length may be increased by 100%.
 T he PWM output switching from any inverter when used with a long motor cable length can cause an increase in the voltage at the
motor terminals, depending on the motor cable length and inductance. The rise time and peak voltage can affect the service life of
the motor. Invertek Drives recommend using an output choke for motor cable lengths of 50m or more to ensure good motor service
life.
 F or UL compliant installation, use Copper wire with a minimum insulation temperature rating of 70°C, UL Class CC or Class J
Fuses.
 Data values shown in Italics are provisional.
