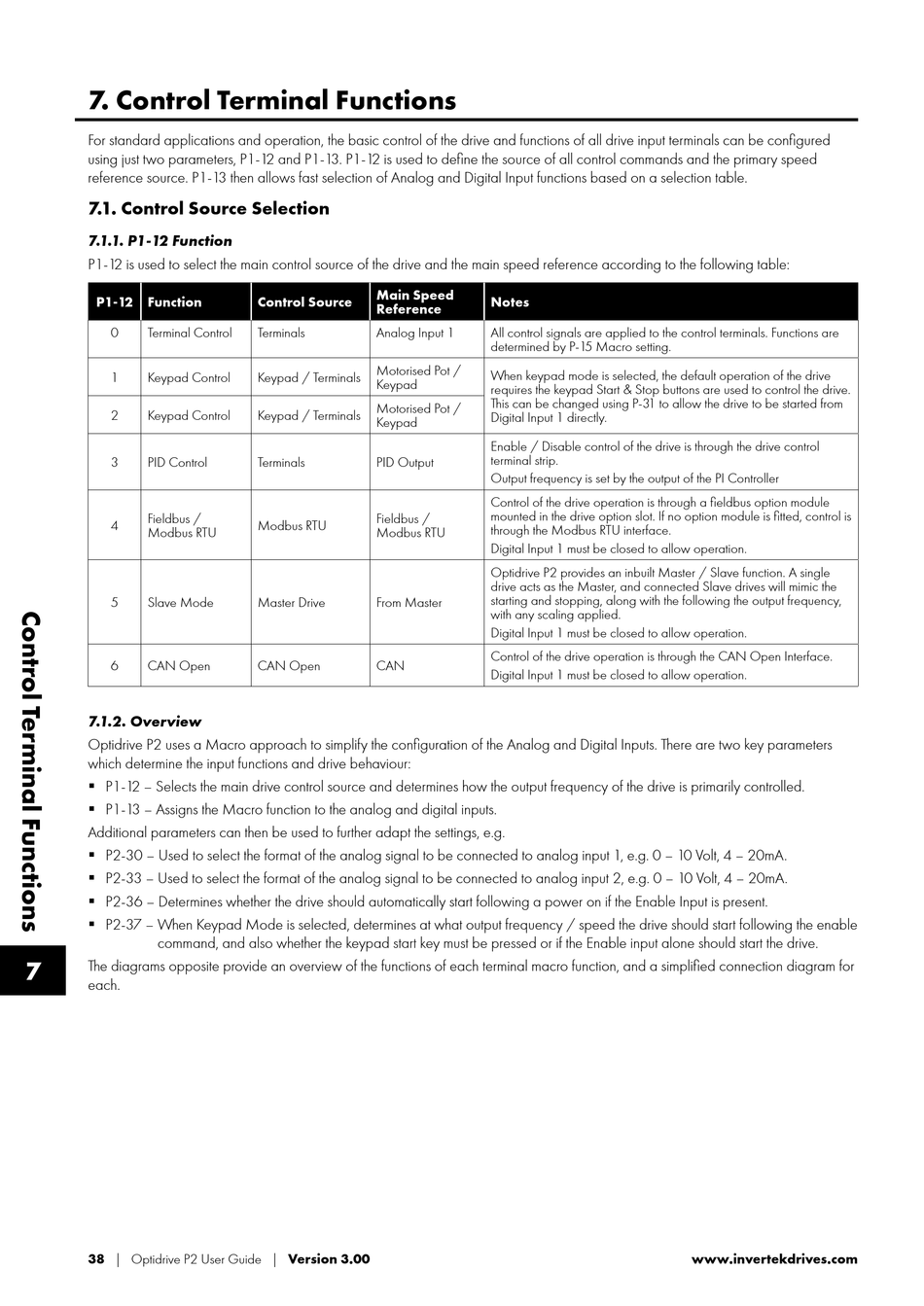

7. Control Terminal Functions

For standard applications and operation, the basic control of the drive and functions of all drive input terminals can be configured
using just two parameters, P1-12 and P1-13. P1-12 is used to define the source of all control commands and the primary speed
reference source. P1-13 then allows fast selection of Analog and Digital Input functions based on a selection table.
7.1. Control Source Selection
7.1.1. P1-12 Function
P1-12 is used to select the main control source of the drive and the main speed reference according to the following table:
P1-12 Function
0 Terminal Control
1 Keypad Control
2 Keypad Control
3 PID Control
Fieldbus /
4
Modbus RTU
5 Slave Mode
6 CAN Open
7.1.2. Overview
Optidrive P2 uses a Macro approach to simplify the configuration of the Analog and Digital Inputs. There are two key parameters
which determine the input functions and drive behaviour:
 P1-12 – Selects the main drive control source and determines how the output frequency of the drive is primarily controlled.
 P1-13 – Assigns the Macro function to the analog and digital inputs.
Additional parameters can then be used to further adapt the settings, e.g.
 P2-30 – Used to select the format of the analog signal to be connected to analog input 1, e.g. 0 – 10 Volt, 4 – 20mA.
 P2-33 – Used to select the format of the analog signal to be connected to analog input 2, e.g. 0 – 10 Volt, 4 – 20mA.
 P2-36 – Determines whether the drive should automatically start following a power on if the Enable Input is present.
 P2-37 – When Keypad Mode is selected, determines at what output frequency / speed the drive should start following the enable
command, and also whether the keypad start key must be pressed or if the Enable input alone should start the drive.
7
The diagrams opposite provide an overview of the functions of each terminal macro function, and a simplified connection diagram for
each.
38 | Optidrive P2 User Guide | Version 3.00
Main Speed
Control Source
Reference
Terminals Analog Input 1
Motorised Pot /
Keypad / Terminals
Keypad
Motorised Pot /
Keypad / Terminals
Keypad
Terminals PID Output
Fieldbus /
Modbus RTU
Modbus RTU
Master Drive From Master
CAN Open CAN
Notes
All control signals are applied to the control terminals. Functions are
determined by P-15 Macro setting.
When keypad mode is selected, the default operation of the drive
requires the keypad Start & Stop buttons are used to control the drive.
This can be changed using P-31 to allow the drive to be started from
Digital Input 1 directly.
Enable / Disable control of the drive is through the drive control
terminal strip.
Output frequency is set by the output of the PI Controller
Control of the drive operation is through a fieldbus option module
mounted in the drive option slot. If no option module is fitted, control is
through the Modbus RTU interface.
Digital Input 1 must be closed to allow operation.
Optidrive P2 provides an inbuilt Master / Slave function. A single
drive acts as the Master, and connected Slave drives will mimic the
starting and stopping, along with the following the output frequency,
with any scaling applied.
Digital Input 1 must be closed to allow operation.
Control of the drive operation is through the CAN Open Interface.
Digital Input 1 must be closed to allow operation.
