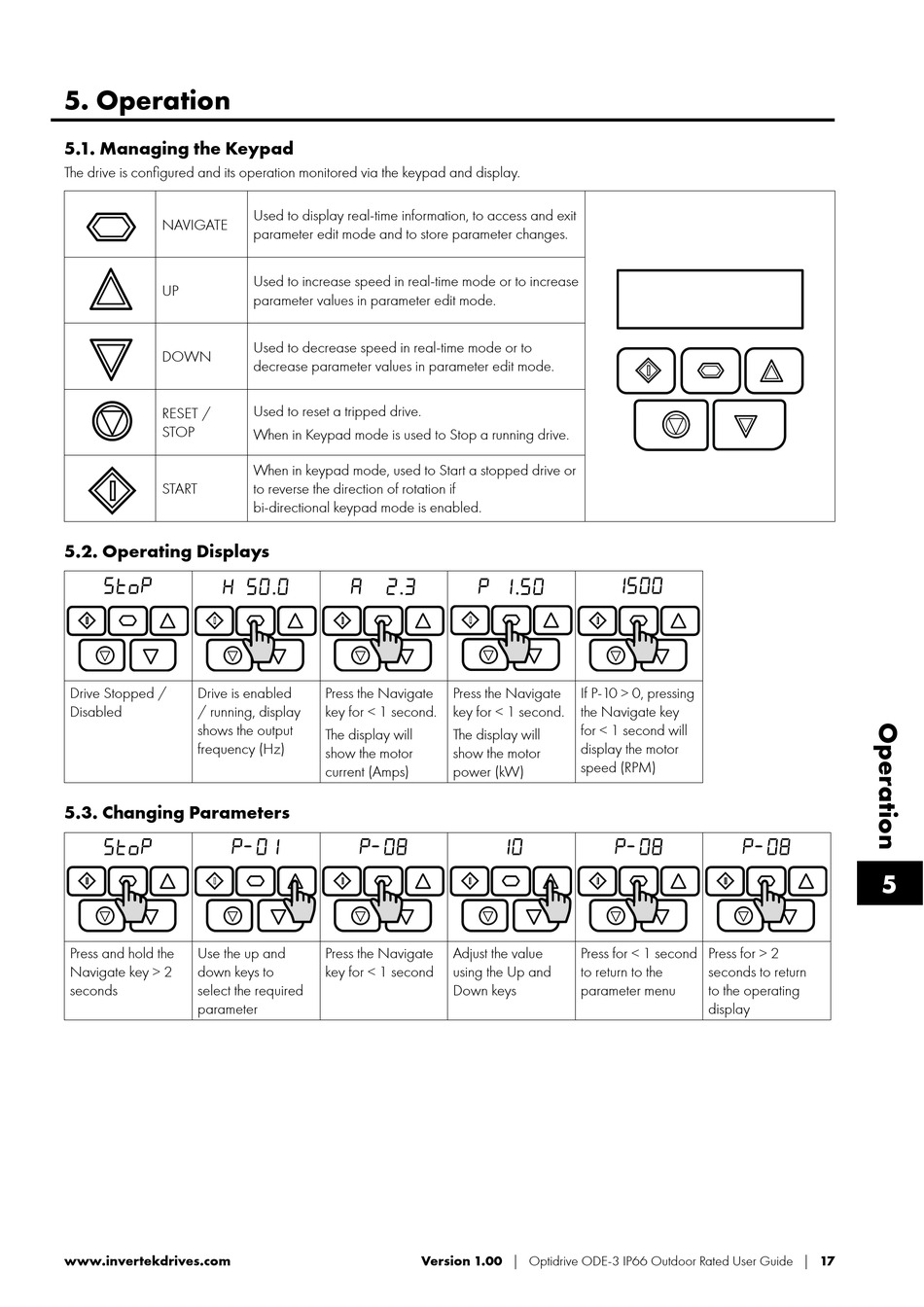

5. Operation
5.1. Managing the Keypad
The drive is configured and its operation monitored via the keypad and display.
NAVIGATE
UP
DOWN
RESET /
STOP
START
5.2. Operating Displays
Drive Stopped /
Drive is enabled
Disabled
/ running, display
shows the output
frequency (Hz)
5.3. Changing Parameters
Press and hold the
Use the up and
Navigate key > 2
down keys to
seconds
select the required
parameter
www.invertekdrives.com
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes.
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode.
Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode.
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive or
to reverse the direction of rotation if
bi-directional keypad mode is enabled.
Press the Navigate
key for < 1 second.
The display will
show the motor
current (Amps)
Press the Navigate
key for < 1 second
Version 1.00 | Optidrive ODE-3 IP66 Outdoor Rated User Guide | 17
Press the Navigate
If P-10 > 0, pressing
key for < 1 second.
the Navigate key
for < 1 second will
The display will
display the motor
show the motor
speed (RPM)
power (kW)
Adjust the value
Press for < 1 second
using the Up and
to return to the
Down keys
parameter menu
5
Press for > 2
seconds to return
to the operating
display
