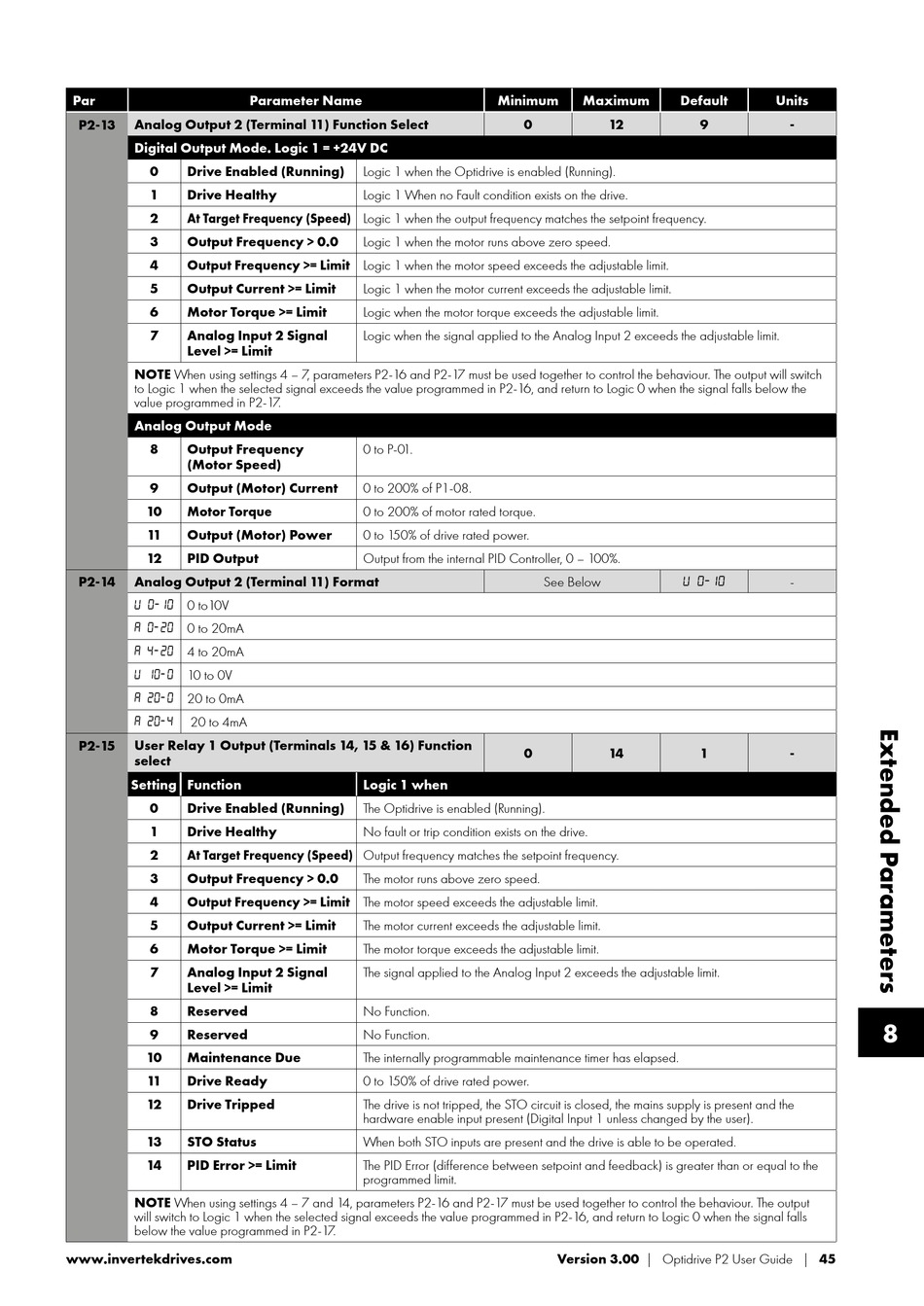

Invertek Drives Optidrive ODP-2 User Manual page 45

Par
P2-13 Analog Output 2 (Terminal 11) Function Select
Digital Output Mode. Logic 1 = +24V DC
0 Drive Enabled (Running)
1 Drive Healthy
2 At Target Frequency (Speed) Logic 1 when the output frequency matches the setpoint frequency.
3 Output Frequency > 0.0
4 Output Frequency >= Limit Logic 1 when the motor speed exceeds the adjustable limit.
5 Output Current >= Limit
6 Motor Torque >= Limit
7 Analog Input 2 Signal
Level >= Limit
NOTE When using settings 4 – 7, parameters P2-16 and P2-17 must be used together to control the behaviour. The output will switch
to Logic 1 when the selected signal exceeds the value programmed in P2-16, and return to Logic 0 when the signal falls below the
value programmed in P2-17.
Analog Output Mode
8 Output Frequency
(Motor Speed)
9 Output (Motor) Current
10 Motor Torque
11 Output (Motor) Power
12 PID Output
P2-14 Analog Output 2 (Terminal 11) Format
  0 to10V
  0 to 20mA
  4 to 20mA
  10 to 0V
  20 to 0mA
  20 to 4mA
P2-15 User Relay 1 Output (Terminals 14, 15 & 16) Function
select
Setting Function
0 Drive Enabled (Running)
1 Drive Healthy
2 At Target Frequency (Speed) Output frequency matches the setpoint frequency.
3 Output Frequency > 0.0
4 Output Frequency >= Limit The motor speed exceeds the adjustable limit.
5 Output Current >= Limit
6 Motor Torque >= Limit
7 Analog Input 2 Signal
Level >= Limit
8 Reserved
9 Reserved
10 Maintenance Due
11 Drive Ready
12 Drive Tripped
13 STO Status
14 PID Error >= Limit
NOTE When using settings 4 – 7 and 14, parameters P2-16 and P2-17 must be used together to control the behaviour. The output
will switch to Logic 1 when the selected signal exceeds the value programmed in P2-16, and return to Logic 0 when the signal falls
below the value programmed in P2-17.
