5. Keypad and Display Operation

The drive is configured and its operation monitored via the keypad and display.

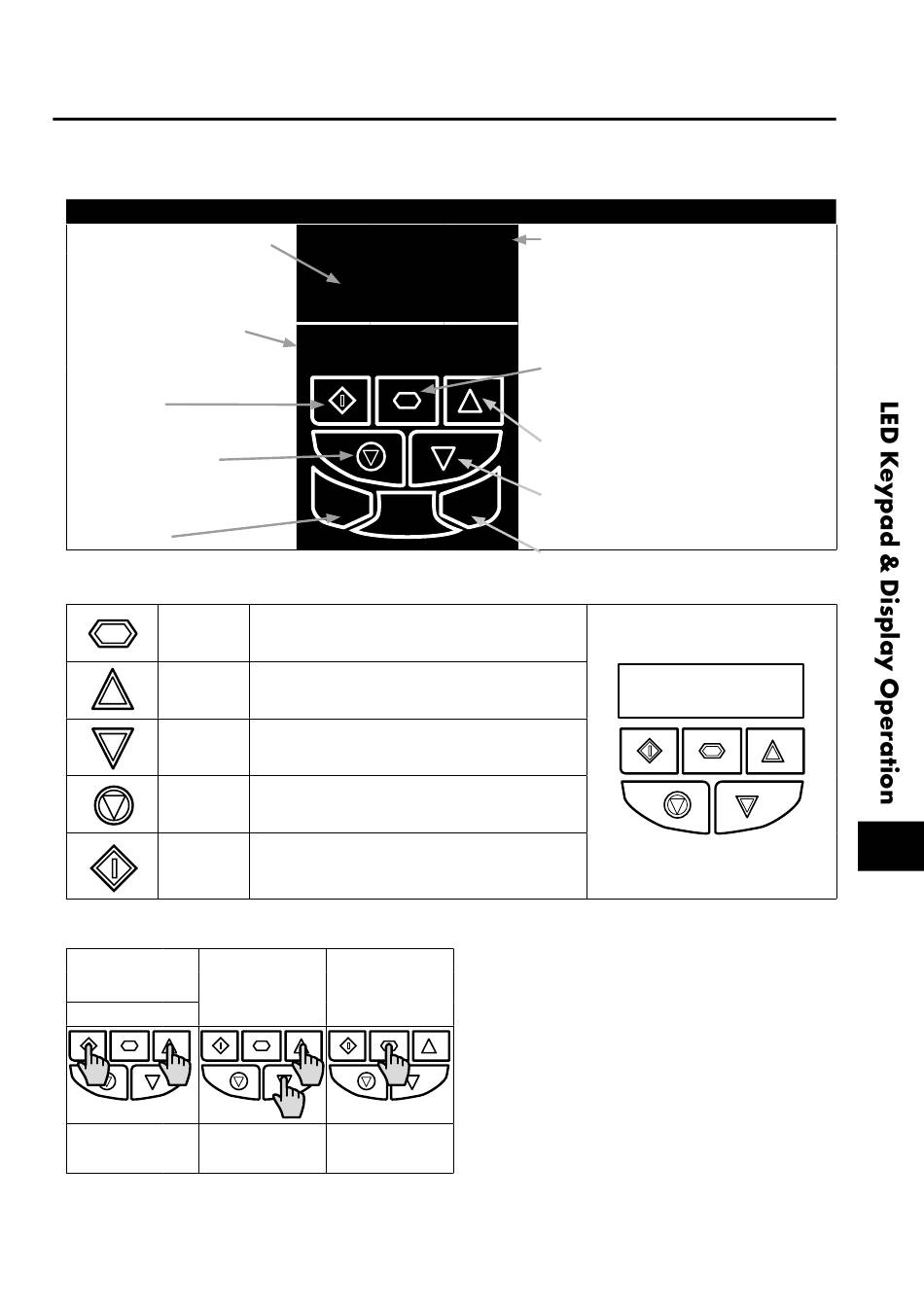

5.1. OLED Keypad and Display Layout
Main Displayed Parameter
Shows which of the selectable
parameters is currently being
shown on the main display, e.g.
Motor Speed, Motor Current etc.
Operating Information
Provides a real time display of
key operating information, e.g.
output current and power
Start Button
When in Hand mode, used to
Start the drive.
Stop / Reset Button
Used to reset a tripped drive.
When in Keypad mode, used to
Stop the drive.
5.2. LED Keypad and Display Layout
NAVIGATE
UP
DOWN
RESET /
STOP
START
5.3. Selecting the Language on the OLED Display
P2 01 Select Language
STOP
Español
Deutsch
15kW 400V 3Ph
English
Hold down the Start Use the Up and Down
and Up keys for >1s arrows to select a
language.
www.invertekdrives.com
OLED Display
P2
STOP
37kW 400V
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes.
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode.
Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode.
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive
or to reverse the direction of rotation if bi-directional
keypad mode is enabled.
Select Language
Español
Deutsch
English
Press the Navigate
button to select.
01
Drive Address
Drive serial communication address set in
parameter P5-01.
Control Keypad
Provides access to the drive parameters, and
also allows control of the drive when Hand
3Ph
operation is selected.
Navigate Button
Used to display real-time information, to access
and exit parameter edit mode and to store
parameter changes.
Up Button
Used to increase speed in real-time mode or to
increase parameter values in parameter edit mode.
Down Button
Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode.
Version 3.00 | Optidrive P2 User Guide | 31
