2.2.3 PRODIGY I Peripheral Configuration Block Diagrams

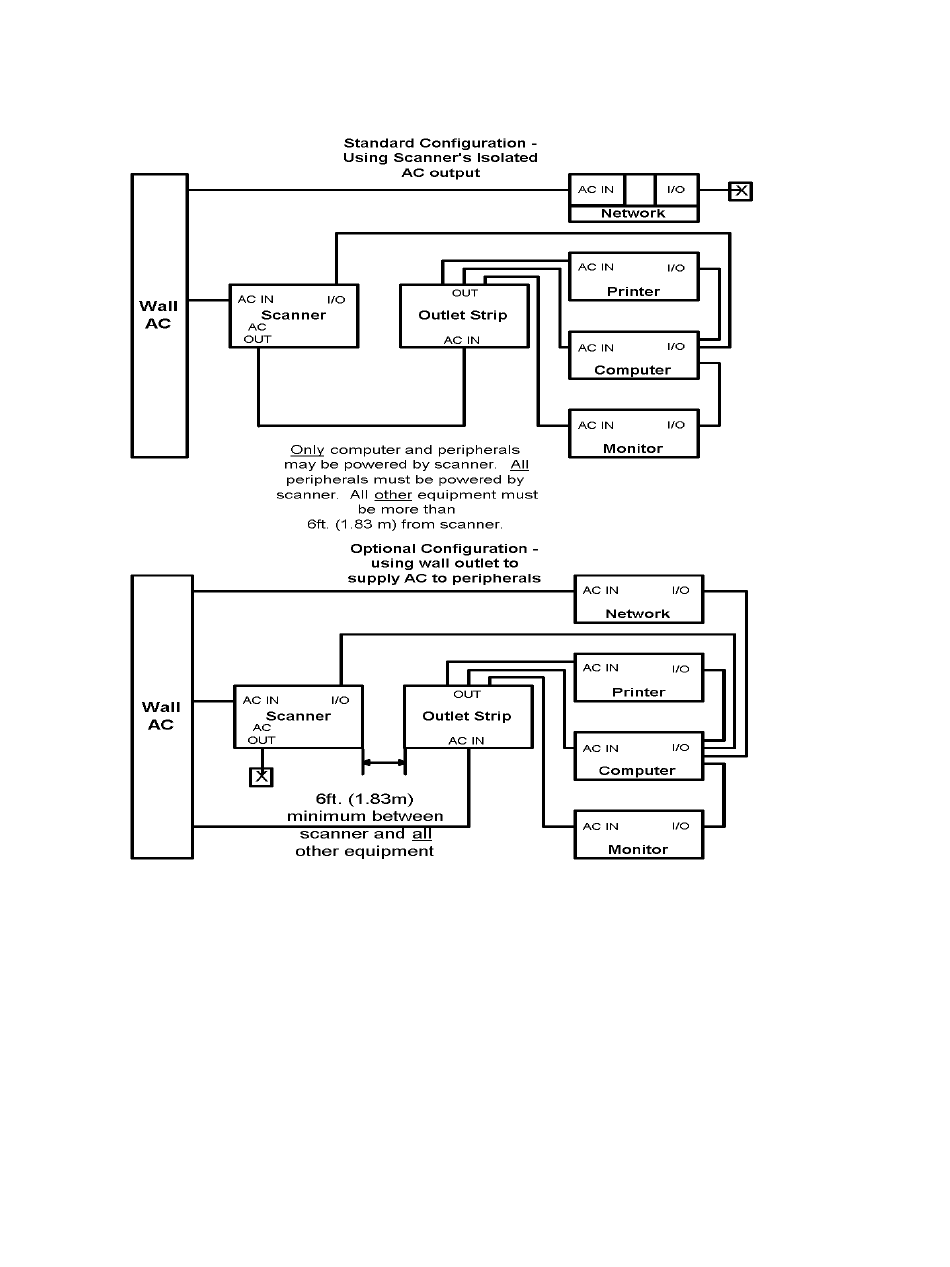

Figure 2-13. PRODIGY I (Systems DF+11999 and lower) Peripheral
Configuration Block Diagrams
This document contains confidential or proprietary information of GE-Lunar Corp. Neither the document nor the information therein is
to be reproduced, distributed, used or disclosed, either in whole or in part, except as specifically authorized by GE-Lunar Corp.
2-40 System Overview
