2.2.2 PRODIGY System Block Diagram PRODIGY I System Block

Diagram

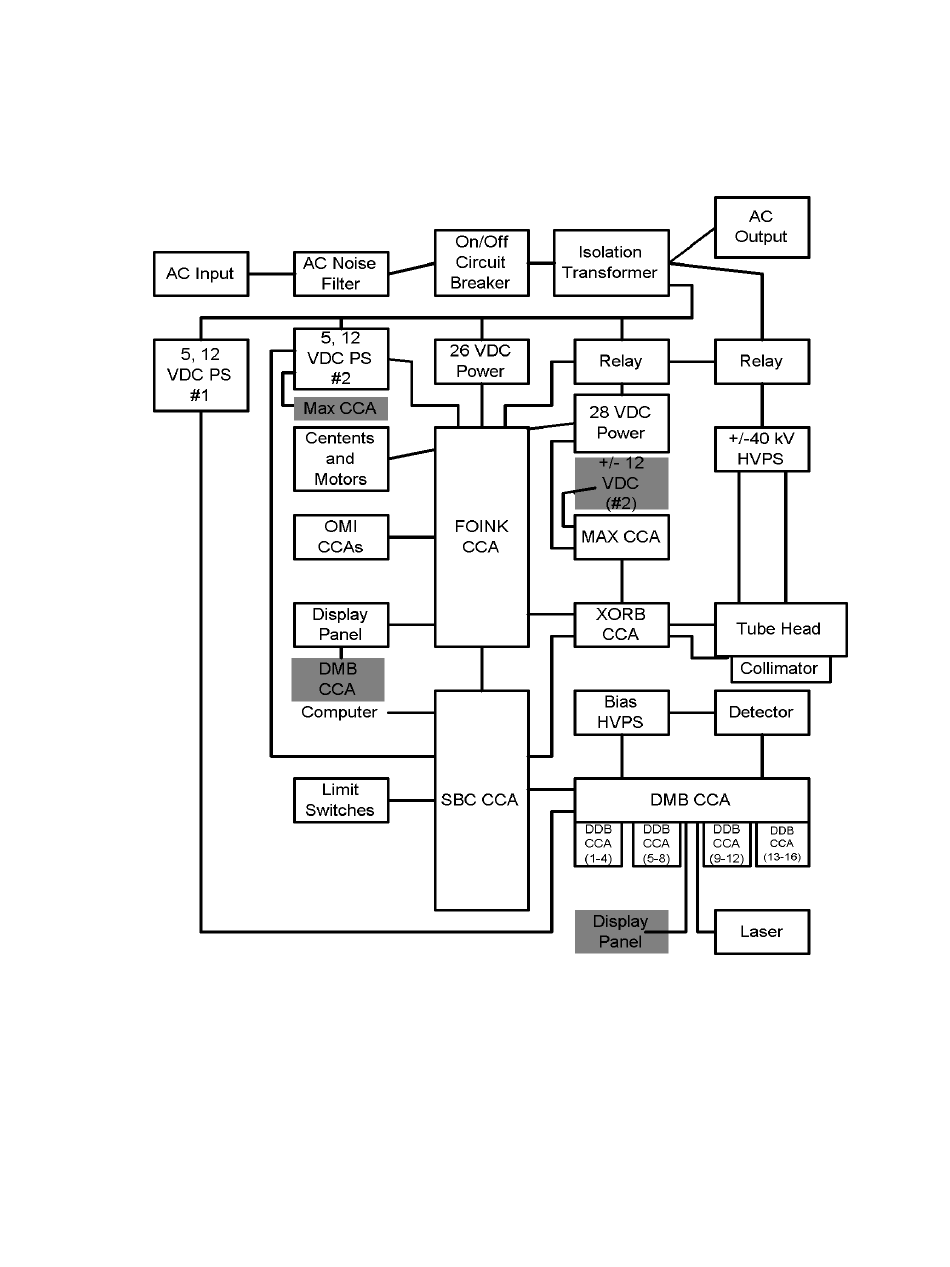

Figure 2-12. PRODIGY I (systems DF+11999 and lower) Block Diagram
This document contains confidential or proprietary information of GE-Lunar Corp. Neither the document nor the information therein is
to be reproduced, distributed, used or disclosed, either in whole or in part, except as specifically authorized by GE-Lunar Corp.
System Overview 2-39
PRODIGY Service Manual (Rev C - 2000)
