9.Feed the new cable, military connector first, through the black sleeving on
the high voltage cable bundle starting near the bulkhead. The sleeving can be
expanded by pushing two parts of it together to better fit the connector
through.
10.Once the cable is through the sleeving, connect it to the tube head and
connect the ground wire (see figures 1 and 2). Position the cables next to the
high voltage cable bracket as in figure 1. The collimator control cable should
come out of the cable bundle between the two high voltage cables toward the
back of the scanner. Tape the cables together for several inches with three
layers of electrical tape starting as close to the bracket as possible. Continue
to spiral the tape around the cables as it was originally and finish by taping
three layers for several inches near the bulkhead. Tape the sleeving near the
bulkhead as it was originally. Pull the sleeving tight along the bundle and tape
near the tube head. Wire tie the cables to the tube head high voltage cable
bracket.

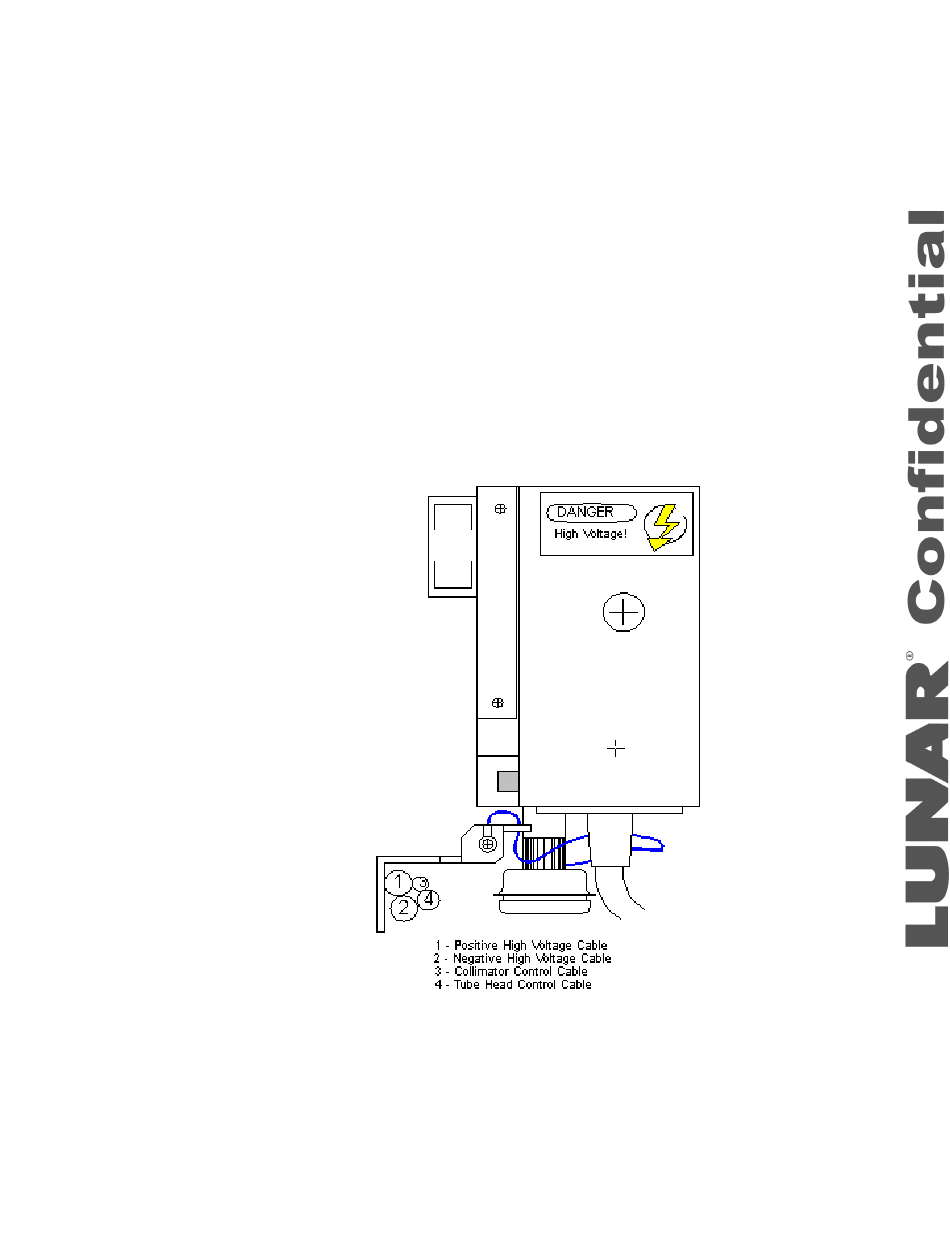

Figure 5-13. Profile Cable Routing Diagram
