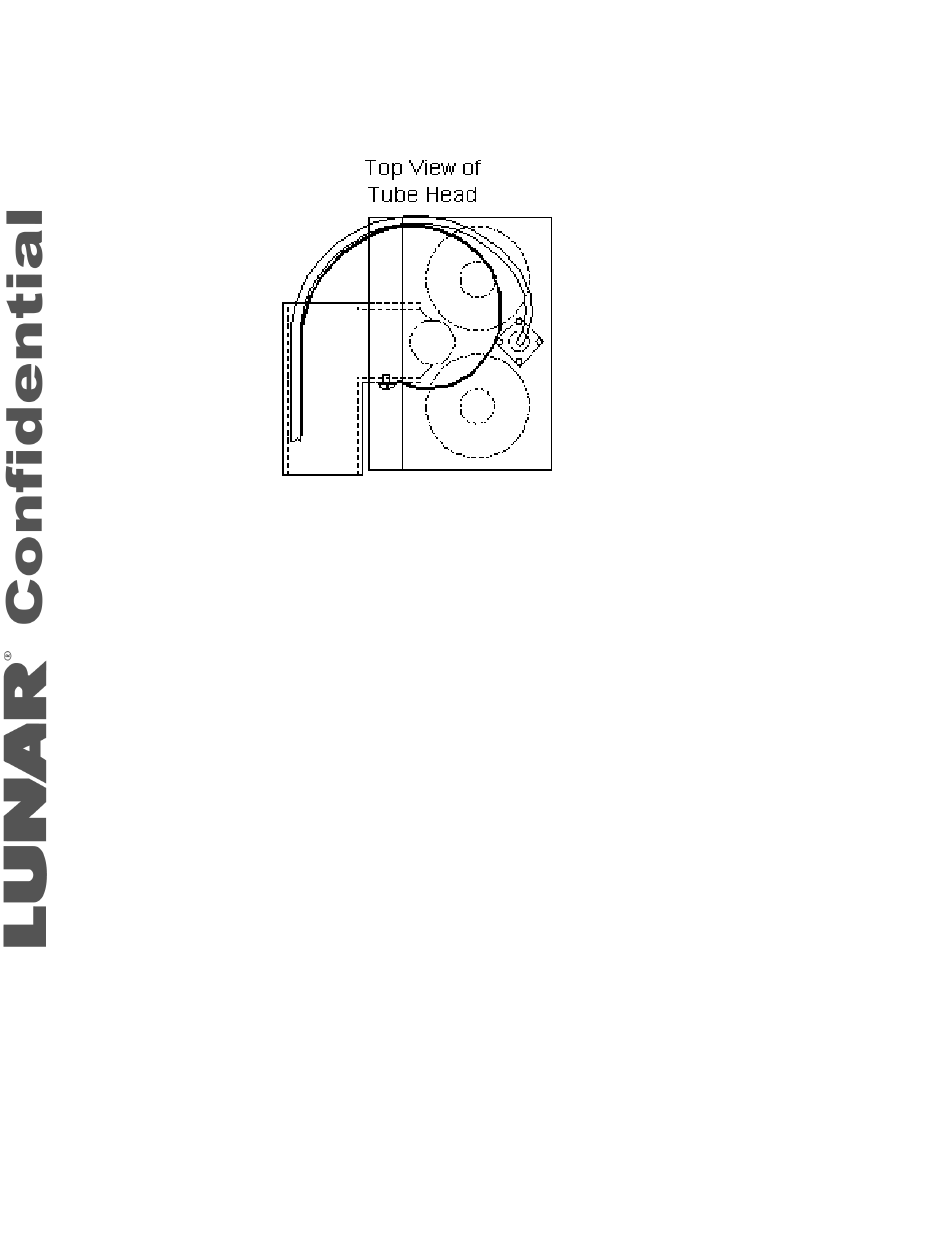

Figure 5-14. Top Down Cable Routing Diagram
11.Lay the control cable in the cable track in the same position as the original
one. Start replacing wire ties between the bulkhead and the tube head. Before
tightening the wire ties assure that there is proper clearance and no stress is
applied at any of the connectors or wires through the entire range of motion.
Tighten the center cable ties first (two large wire ties put together and located
at the center of the high voltage cable trough). Be sure the high voltage cable
bundle does not hit the front panel when the tube head is all the way toward
the front of the scanner. Make sure the high voltage cables do not hang into
the cut out space on the high voltage cable trough. Tighten the three wire ties
near the bulkhead.
12.Replace the clips to the cable track and reattach the track to the scanner
frame.
13.Move the arm to the foot end of the scan table. Check that the lower cable
bundle and the high voltage cable bundle have some slack where the cables
enter the cable track near the bulkhead. Check that the cable track has at
least 1/8" clearance of the frame. To adjust this, slide the track in its trough,
then tighten the screw that holds the track in place. Move the arm up and
down the table to verify that the cable track moves properly.
14.Reconnect the A/C power cord, and replace the table top and end panels.
15.Perform required tests as prescribed in section 6.9 of the Prodigy Service
Manual.
