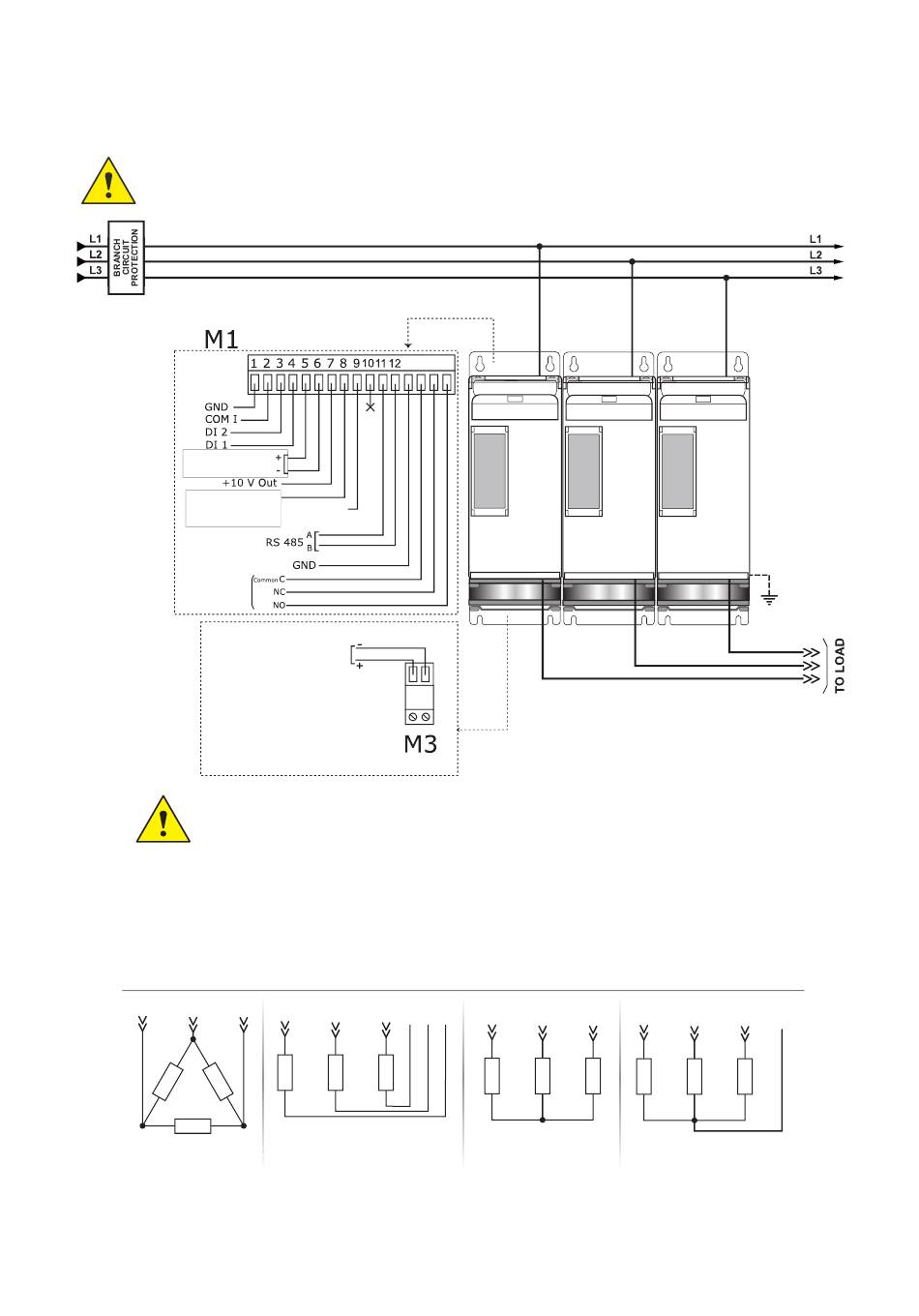

8.5 Connection Diagram for 3 phases

Caution: this procedure must be performed only by qualified persons.
1*
Analog Inp.1
0-10VDC /4-20mA
ANALOG SET POINT
Analog Inp.2
0-10VDC /4-20mA
Reference
Ext.Feedback
Relay
Thermal or
SC/HB
Warning: It is not possible to remove the M3 connector when the unit is powered.
Remove the AUX 24Vdc power supply before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply connected to
the M3 terminal could damage the unit
* 1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
T1 T2
Delta
All manuals and user guides at all-guides.com
131415 16
SLAVE OUT
AUX
+ -
24Vdc
T3
T1 T2 T3
L1 L3 L2
Open Delta
L1
T1
Load Type
T1 T2 T3
Star
25
User's manual
L2 L3
T2
T3
T1 T2 T3 N
Star + Neutral
