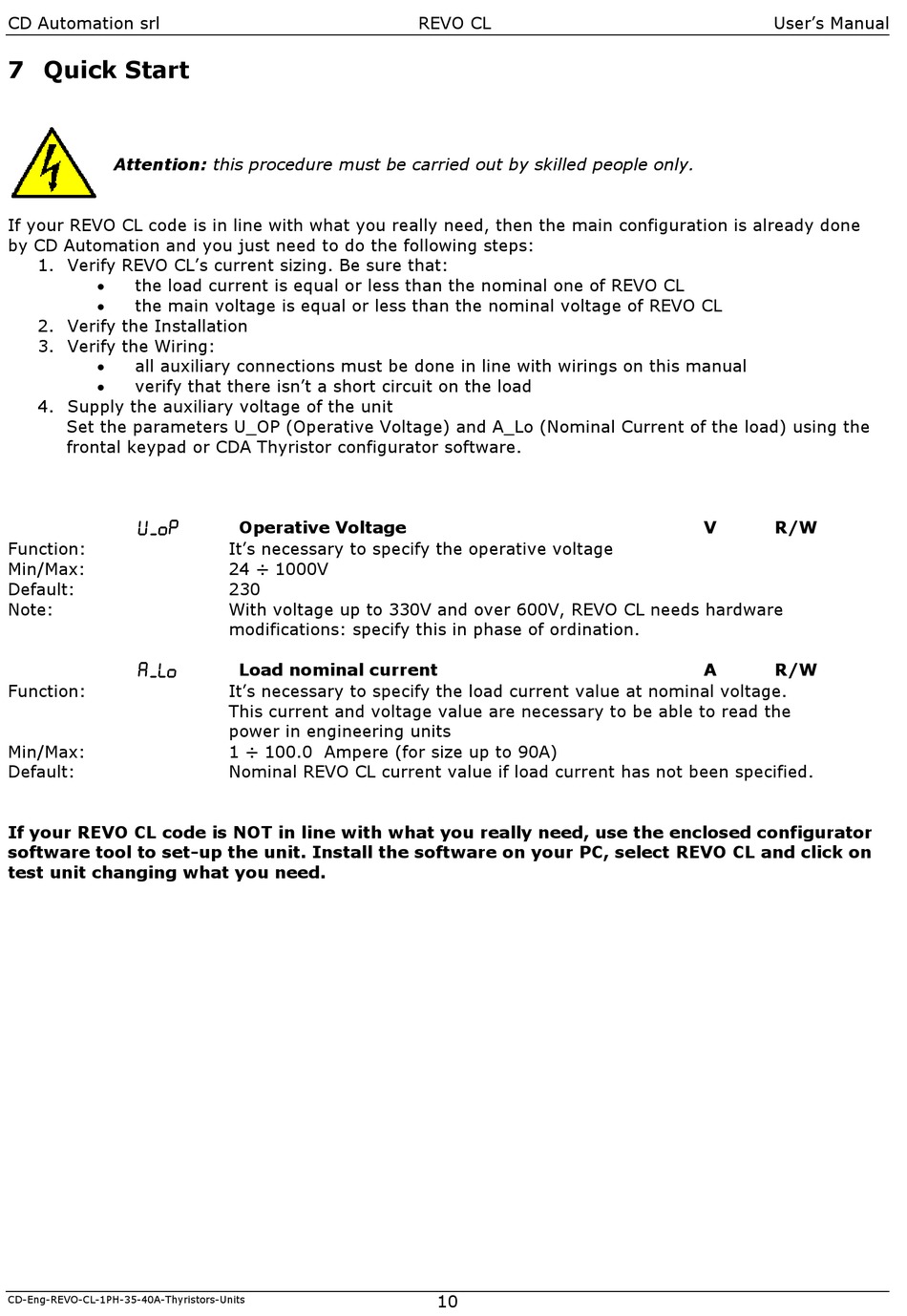

7 Quick Start

Attention: this procedure must be carried out by skilled people only.
If your REVO CL code is in line with what you really need, then the main configuration is already done
by CD Automation and you just need to do the following steps:
1. Verify REVO CL's current sizing. Be sure that:
 the load current is equal or less than the nominal one of REVO CL
 the main voltage is equal or less than the nominal voltage of REVO CL
2. Verify the Installation
3. Verify the Wiring:
 all auxiliary connections must be done in line with wirings on this manual
 verify that there isn't a short circuit on the load
4. Supply the auxiliary voltage of the unit
Set the parameters U_OP (Operative Voltage) and A_Lo (Nominal Current of the load) using the
frontal keypad or CDA Thyristor configurator software.

Function:
Min/Max:
Default:
Note:

Function:
Min/Max:
Default:
If your REVO CL code is NOT in line with what you really need, use the enclosed configurator
software tool to set-up the unit. Install the software on your PC, select REVO CL and click on
test unit changing what you need.
CD-Eng-REVO-CL-1PH-35-40A-Thyristors-Units
Operative Voltage
It's necessary to specify the operative voltage
24 ÷ 1000V
230
With voltage up to 330V and over 600V, REVO CL needs hardware
modifications: specify this in phase of ordination.
Load nominal current
It's necessary to specify the load current value at nominal voltage.
This current and voltage value are necessary to be able to read the
power in engineering units
1 ÷ 100.0 Ampere (for size up to 90A)
Nominal REVO CL current value if load current has not been specified.
REVO CL
10
User's Manual
V R/W
A R/W
