Commissioning
Connecting the heating
line and the temperature
measuring box (option)
70
8 Push the permeate line from outside through the cable gland
into the housing (pos. 2) until the encasing tube protrudes
approx. 2 cm. Then tighten up the cable gland.
9 Push the free hose end (pos. 3) into the connector (pos. 4) up
to the stop.
The following steps are neccessary only, if the permeate line is
equipped with a heating line:
10 Feed the heating line (3 wires / pos. 5 in Fig. 3-9) to the termi-
nal strip from above and connect it there. To lay the cable, use
the free right-hand cable tie on the back panel. The terminal
assignment is shown in the following Fig. 3-10.

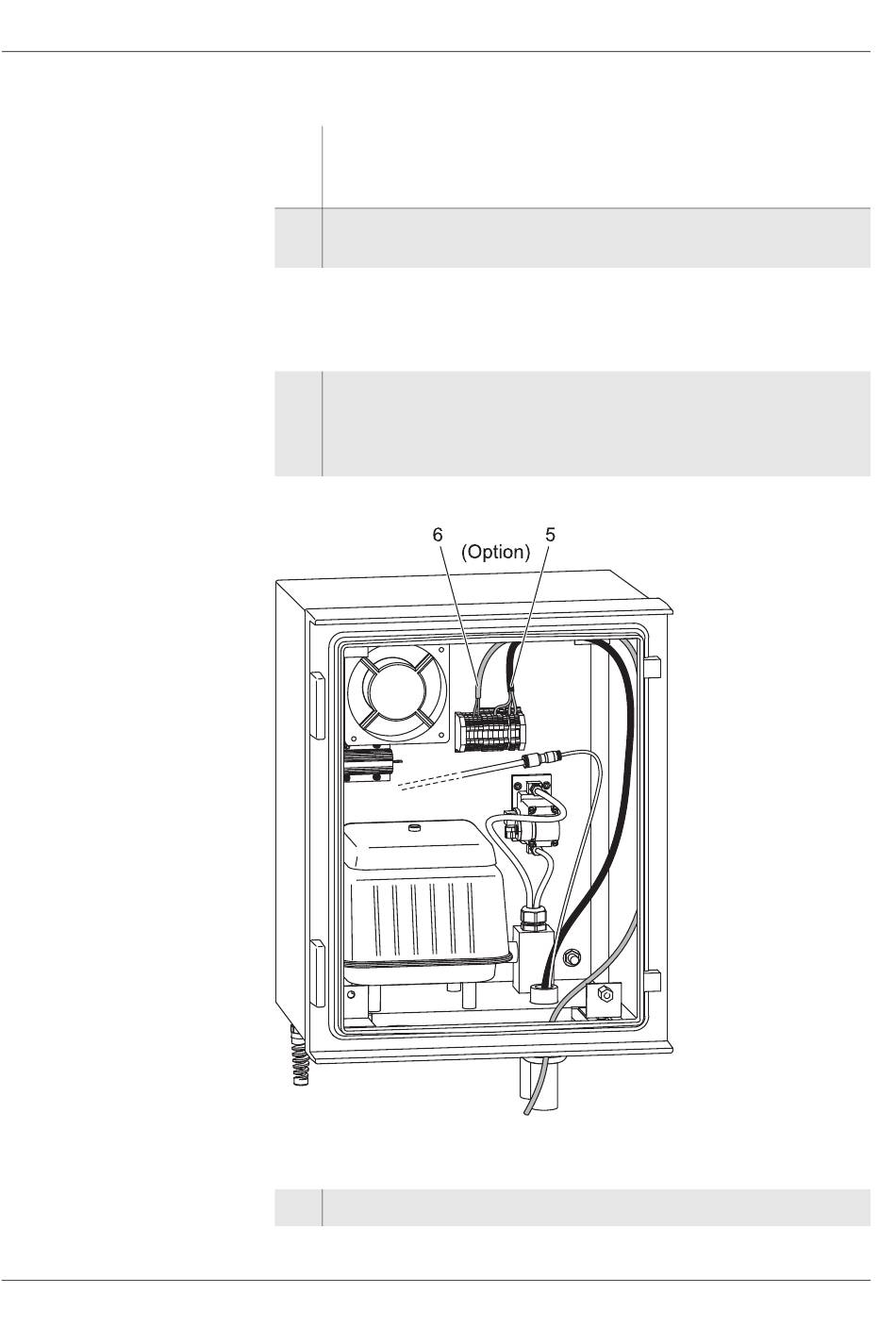

Fig. 3-9 Connecting the heating line and the temperature measuring box
11 Undo the little front cable gland.
