Connecting the terminal
box with the analyzer
Connecting the
permeate suction line
with the control unit
ba43133e06 05/2009
4 Connect the transparent hose end of the permeate hose to the
permeate output of the terminal box
(Fig. 3-7).
5 Connect the black end of the permeate hose to the analyzer
input or to the overflow vessel.
6 Open the control unit as described in section 3.2.2.
WARNING
Touching the electrical lines inside the control unit can result in
danger to life from electric shock. Before opening the operating
panel of the instrument, switch it off at the mains switch and pull
out the mains plug.

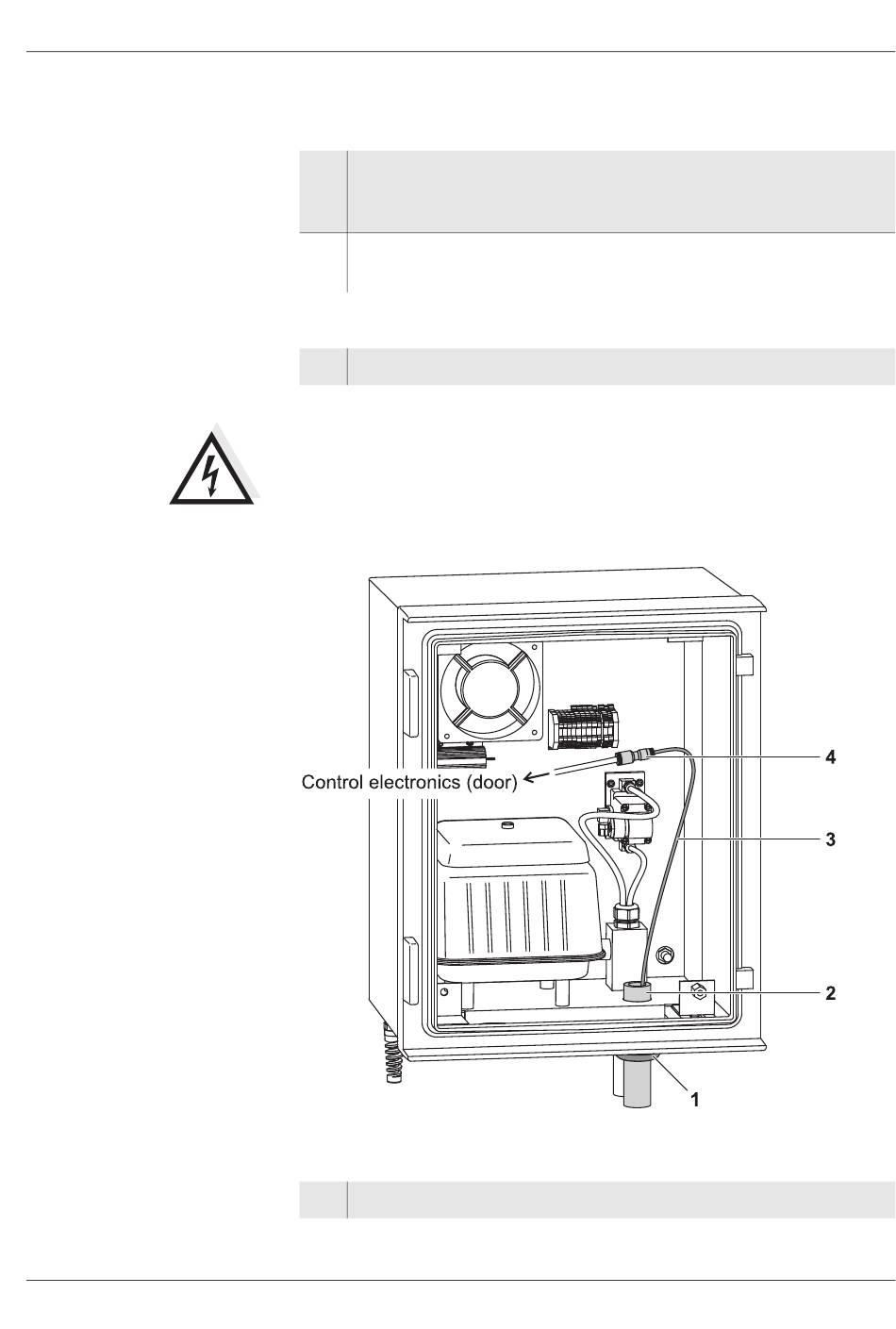

Fig. 3-8 Connecting the permeate suction hose
7 Undo the big front cable gland (pos. 1 in Fig. 3-8).
